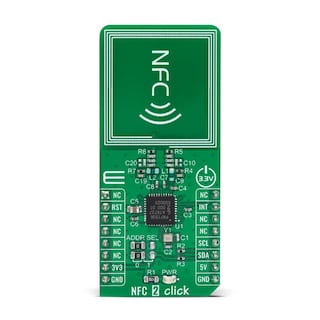

High-Performance NFC Controller with Integrated Firmware for Smart Devices

PN7150 Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

Roll over image to zoom in

Please check the new online NFC Antenna Tool for tag and reader devices.

Optimized for fast design-in, NXP’s PN7150 NFC solutions fully comply with the NFC Forum, including Linux® and Android™ drivers and support NCI 1.0 host communication. Latest supported Android is Android 11. For later newer Android versions, please use PN7160.

PN7150 is the high-performance version of PN7120, the plug’n play NFC solution for easy integration into any OS environment, reducing Bill of Material (BOM) size and cost. PN71xx controllers are ideal for home-automation applications such as gateways and work seamlessly with NFC connected tags.

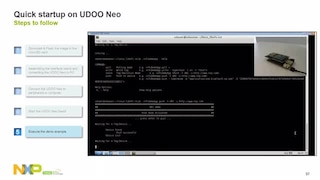

These NFC controllers support the most popular platforms, Raspberry Pi®, BeagleBone® Black and any boards featuring an Arduino® stackable header, including Kinetis®, LPCXpresso and i.MX boards.

PN7150B0HN is ready to support your development today, tomorrow and beyond through its longevity program. The Product Longevity program ensures a stable supply of products for your embedded designs.

Learn more

More

Block Diagram

High performance NFC controller, supporting all NFC Forum modes, with integrated firmware and NCI interface

High performance NFC controller, supporting all NFC Forum modes, with integrated firmware and NCI interface
Get diagram PDF

Features

Full hardware and software compatibility

  • Support for Linux, Android, RTOS and NullOS
  • Interface to Raspberry Pi, BeagleBone Black, and all boards with Arduino®-compatible header

All NFC operating modes

  • Read/Write Mode: ISO/IEC 14443 A and B up to 848 kbit/s, FeliCa at 212 and 424 kbit/s, MIFARE Classic with 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693
  • All peer-to-peer modes
  • Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443 A and B) at 106 kbit/s, NFC Forum T3T (FeliCa, PN7150 only)

Flexible host interface

  • Supply voltage: 1.8 to 3.3 V
  • I²C interface: 3.4 Mbit/s
  • NCI 1.0-compliant protocol
  • IRQ signal for improved synchronization

Complete, power-efficient NFC control

  • RF driver: 3.0 to 4.75 V, 180mA max (PN7150); 2.7 to 3.3 V, 180mA max (PN7120)
  • Implemented according to device requirements v1.3
  • Fully configurable polling loop with low-power mode
  • Load modulation scheme: active (PN7150), passive (PN7120)

Standard packages

  • HVQFN40 (PN7150)
  • VFBGA49 (PN7120)

Key Benefits

  • Seamless integration of NFC into any application, especially those with OS systems
  • Plug-and-play NFC operation with many platforms, including most LPC, QorIQ®, Kinetis and i.MX boards
  • All typical NFC use cases, including pairing, personalization, extended user interface, maintenance, etc
  • Fast deployment of advanced, fully interoperable NFC functionality, with a lower overall cost

More

Buy/Parametrics

1 result

Exclude 1 NRND

Part

Show description

Order

CAD Model

Status

Application Segment

Read distance [TYP] (mm)

Features

Contactless Identification Standard

Host Interface

Host interface protocol

Supply Voltage [Min to Max] (V)

RF driver supply voltage [min-max] (V)

RF driver current [max](mA)

Max output power (W)

Ambient Operating Temperature (Min to Max) (℃)

Package Dimensions (LxWxZ (mm))

Package Type

Package Termination Count

PN7150B0HN
Data Sheet

Not Recommended for New Designs

Broadband Modem and Residential Gateway, Communication Infrastructure, Fitness, Healthcare, Industrial, Major Home Appliances, Mobile, Open and Closed Loop Payments, Printer, Smart City, Smart Home, Tablet, WearableAudio and video conference phone, e-board, gaming, mobile computer

160

NFC reader/writer, P2P, card emulation

ISO 15693, ISO/IEC 14443 Type B, ISO/IEC 18092, ISO/IEC14443 Type A

I2C

NCI

1.65 to 3.6

2.7 - 4.75

180

0.85

-30 to 85

6 x 6 x 0.85

HVQFN40

40
