Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with UTOPIA

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The MPC8323 PowerQUICC^® II Pro is part of the MPC8323E family of cost-effective network communication processors that meet the requirements of multi-protocol control applications. It provides better CPU performance, additional functionality and faster interfaces than current PowerQUICC II processors while addressing important time to market, price, power consumption and board real estate requirements.

QUICC Engine^® Technology
A new single-reduced instruction set computing (RISC) version of the QUICC Engine communications engine forms the heart of the networking capability of the MPC8323. The QUICC Engine block contains several peripheral controllers and a single 32-bit RISC controller. Microcode packages provide support for ATM, network address port translation (NAPT), firewall, IPsec, and advanced quality of service (QoS). Protocol support is provided by the main workhorses of the device—the unified communication controllers (UCCs). Each of the five UCCs can support a variety of communication protocols:

Up to three 10/100 Mbps Ethernet
Asynchronous transfer mode (ATM) support up to OC-3 speeds
Serial ATM
Up to 31 multi-physical layer (PHY) ATM
High-level data link control (HDLC)
Up to four time division multiplexing (TDM)
Binary synchronous communications protocol (BISYNC)
UCC can also support USB 2.0 (full/low-speed)

Data Sheet

Reference Manual

Product Details

Block Diagram

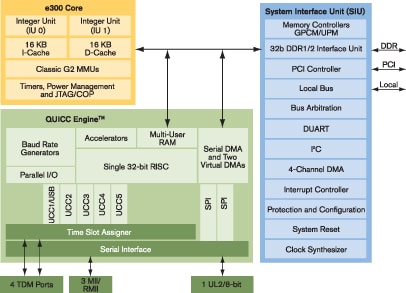

MPC8323 Block Diagram

Get diagram PDF

Features

Core: e300c2
CPU speed: up to 333 MHz
L1 cache: 16 KB I/D
Integer units: two
QUICC Engine^® RISC units: one
QUICC Engine frequency: up to 200 MHz
Memory controller: 32-bit 266 MHz DDR1/DDR2
Local bus: 16-bit up to 66 MHz
PCI: 32-bit up to 66 MHz
Ethernet: up to 3 - 10/100
USB: 2.0 FS/LS
Security: sec 2.2 (MPC8323E and MPC8321E only)
UART: two
I²C: single
UTOPIA I/F (8-bit): yes (MPC8323E and MPC8323)
TDM I/F: up to four—32 channels with QMC
QMC support: up to 64 channels at 64 Kbps
Package: 516-PBGA
This product is included in NXP^®.s product longevity program, with assured supply for a minimum of 10 years after launch

Part numbers include: MPC8323CVRADDCA, MPC8323CVRAFDCA, MPC8323VRADDCA.
