MPC830x Processor Evaluation Kit

MPC830xKIT Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

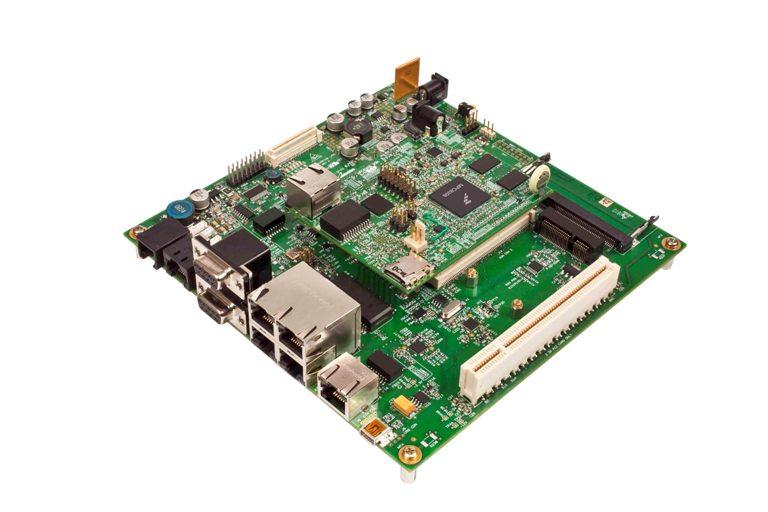

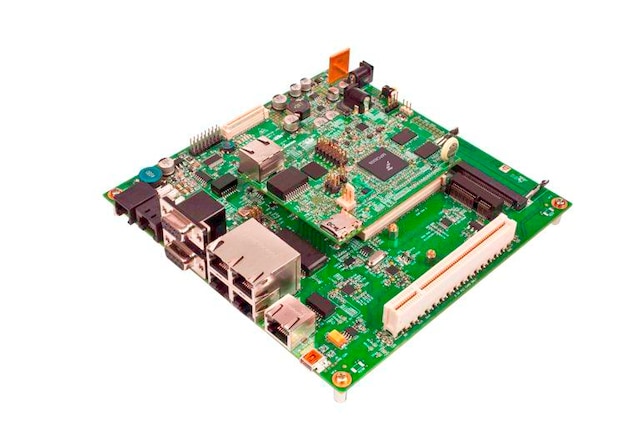

NXP® offers a low-cost evaluation kit (MPC830x-KIT) containing a single carrier card and system-on-modules (SOMs) for each of the MPC830x devices, built on Power Architecture® technology.

  • The MPC830x SOMs are optimal cost reference development boards for the NXP MPC830x processors - the MPC8306, MPC8308 and MPC8309
  • The SOM provides the flexibility to interface other peripherals on-board by using a carrier card

Product Details

Supported Devices

Processors and Microcontrollers

PowerQUICC II Pro (MPC83xx)

  • MPC8306: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, 128-ch. HDLC/TDM, 10/100 Ethernet, USB, IEEE® 1588
  • MPC8308: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, PCI Express, eTSEC, USB, IEEE® 1588
  • MPC8309: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, 128-ch. HDLC/TDM, 10/100 Ethernet, USB, IEEE® 1588

Buy Options

TWR-MPC8306-KIT-Image

Click to expand

  • TWR-MPC8306-KIT
    Active

  • MPC8306 KIT.

    • An MPC8306, MPC8308 or MPC8309 SOM board
    • MPC830X carrier card
    • UART cable
    • Ethernet cable
    • Power adaptor (12V – 5A) and cable
    • User guide
    • Linux® BSP and drivers
    • CD of CodeWarrior tools for Power Architecture technology
MPC830X-TLCD-Image

Click to expand

  • MPC830X-TLCD
    Active

  • LCD Display Module for the TWR-MPC830x System.

  • $113.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
