Integrated ColdFire® V3 Microprocessor

MCF530X | Integrated ColdFire® V3 Microprocessor | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The MCF5307 is a high-performance (70 MIPS), cost-effective, highly integrated microprocessor designed for embedded control applications. The MCF5307 combines a ColdFire^® V3; processor core with a multiply-accumulate (MAC) module, DRAM controller, direct memory access (DMA) controller, timers and parallel and serial interfaces. The time required for system design and implementation is greatly reduced by packaging common system functions on-chip and providing glueless interfaces to 8- 16- and 32-bit DRAM, SRAM, ROM and I/O devices.

Data Sheet

Reference Manual

Product Details

Block Diagram

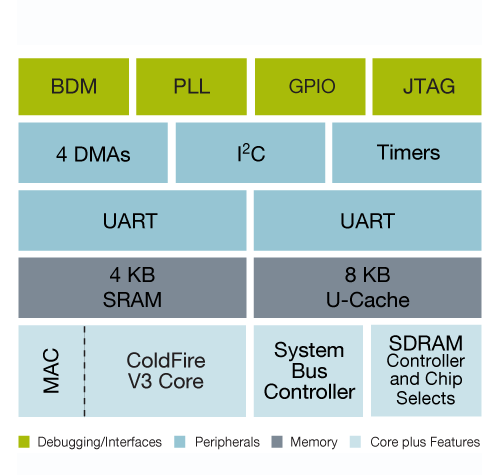

ColdFire MCF530X Microprocessor Block Diagram

Get diagram PDF

Features

ColdFire^® V3 core delivering up to 75 (Dhrystone 2.1) MIPS @ 90 MHz
4 KB SRAM
8 KB unified cache
Integer/fractional MAC unit
Divide unit
System debug interface
DRAM controller
Dual 16-bit general-purpose multimode timers
System debug support
Package 208-pin plastic QFP
Integrated peripherals
- Four-channel DMA controller
- Two universal asynchronous receiver/transmitters (UARTS)
- I²C-compatible bus
- System interface module
- 16-bit general-purpose parallel I/O port
