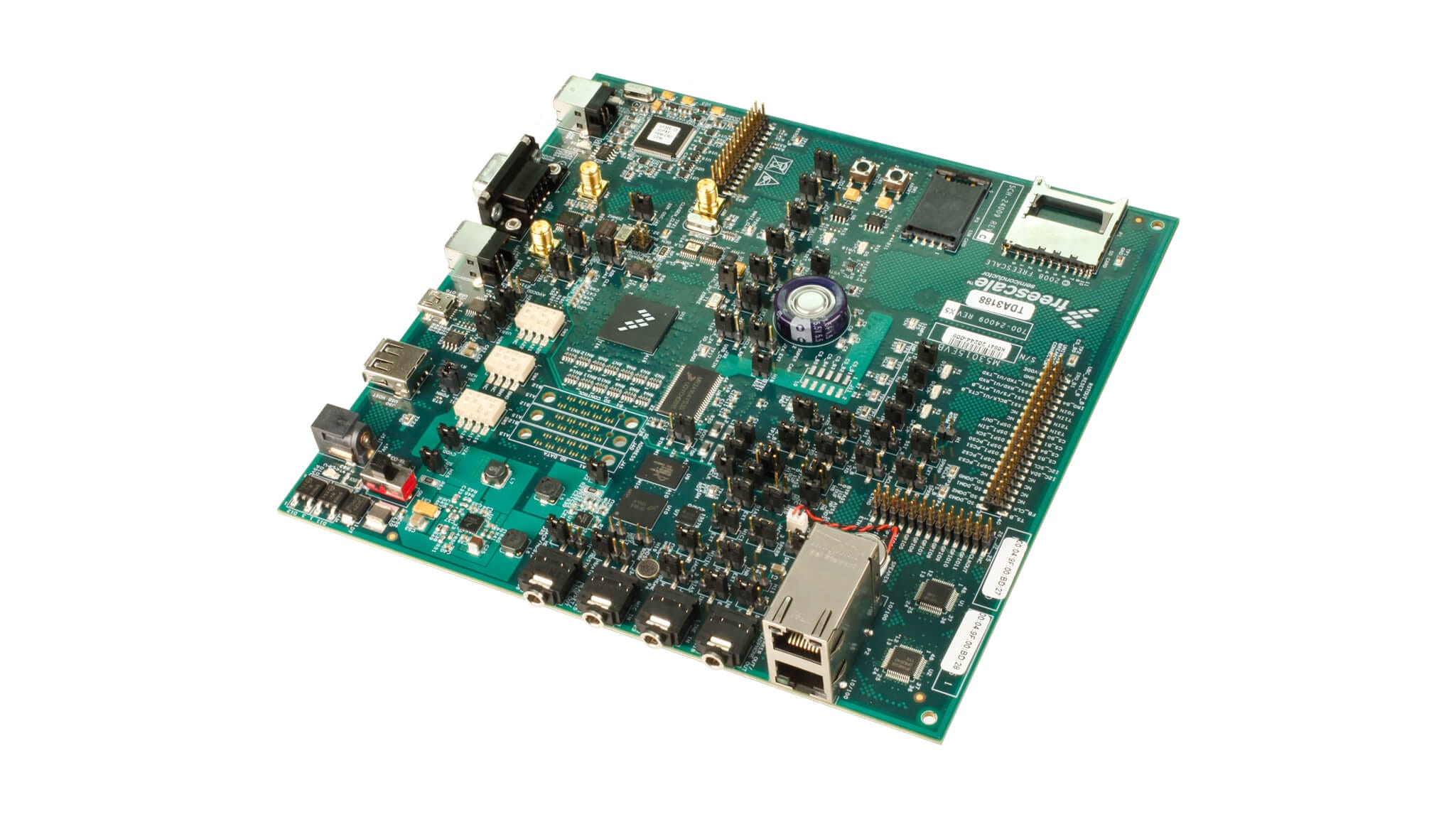

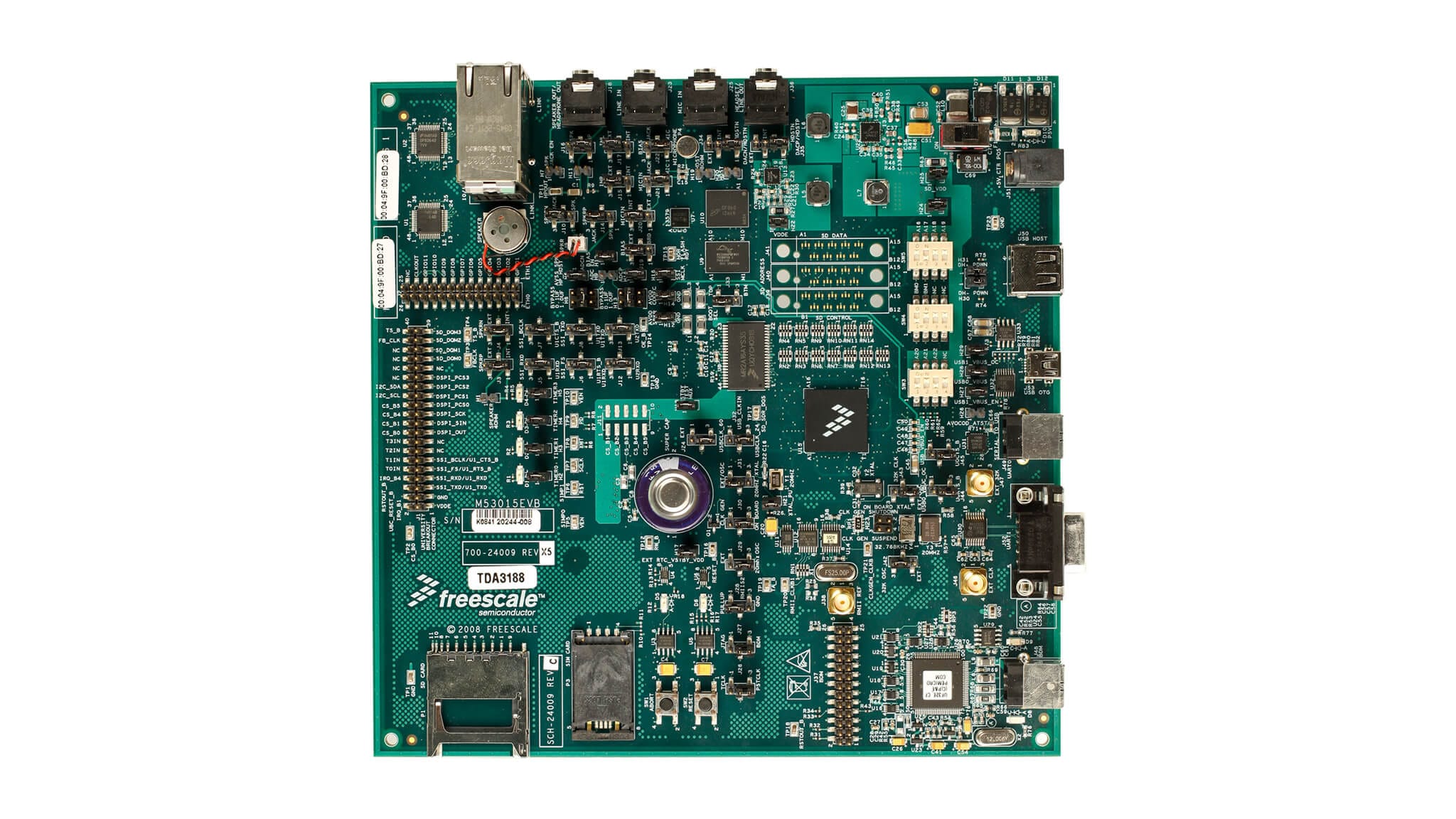

MCF5301x Evaluation Board

M53015EVB

Roll over image to zoom in

An evaluation and development system supporting all peripheral functions and commonly used memory configurations, includes a Linux BSP and a voice command recognition demo. May be used as a reference design or base for end application hardware designs.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V3 Processors

  • MCF5301x: Low-Power MPU with dual Ethernet, USB, and audio sub-system

Features

Memory

  • 16 MB Flash
  • 64 MB mDDR RAM
  • EEPROM
  • 512 KB MRAM

Connectivity

  • Smart Card connector
  • USB interfaces
  • RS-232
  • SD connector (for WiFi or Memory)
  • Dual Ethernet PHY and connectors

Audio

  • Audio interfaces
