The LS1043A processor was NXP's first quad-core, 64-bit Arm^®-based processor for embedded networking. LS1023A (two-core version) and LS1043A (four-core version) deliver greater than 10 Gbps of performance in a flexible I/O package supporting fanless designs. This SoC is a purpose-built solution for small-form-factor networking, industrial and automotive applications with BOM optimizations for economical low layer PCB, lower-cost power supply and single clock design.

The new 0.9V versions of the LS1043A and LS1023A deliver additional power savings for applications such as Wireless LAN and to Power over Ethernet systems. The 23x23 package options allow for pin-compatible design, enabling scaling to the LS1046A (quad A72 processor) or LS1088A (octal A53 core processor).

The LS1043A delivers a performance boost over dual-core Arm 32-bit products and continues the QorIQ legacy of I/O flexibility and integrated QUICC Engine^® for legacy glue-less HDLC, TDM or Profibus support.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

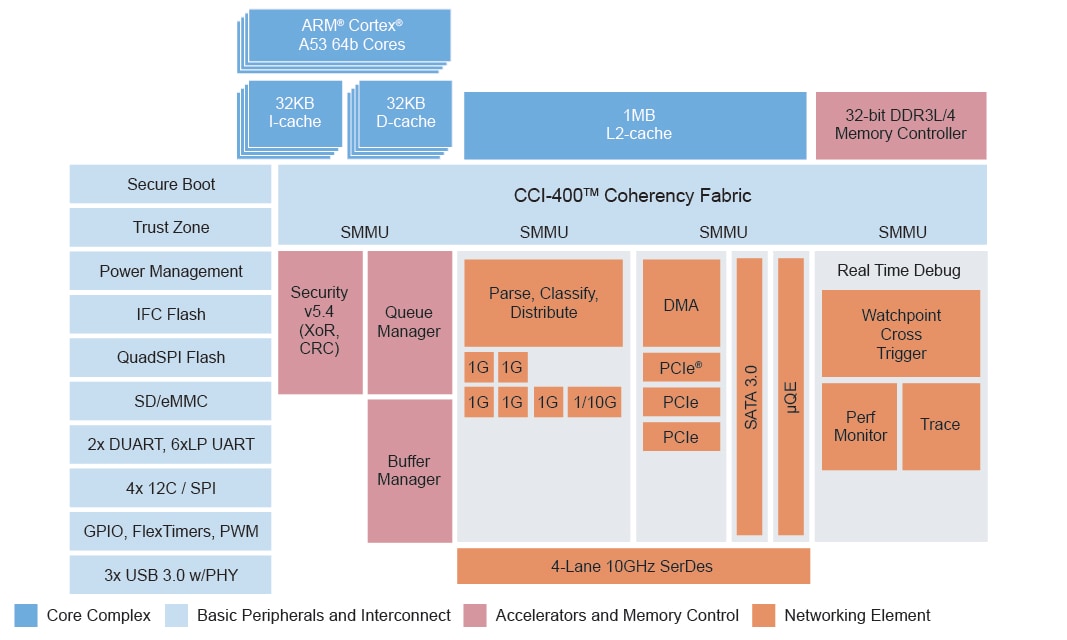

Block Diagram

LS1043A BD

Get diagram PDF

Features

Core Complex

Quad (LS1043A) or Dual (LS1023A) Arm^{^®} Cortex^®-A53 64-bit cores
1 GHz to 1.6 GHz
32/32 I/D Cache KB L1 and 1 MB L2 cache

Networking Elements

Up to seven 1x GbE or 1x 10GbE and five x GbE
Four-lane SerDes up to 10 GHz multiplexed across controllers supporting:
- Three PCI Express^{^®} Gen 2 interfaces
- SATA 3.0 Interface
- uQUICC Engine

Accelerators and Memory Control

DPAA Parse, Classify and Distribution Engines
Integrated security engine
DDR 3L/4

Basic Peripherals and Interconnect

Three USB 3.0 interfaces with PHY
QuadSPI
IFC Flash
Quad I²C
Trust Zone

Additional Features

QorIQ Platform's Trust Architecture
Arm SMMU for hardware-enhanced virtualization
0.9V options for lowest power designs
23x23 package options for pin compatible performance scaling

LS1043A Development Tools

Software
- Application Solution Kit
  - LS1043A Multicore Communications Processor Broadband Home Router Application Solutions Kit
- Software Development Kits
  - Layerscape Software Development Kit
  - Linux^® SDK for QorIQ^® Processors
- Development Software
Hardware
- Reference Designs

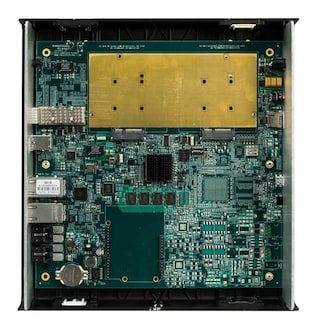

  - LS1043A Residential Gateway Reference Design

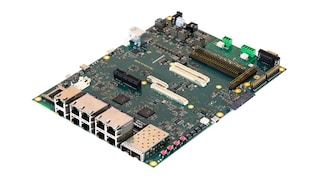

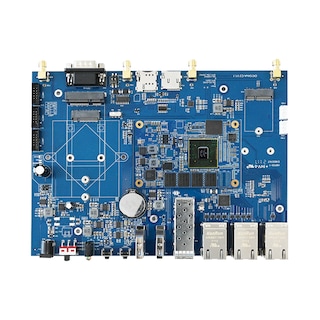

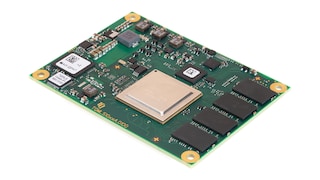

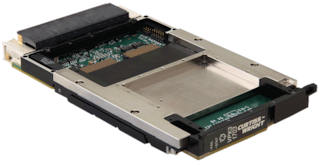

- Development Boards

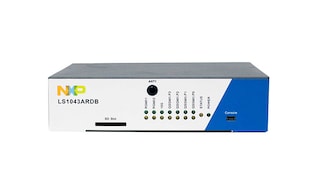

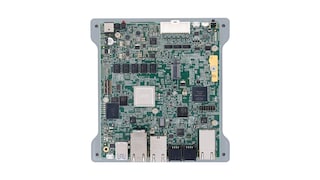

  - LS1043A Reference Design Board
- Emulators/Probes
  - QorIQ LS Processor Probe Tips for CodeWarrior TAP
  - CodeWarrior^® TAP
Support
- Professional Support for Processors and Microcontrollers
- QorIQ^® LS1012A, LS1024A, and LS1043A Processor Support

Buy/Parametrics

Part Show description	Silicon Rev	Family	Status	Development Tools	Qualification tier	Budgetary Price excluding tax	Package Termination Count	Package Type	Package Pitch (mm)	Core Type	Core: Number of cores (SPEC)	Operating Frequency [Max] (MHz)	Typical Power	Cache (KB)	L1 Cache (KB)	L2 Cache (Max) (KB)	SRAM (kB)	External Memory Supported	DRAM frequency (max)(MHz)	GPU 2D / GPU 3D	SPI	QSPI	UART	I²C	USB Controllers	Ethernet Ports	Ethernet Type	PCIe	PCIe version	SATA	Encryption	Watchdog timer	Timers	Debug & Trace	Ambient Operating Temperature (Min to Max) (℃)	Junction Temperature (Min to Max) (℃)
LS1023ABE9MQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Automotive	10K @ US$41.95	780	FBGA780	0.8	Arm Cortex-A53	2	1200	—	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 105	-40 to 125
LS1023ABE9PQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Automotive	10K @ US$44.05	780	FBGA780	0.8	Arm Cortex-A53	2	1400	—	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 105	-40 to 125
LS1023ACE9MQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Automotive	10K @ US$39.96	780	FBGA780	0.8	Arm Cortex-A53	2	1200	—	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 85	-40 to 105
LS1023ACE9PQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Automotive	10K @ US$41.95	780	FBGA780	0.8	Arm Cortex-A53	2	1400	—	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 85	-40 to 105
LS1023ACE9QQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Automotive	10K @ US$43.95	780	FBGA780	0.8	Arm Cortex-A53	2	1600	—	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 85	-40 to 105
LS1023ASE7KNLB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Industrial	100 @ US$43.95	621	FBGA621	0.8	Arm Cortex-A53	2	1000	2.49	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1300	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	—	0 to 105
LS1023ASE7KQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Industrial	100 @ US$39.95	621	FBGA621	0.8	Arm Cortex-A53	2	1000	3.1	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	—	0 to 105
LS1023ASE7MNLB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Industrial	100 @ US$43.95	621	FBGA621	0.8	Arm Cortex-A53	2	1200	2.55	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1300	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	—	0 to 105
LS1023ASE7MQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Industrial	100 @ US$39.95	621	FBGA621	0.8	Arm Cortex-A53	2	1200	3.17	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	—	0 to 105
LS1023ASE7PQB Data Sheet	Rev 1.1	QorIQ LS1023A	Active	LS1043A-RDB	Industrial	100 @ US$42.35	621	FBGA621	0.8	Arm Cortex-A53	2	1400	3.25	32	32	1024	128	DDR3L SDRAM, DDR4 SDRAM	1600	—	1	1	10	4	3	7	10G, 1G, 2.5G	3	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	—	0 to 105
