LS1043A Residential Gateway Reference Design

LS1043A-RGW

Roll over image to zoom in

The LS1043A Residential Gateway Reference Design is a comprehensive OpenWRT-based home router platform that can be leveraged by OEMs/ODMs to significantly shorten their design cycles and reduce time to market without compromising on quality or features. The kit comes with a host of external connectors like 1GbE LAN ports, USB3.0, legacy TDM RJ11 connectors for POTS and an SD Card Slot.

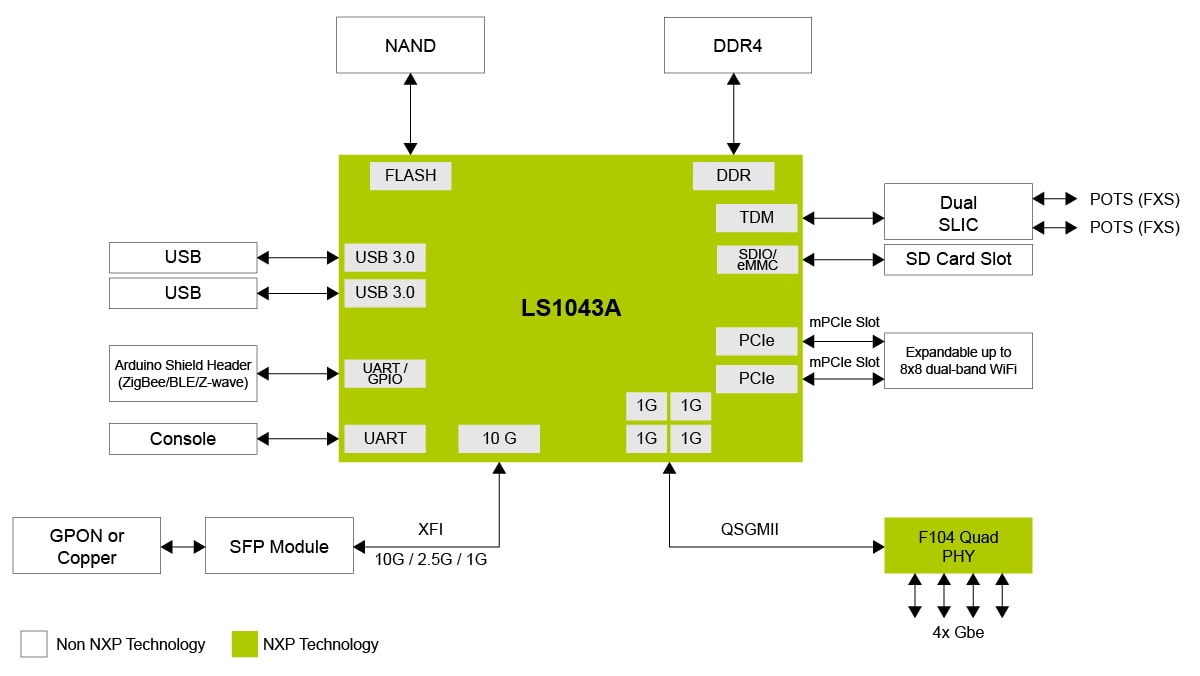

Block Diagram

LS1043A Residential Gateway

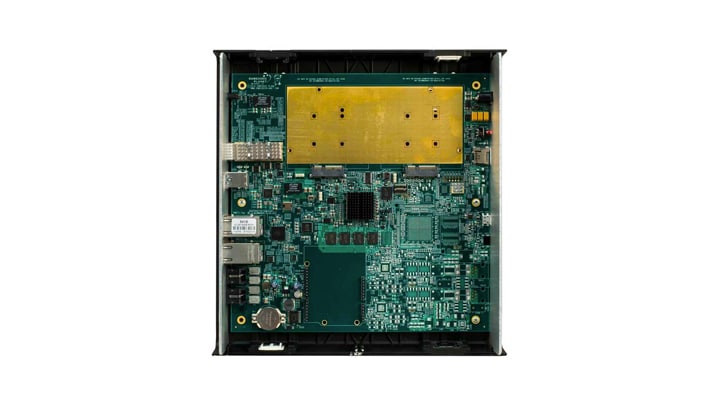

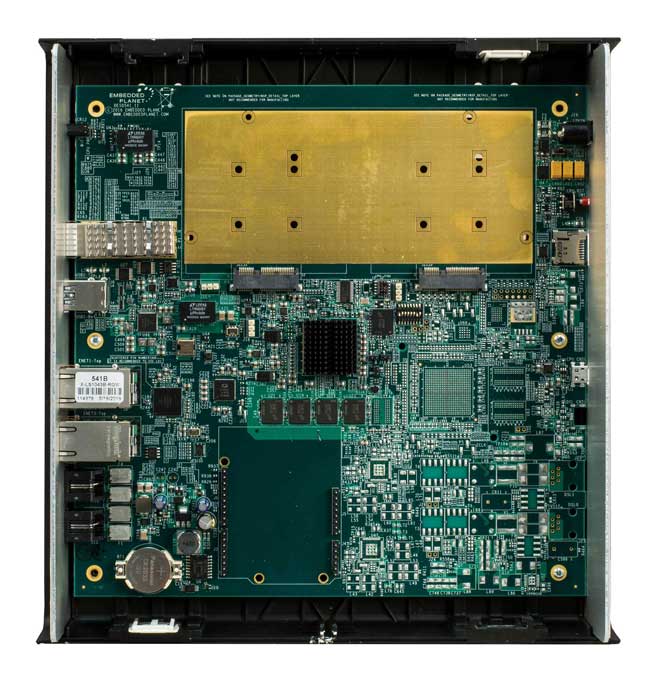

LS1043A Residential Gateway Reference Design Board
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Layerscape Processors

  • LS1043A: Layerscape® 1043A and 1023A Processors

T-Series

  • F104S8A: F104S8A Four-port Gigabit Ethernet Copper PHY

Features

Processor

  • LS1043A quad-core processor based on Arm® Cortex®-A53 at 1.6GHz
  • Hardware packet engine supports 10Gbps performance and offloads CPU for value-added applications

Memory

  • 4 GB DDR4 DRAM
  • 32-bit DDR4 bus up to 1600 MT/s
  • 512 MB NAND Flash

Ethernet

  • SFP+ cage for WAN connection
  • 4 x 1GbE LAN ports

Basic Peripherals and Interconnect

  • 2 x super-speed USB3.0
  • 2 x RJ11 for POTS
  • 1 x micro-USB for console
  • 1 x SD card slot
  • 2 x mini PCIe
  • Arduino® shield header (internal connector)

Additional Features

  • JTAG for debug
  • Plastic enclosure with eight internal polymer-embedded antennas
  • Supports mini-PCIe Wi-Fi modules up to 802.11ac 8x8 plus 802.11n 4x4 (not included)

Buy Options

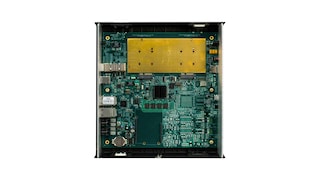

LS1043A-RGW-B-Image

Click to expand

  • For a quantity of 1
Order from distributors
