QorIQ® Qonverge BSC9131 Single-Core Processor and Single-Core DSP
The QorIQ® Qonverge BSC9131 processor is a highly integrated device targeting small cell base station, enterprise VoIP, smart grid control, military/defense and industrial applications.

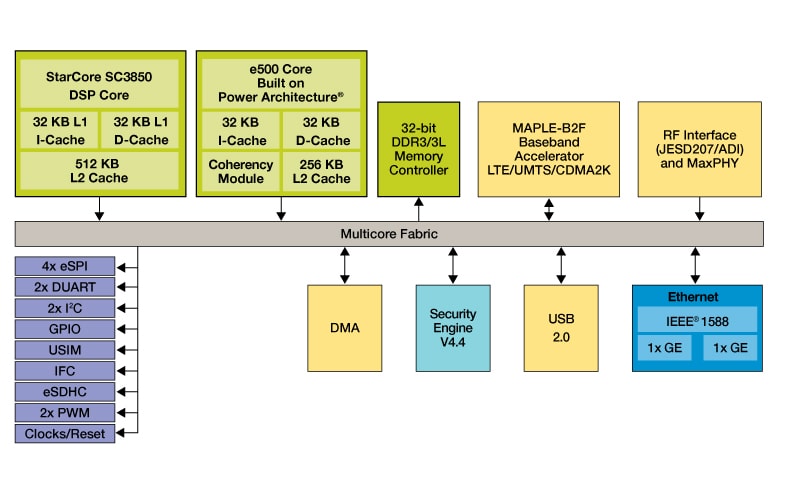

The BSC9131 device combines Power e500 and StarCore® SC3850 core technologies with MAPLE-B2F specialist DSP acceleration processing, addressing the need for a high-performance, low-cost, integrated solution, that handles a broad range of specialist DSP functions with complimentary high-performance general purpose processing.
Product Details
Features
- Power Architecture subsystem including one e500 processor and 256-Kbyte shared L2 cache
- StarCore® SC3850 DSP subsystem including 512-Kbyte private L2 cache
- The MAPLE-B2F multi-accelerator platform engine supports functions that enable LTE-FDD/TDD, WiMAX, WCDMA/HSPA+ and CDMA2K wireless standards, as well as common DSP function acceleration including FFT, DFT and Turbo Viterbi coding
- DDR3 memory interface with 32-bit data width (40 bits including ECC), up to 800-MHz data rate
- Integrated Flash controller for NOR, NAND, and FPGA support
- Trust architecture secure boot
- Integrated security acceleration (SEC)
- Two RF interfaces supporting JESD207 (ADI)
- Support of MaxPhy interface (Maxim)
- Two triple-speed Gigabit-Ethernet controllers featuring network acceleration including IEEE Std 1588v2™ hardware support
- USB 2.0 host and device controller
- DMA controller with four bidirectional channels that serves both the Power Architecture cores and DSP domains
- UART, SPI, eSDHC, USIM, and I2C controllers
- GPIO, Sixteen 32-bit timers
Buy/Parametrics
1-10 of 12 results
Exclude 12 NRND
Part | CAD Model | Status | Package Termination Count | Package Type | Core Type | Core: Number of cores (SPEC) | Operating Frequency [Max] (MHz) | L2 Cache (Max) (KB) | Ethernet Type | Ambient Operating Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|
End of Life | 520 | FBGA520 | SC3850, e500 | 1 | 800 | 256 | 1GBaseT, SGMII | -40 to 105 | ||
End of Life | 520 | FBGA520 | — | — | — | — | — | — | ||
End of Life | 520 | FBGA520 | SC3850, e500 | 1 | 800 | 256 | 1GBaseT, SGMII | -40 to 105 | ||
End of Life | 520 | FBGA520 | SC3850, e500 | 1 | 800 | 256 | 1GBaseT, SGMII | 0 to 105 | ||
End of Life | 520 | FBGA520 | — | — | — | — | — | — | ||
End of Life | 520 | FBGA520 | SC3850, e500 | 1 | 1000 | 256 | 1GBaseT, SGMII | 0 to 105 | ||
End of Life | 520 | FBGA520 | SC3850, e500 | 1 | 1000 | 256 | 1GBaseT, SGMII | 0 to 105 | ||
End of Life | 520 | FBGA520 | — | — | — | — | — | — | ||
End of Life | 520 | FBGA520 | SC3850, e500 | 1 | 1000 | 256 | 1GBaseT, SGMII | -40 to 105 | ||
End of Life | 520 | FBGA520 | — | — | — | — | — | — |
1-10 of 19 documents
Compact List
Application Note (6)
Data Sheet (1)
Fact Sheet (2)
-
QorIQ® Qonverge® BSC9131 - Fact Sheet[QORIQPSC9131FS]Featured
Reference Manual (4)
Supporting Information (2)
User Guide (1)
-
Spectre and Meltdown Updates for Power ISA Cores[SPECTRE-MELTDOWN-POWER-ISA-DOC]
White Paper (3)
Design Resources
Hardware
Quick reference to our
board types.
5 hardware offerings
-

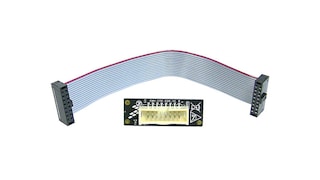

Emulators, Probes, and ProgrammersPower Architecture® processor ( COP ) Probe Tips for CodeWarrior® TAP
Active -
Emulators, Probes, and ProgrammersCodeWarrior® TAP
-
Evaluation and Development Boards13dBm LTE / 3G RF Card Band 7 and 13
-
Additional hardware available. View our featured partner solutions.
-
Evaluation and Development Boards
13dBm LTE/3G RF Card Band 1 and 13
-

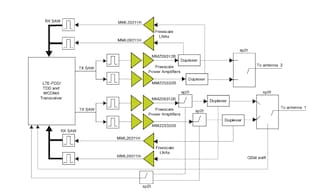

Evaluation and Development BoardsRF Module for BSC913x Boards
