1. Out of the Box
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.
This page will guide you through the process of setting up and using the BATT-14EXTENDER board.
1.1 Kit Contents/Packing List
The BATT-14EXTENDER contents include:
- BATT-14EXTENDER, 14-cell battery pack extender board
- 26-conductor cell terminal cable
- Quick start guide
1.2 Additional Hardware
In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.
- 14-cell battery pack or a battery pack emulator, such as BATT-14CEMULATOR, BATT-14EMULATOR or BATT-14AAAPACK
- External power supply 10 V to 60 V – 0.5 A (optional)
- Up to four BCC evaluation boards (EVBs)
2. Plug It In

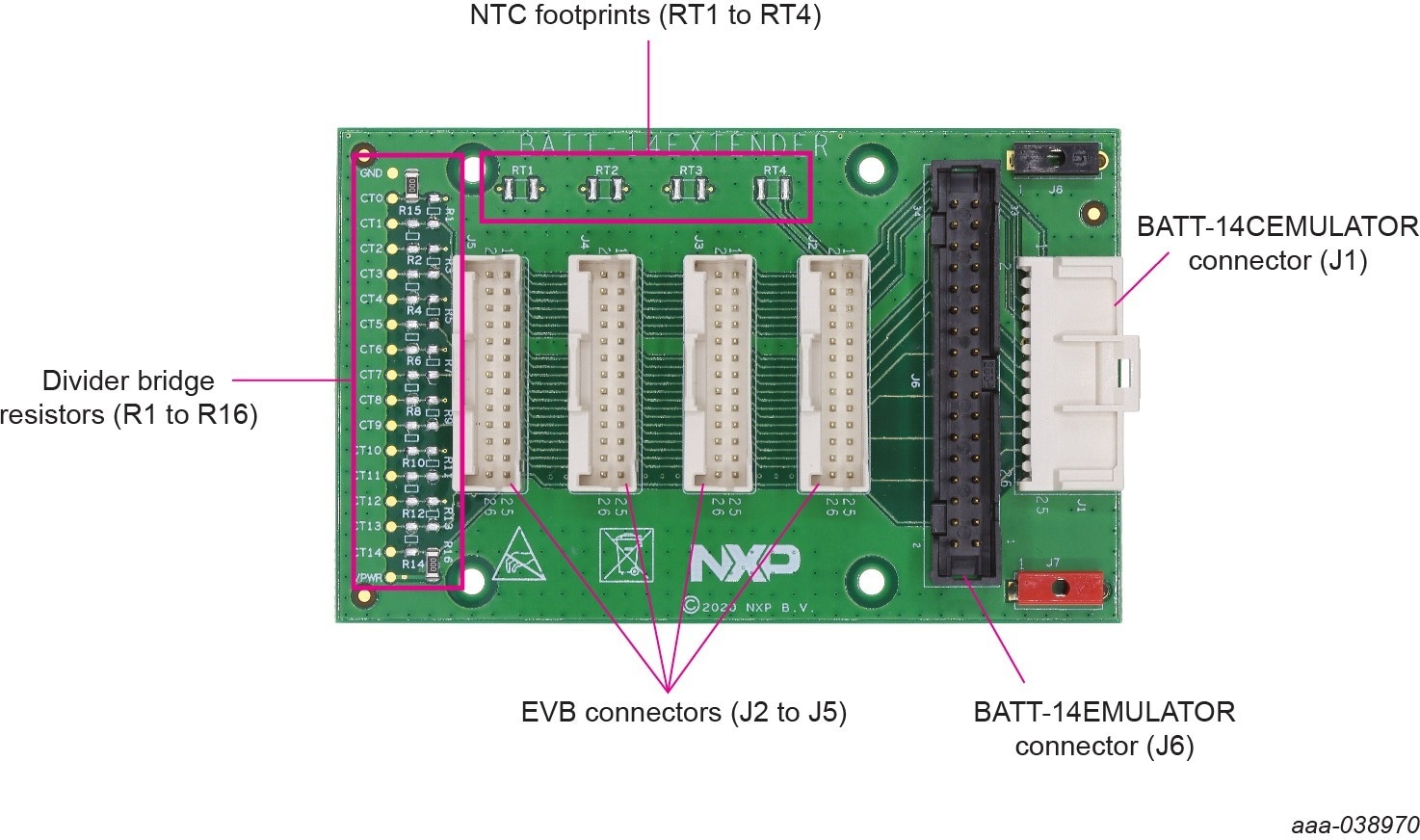

2.1 Board Description
The BATT-14EXTENDER board allows the user to connect up to four evaluation boards to a single battery pack or battery emulator.
There are two options to supply the EVBs:
- Battery or battery emulator such as BATT-14CEMULATOR, BATT-14EMULATOR or BATT-14AAAPACK
- External power supply, provided some additional components are added to BATT-14EXTENDER board
The following evaluation boards are compatible with the BATT-14EXTENDER board:
- RD33771CDSTEVB
- FRDM33771CSPEVB
- RD33775ADSTEVB
3. Configure Hardware

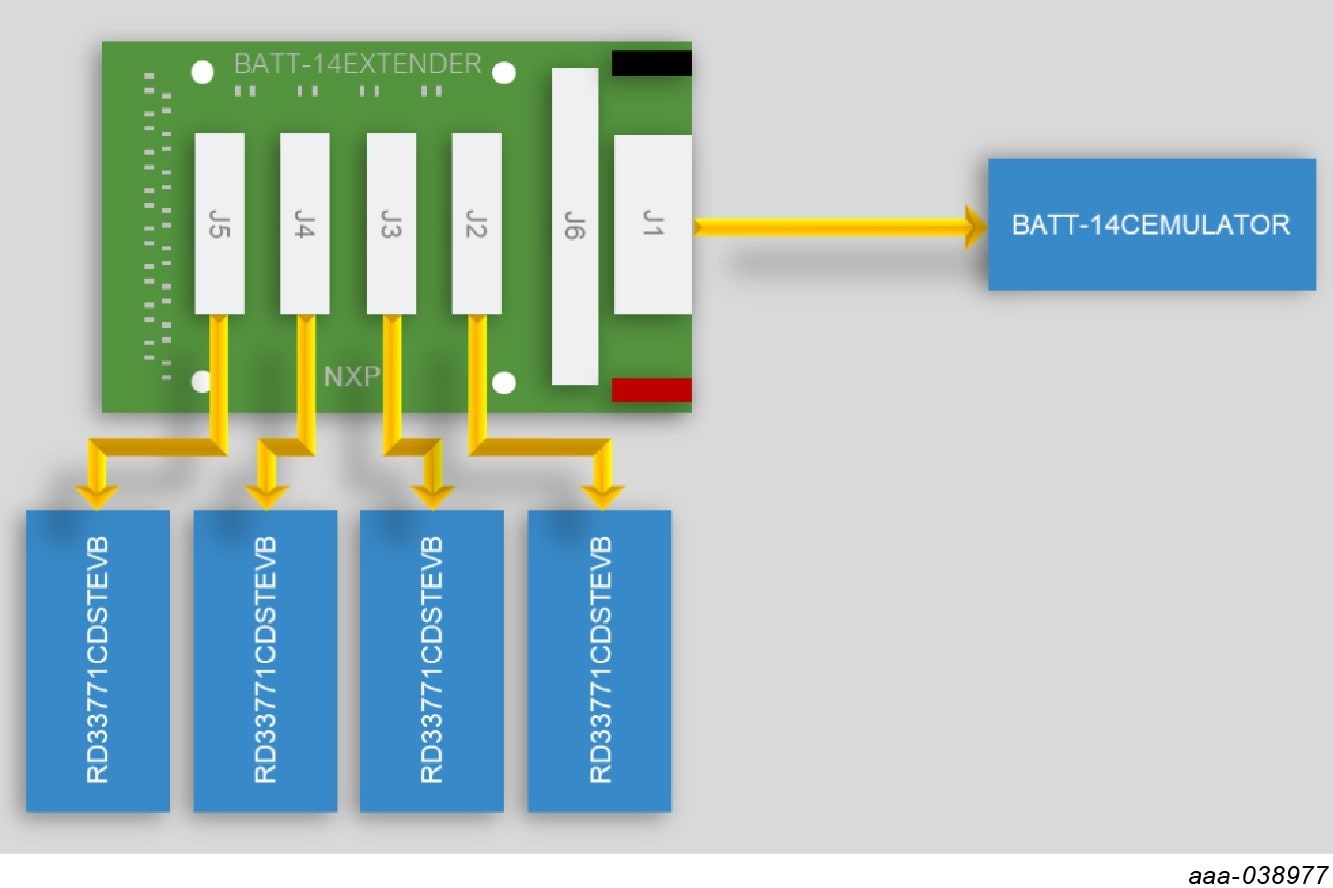

3.1 Use case 1
In this use case, the BATT-14EXTENDER is powered up by a BATT-14CEMULATOR. Up to four EVBs can be connected to the BATT-14EXTENDER. No additional components need to be populated. The board is delivered by default for this use case.

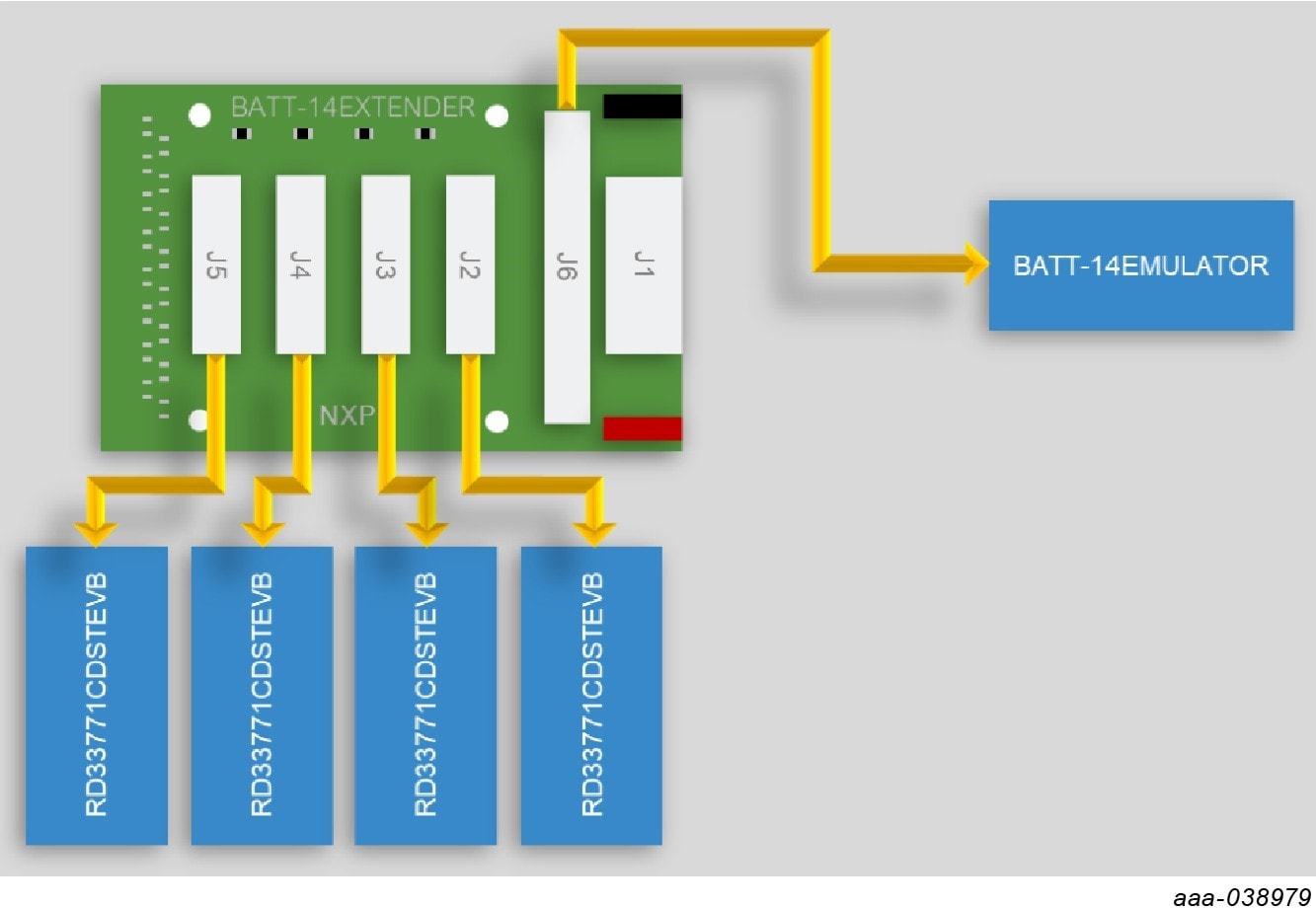

3.2 Use case 2
In this use case, the BATT-14EXTENDER is powered up by a BATT-14EMULATOR and up to four EVB can be connected to the board. BATT-14EMULATOR doesn’t have an NTC emulation. In order to allow the EVBs to have an NTC emulation, it is recommended to populate RT1-RT4 footprints with NTCs.

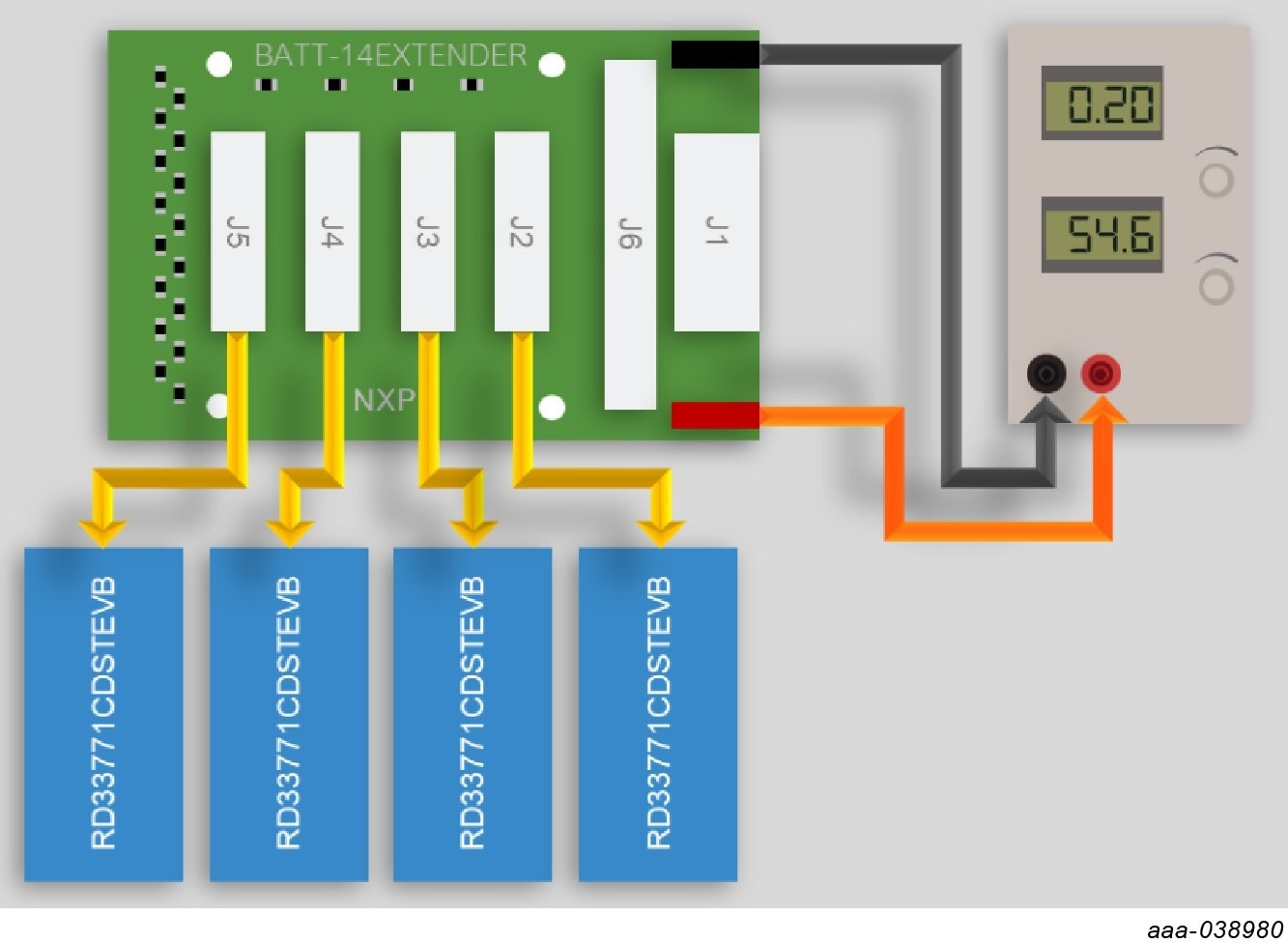

3.3 Use case 3
In this use case, the BATT-14EXTENDER is powered up by an external power supply. The positive terminal of the power
supply is connected to J7 and the negative to J8.
J7 and J8 are 2 mm banana plugs. Divider bridge resistors as well as NTCs must be populated to be able to use the
board with that option.
Design Resources
Board Information
Refer to UM11484, BATT-14EXTENDER 14-cell battery pack extender user manual for additional details on the featured components and board configuration.
Additional Resources
Product Summary
The product summary page for battery cell controllers is at: Battery Cell Controllers.
Tool Summary
The tool summary page for BATT-14EXTENDER board is at Battery Emulator Extender.
The page provides overview information, technical and functional specifications, ordering information, documentation and software. The Get Started guide provides quick-reference information applicable to using the BATT-14EXTENDER board, including the downloadable assets.
