Name: 14-Cell Battery Pack to Supply MC33771 EVBs
Price: 690.00 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

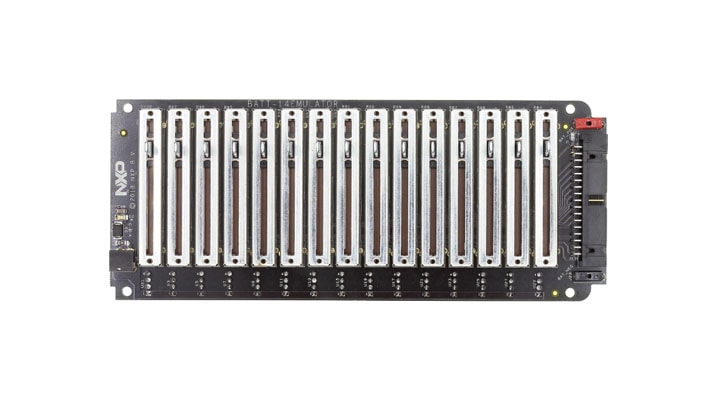

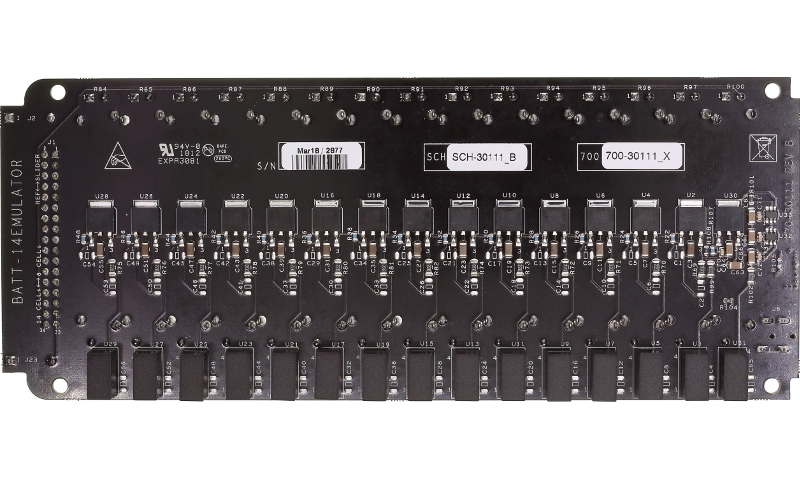

The BATT-6EMULATOR and BATT-14EMULATOR boards can emulate a multi-cell battery pack that can be easily hooked up to the evaluation boards for automotive lithium-ion battery cell controller MC33771:

FRDM33771BTPLEVB
FRDM33771BSPIEVB

Design Files

Product Details

Supported Devices

Power Management

Battery Cell Controllers

MC33771B: 14-Channel Li-Ion Battery Cell Controller IC

Features

Power Management

Adjustable individual cell voltage (1.26 V ~ 4.8 V)

User components

LED power indicator

General Features

14-cell battery emulator, up to 3 emulators in series

Buy Options

Click to expand

BATT-14EMULATOR
14-Cell Battery Pack to Supply MC33771 EVBs.
- 1 BATT-14EMULATOR board.
- 1 Ribbon cable to connect battery emulator to MC33771 EVBs.

$690.00USD
For a quantity of 1
- Availability: In stock
- Inventory: 15
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
