CWH-UTP-ONCE-HE
Active -
USB TAP FOR HAWK HYBRID.
Compact List

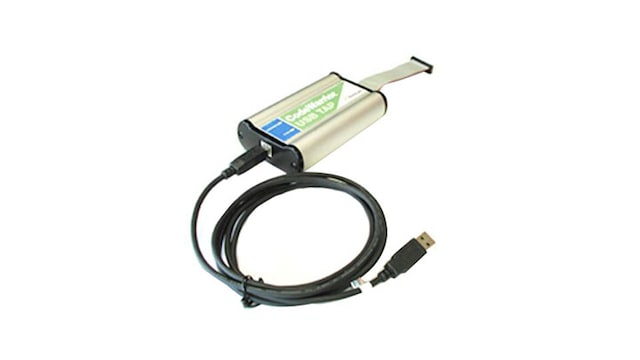

USB TAP for ONCE DSC
The CodeWarrior® USB TAP® host target interface is a feature-packed, run control tool that allows developers to save development time during target bring-up and debugging.
- The USB TAP integrates seamlessly with the CodeWarrior development environment, giving developers a powerful tool for complex debug tasks and providing excellent visibility into, and control of, NXP® on-chip debug features
- With the USB TAP, you will have complete run control functionality and easy flash programming for fast downloads and convenient production testing
- The CodeWarrior USB TAP features support for the 56800/E Hybrid NXP processors
Product Details
Supported Devices
Processors and Microcontrollers
16-Bit 56800E DSC Core
- 56F801X: Digital Signal Controller for Motor Control Applications
- 56F802X: Digital Signal Controller for Auto and Industrial Applications
- 56F803X: Digital Signal Controller with CAN for Industrial Applications
- 56F824X_825X: Digital Signal Controller
- 56F832X_812X: Digital Signal Controllers
- 56F8335_8135: Digital Signal Controllers for Auto and Industrial Applications
- 56F834X-814X: Digital Signal Controllers for Auto and Industrial Applications
- 56F835X-815X: Digital Signal Controllers
- 56F836X-816X: Digital Signal Controllers
- 56F800x: MC56F8006 and MCF56F8002 Digital Signal Controllers
Features
Power Management
- Device is self-powered, requiring no external power supply
- Low voltage target support
- Low-voltage processor compatible
Connectivity
- High-speed USB 2.0 connectivity
Debug
- USB 2.0 run-control emulator for target bring-up and debug providing visibility into and control of NXP® on-chip debug (OCD) features using On-Chip Emulation (OnCE) communication protocol
- Combines a powerful C/C++ symbolic debugger with an integrated debugging interface to take advantage of all USB TAP features
- Debug code in ROM, RAM, and flash
Memory
- Flash memory programming
Tools and OS Support
- Fully integrated with CodeWarrior® tools and supports all CodeWarrior run-control debug features
- Use software or hardware breakpoints:
- Crash-proof control of the target processor
- Obtain and modify register contents
- Display and modify memory
- Control instruction execution
- Run/stop/step/reset
Performance
- Gain optimal performance:
- Split-second single-step execution
- Fast code download to target, depending on processor and target design
- Control and debug your software running in-target, with minimal intrusion into target operation
- Expect fast response for new processors or mask revisions support
- Use detailed source-level trace to validate complex code execution despite cache and prefetch operations
- Run-control visibility and control
