Freedom Expansion Board, MC34933, H-Bridge Motor Driver, 2-7 V, 1.4 A, 200 kHz

FRDM-34933EVB Active

Roll over image to zoom in

This Freedom evaluation board features the MC34933 two channel H-Bridge driver which can drive a single stepper motor or 2 brushed DC motors.

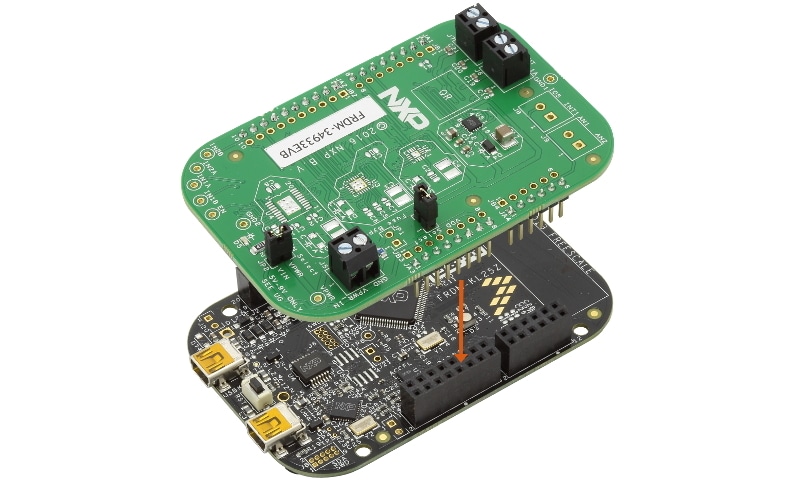

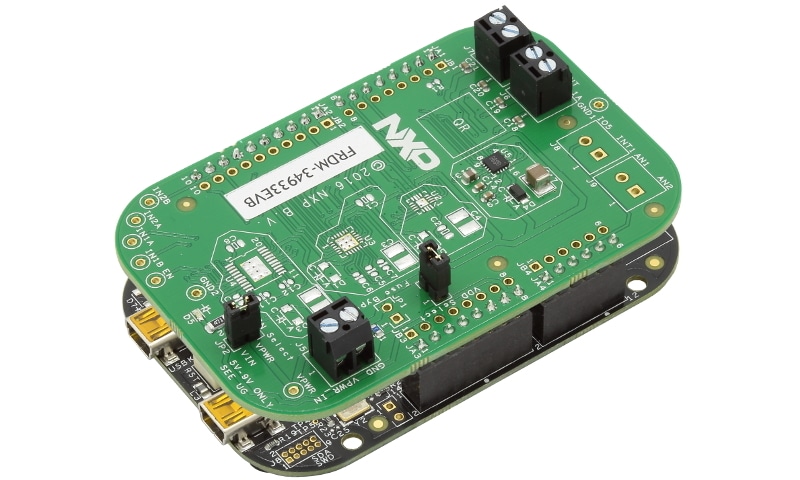

The FRDM-34933EVB has been designed to easily fit on top of the FRDM-KL25Z

The MC34933 uses Our proprietary SMOS8 Bi CMOS process to deliver a low power device, and operates from 2.0 V to 7.0 V, with a maximum quiescent current of 100 uA for the motor drive supply and 400uA for the Control Logic supply. The MC34933 employs a VCC detection circuit to sense when the logic supply switches to an off-state with a maximum current of 1 uA to extend battery life.

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Products

No Longer Manufactured

  • MC34933: H-Bridge Motor Driver, 2-7 V, 1.4 A, 200 kHz

Features

Connectivity

  • Screw terminals for motor leads and power connections

Power Management

  • Built in regulator for logic power supply
  • Board power is separate from host CPU power
  • Fuse protected

User Components

  • General-purpose LED driven from FRDM-KL25Z

General Specifications

  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)

Buy Options

FRDM-34933EVB-Image

Click to expand

  • FRDM-34933EVB
    Active

  • FRDM-34933EVB.

    • FRDM-34933EVB board
    • Quick start Guide
    • Connectors for FRDM attach boards
  • $103.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
