H-Bridge Motor Driver, 2-7 V, 1.4 A, 200 kHz

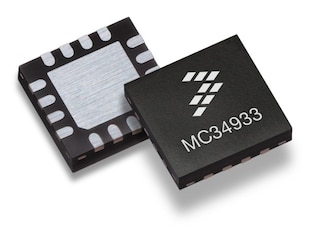

MC34933
End of Life
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

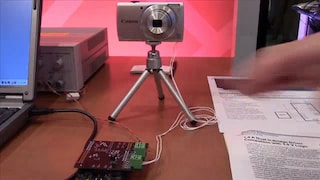

The NXP® MC34933 is a two channel H-Bridge driver with a variety of applications, such as auto focus control, that make it ideal for the digital camera market.

Uses the NXP proprietary SMOS8 Bi CMOS process to deliver a low power device with a maximum quiescent current of 100 uA for the motor drive supply and 400 uA for the control logic supply

Employs a VCC detection circuit to sense when the logic supply switches to an off-state with a maximum current of 1u A to extend battery life

Thermal protection circuitry for the H-Bridge drivers to avoid damage to the IC's internal Power MOSFET circuitry

Product Details

Block Diagram

NXP MC34933 Power Actuation Block Diagram

NXP MC34933 Power Actuation Block Diagram
Get diagram PDF

Features

Key Features

  • Built-In 2-Channel H-Bridge Driver
  • H-Bridge Operation Voltage 2.0 V ~ 7.0 V
  • Output Current 1.0 A @TA=25°C
  • Low Total RDS(ON) 0.8 Ω (Typ), 1.0 Ω (Max) @ TA=25 °C
  • Dual Channel Parallel Driver, RDS(ON) 0.4Ω (Typ). Max DC Current 1.4 A
  • PWM Control Input Frequency up to 200 kHz
  • Built-In Shoot-Through Current Prevention Circuit
  • Built-In Charge Pump Circuit (External Cap type)
  • VCC Low Voltage Detection for logic power supply voltage
  • Thermal Detection for H-Bridge driver
  • Parallel interface and input control
  • Ambient operating temperature -20 °C (Min), 85 °C (Max)

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MC34933 is included in the 15-year program

Buy/Parametrics

1 result

Exclude 1 NRND

Part

Show description

Order

CAD Model

Status

MC34933EP
Data Sheet

End of Life
