TJA1102 Automotive Ethernet 100BASE-T1 Dual PHY Evaluation Board

OM14500-TJA1102 Active

Roll over image to zoom in

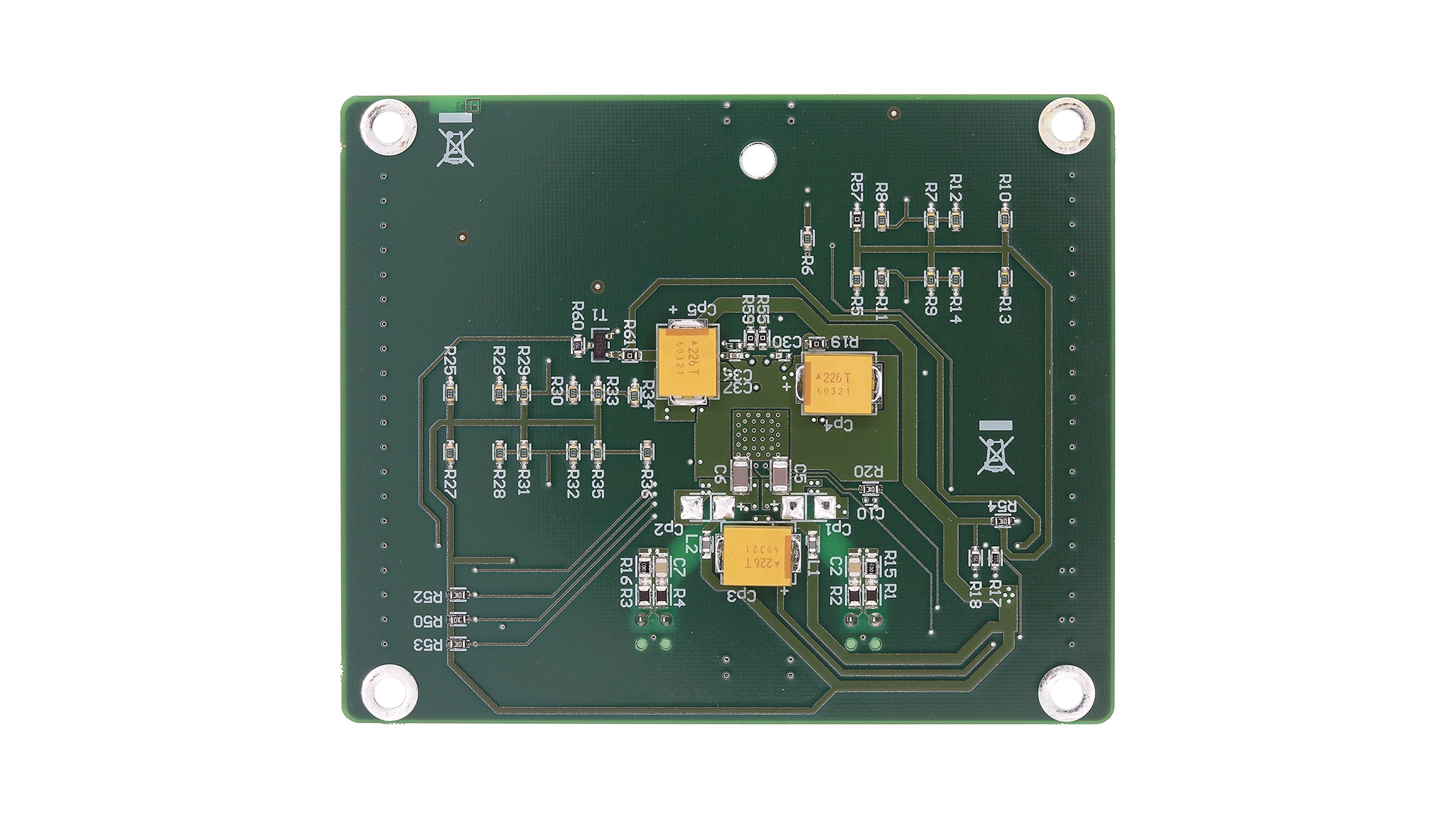

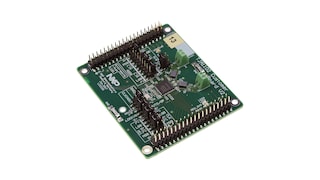

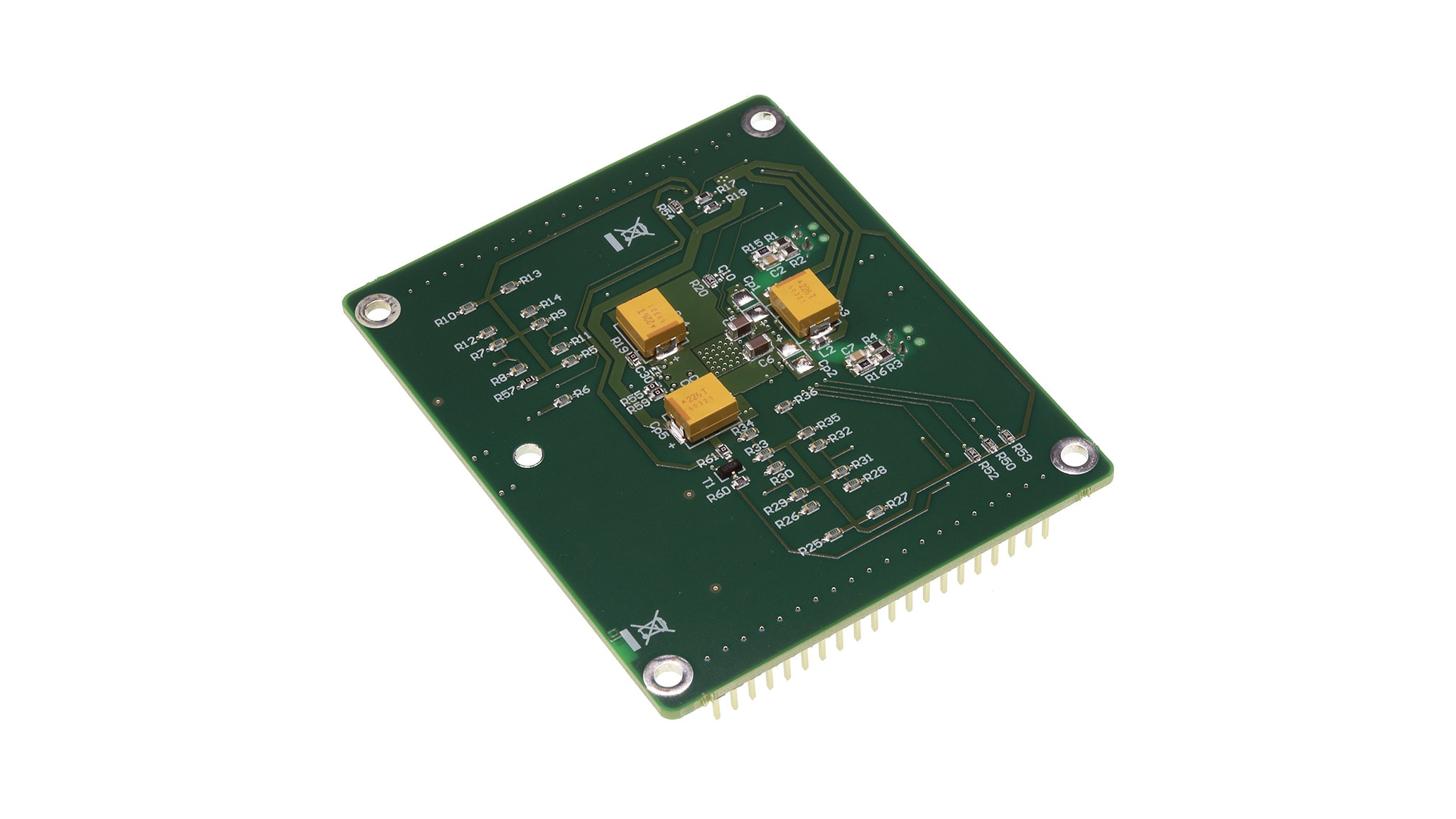

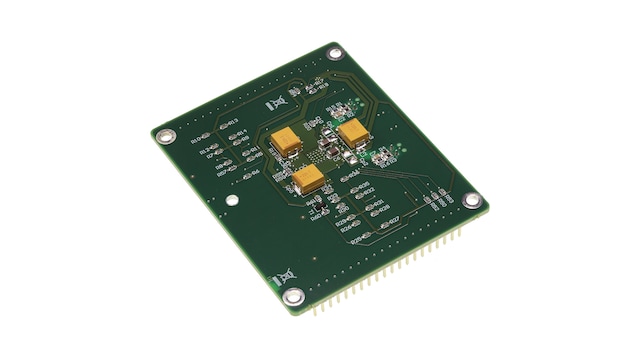

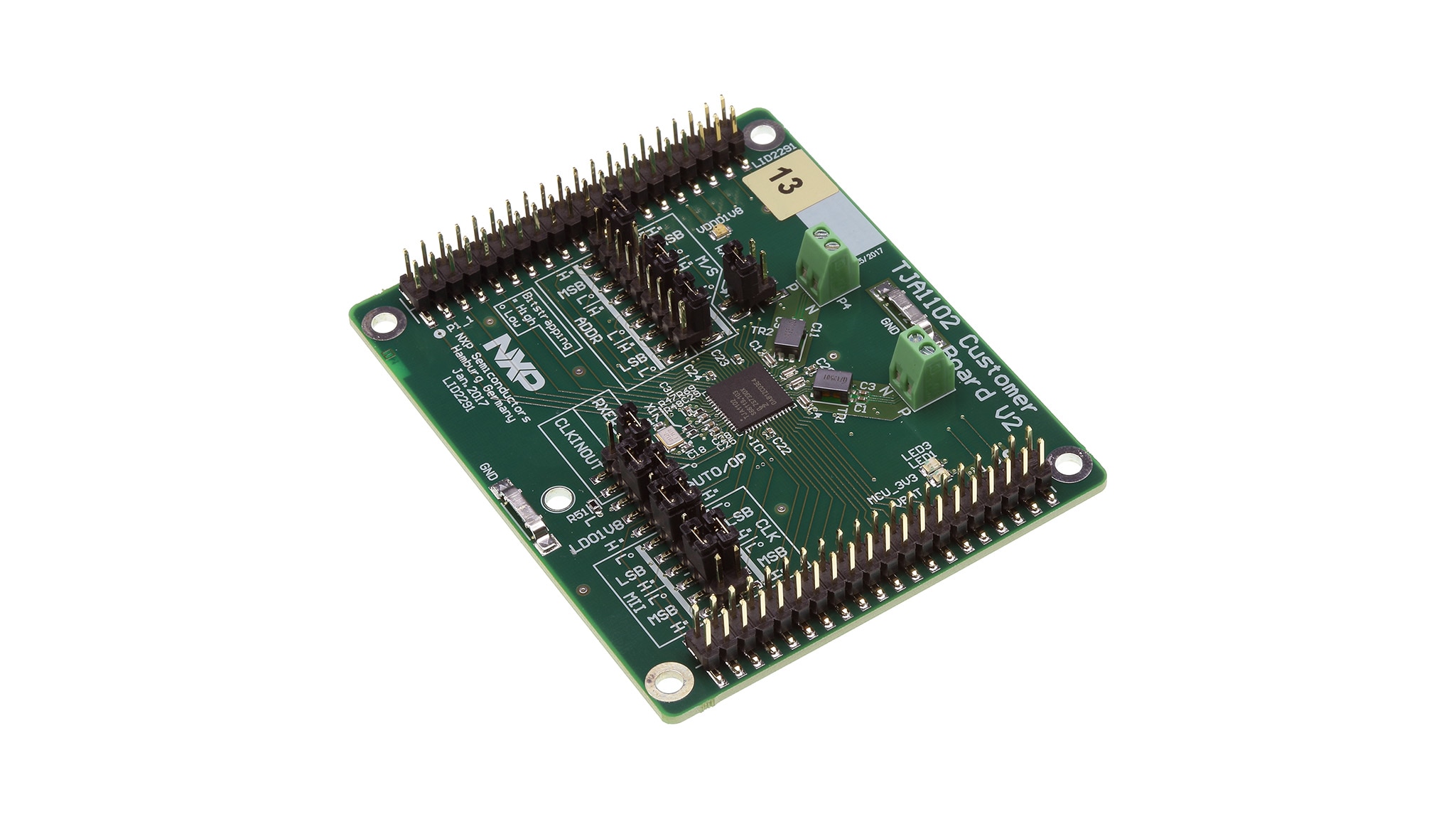

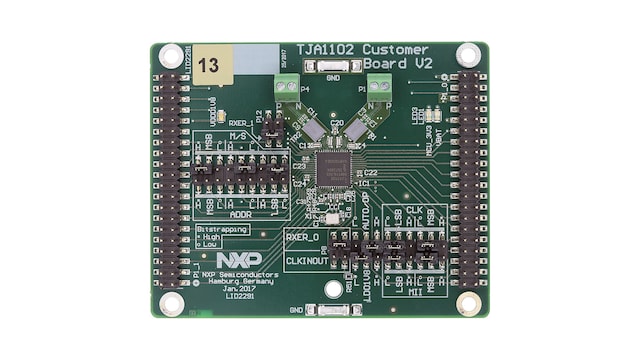

The TJA1102 customer evaluation board is a low-cost hardware development tool which supports the functional evaluation of the TJA1102 (dual port) and the TJA1102S (single port) 100BASE-T1 PHY transceiver.

The breadboard provides straight access to the MDI and MII interfaces of the chip. The 40-pins standard header allows for quick connection to the host controller. Simple screw connectors adapt flexibly an (unshielded) twisted pair of wires. Jumper settings are taking care of the chip configuration during startup. To put the device e.g. in repeater mode, use jumper settings to configure for internal MII loopback.

Supported Devices

Interfaces

Automotive Ethernet PHYs

  • TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver

Features

General Specifications

  • Quick functional evaluation of TJA1102
  • 100BASE-T1 connectivity at ECU prototyping stage
  • Simple chip configuration
  • Chip status report via onboard LEDs
  • Config pin strapping by jumper settings
  • 40-pin standard header (2.54 mm pitch) to Host Controller MII
  • Twisted-pair cable provided in the box
  • Screw connector for simple cable assembly

Support and Software

  • Software and documentation are available on docstore.nxp.com (NDA required)

Buy Options

OM14500-Image

Click to expand

  • OM14500
    Active

  • 100BASE-T1 PHY Evaluation Board.

  • Kit Contains:

    • TJA1102 100BASE-T1 PHY Evaluation Board
    • 1x TJA1102HN Customer Evaluation Board

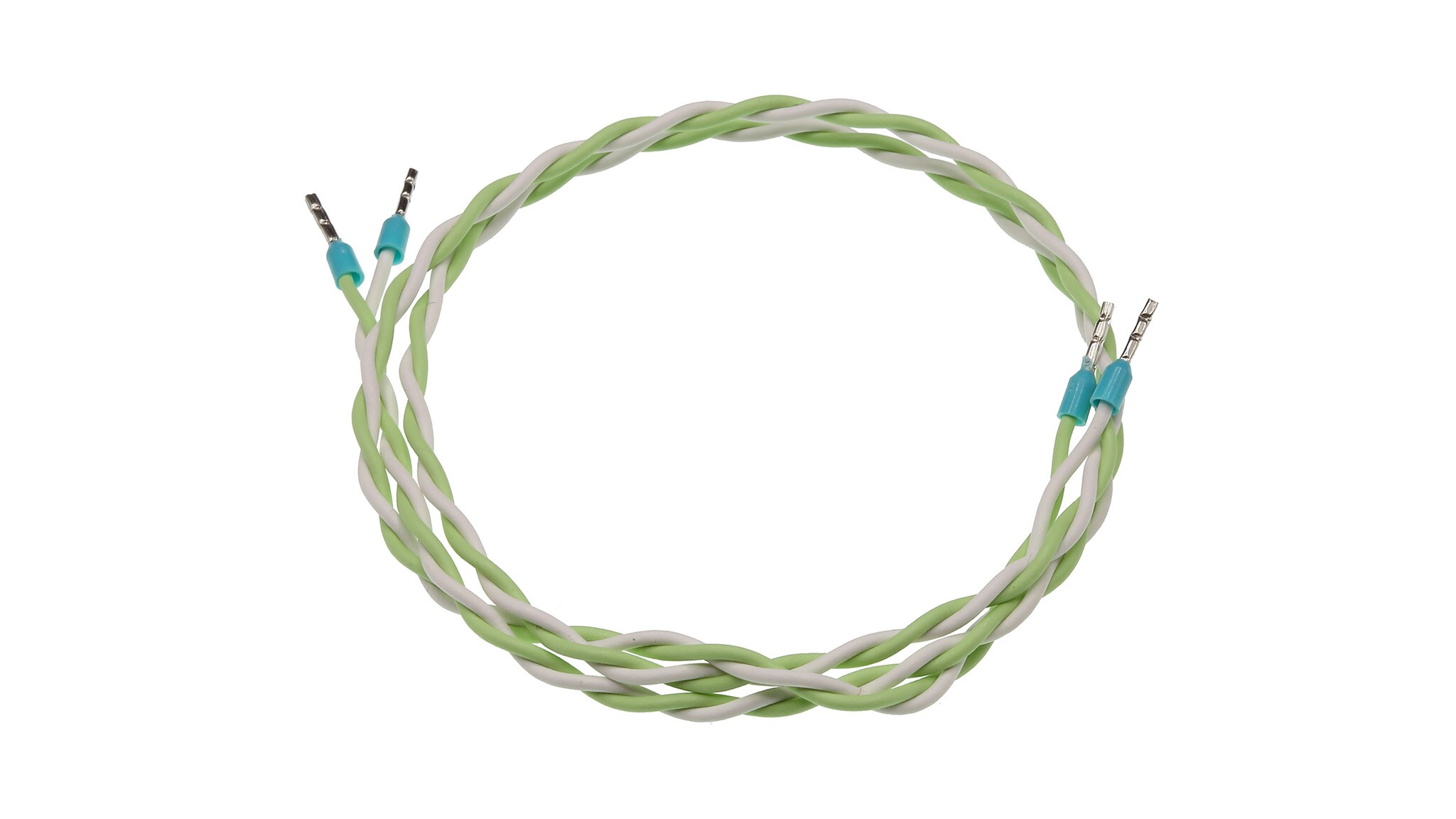

    • 1x Unshielded Twisted Pair (UTP) Cable (automotive grade)
