Integrated Pressure Sensor (0 to 10 kPa) | NXP Semiconductors

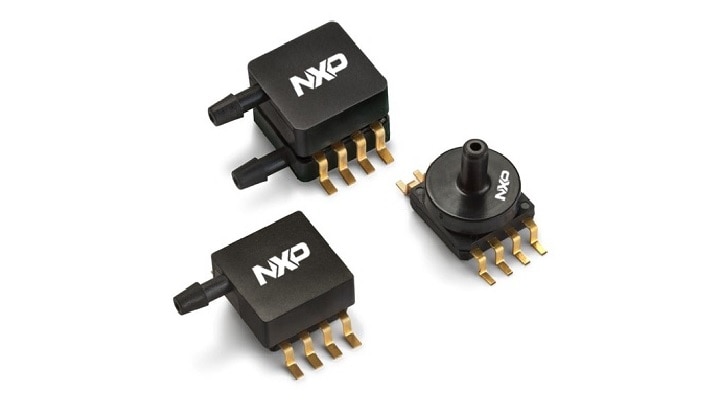

Differential and Gauge, Integrated Pressure Sensor (0 to 10 kPa)

Roll over image to zoom in

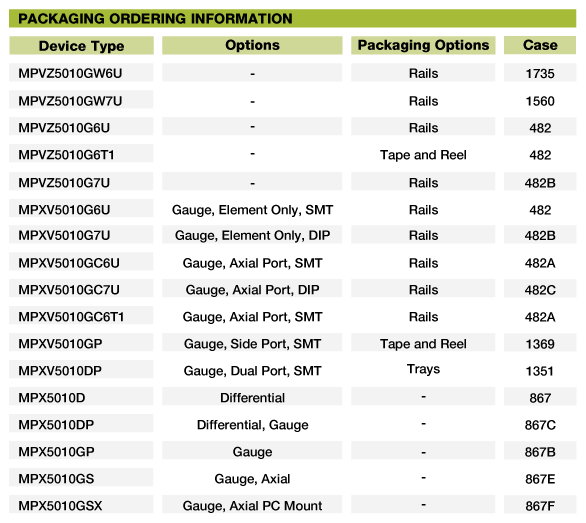

Block Diagram

MPxx5010_BD

Features

Key Features

  • 5.0 percent maximum error over 0 °C to 85 °C
  • Ideally suited for microprocessor or microcontroller-based systems
  • Durable epoxy unibody and thermoplastic (PPS) surface mount package
  • Temperature compensated over -40 °C to +125 °C
  • Silicon shear stress strain gauge
  • Available in differential and gauge configurations
  • Available in surface mount (SMT) or through-hole (DIP) configurations

Buy/Parametrics

1-10 of 11 results

Include 4 NRND

Order

CAD Model

Status

Budgetary Price excluding tax

Accuracy (% Error) (Max) (%)

Ambient Operating Temperature (Min to Max) (℃)

Level of Integration

Output Type

Porting

Pressure Measurement Type

Pressure Rating (MAX) (psi)

Supply Voltage [min] (V)

Supply Voltage [max] (V)

Supply Voltage [typ] (V)

Active

1K @ US$8.11

5

-40 to 125

integrated

analog

dual side ports

differential

1

2.7

3.3

3

Active

1K @ US$8.82

5

-40 to 125

integrated

analog

axial port

gauge

1

2.7

3.3

3

Active

1K @ US$8.82

5

-40 to 125

integrated

analog

axial port

gauge

1

2.7

3.3

3

Active

1K @ US$12.80

5

-40 to 125

integrated

analog

axial port

gauge

1

4.75

5.25

5

Active

1K @ US$12.80

5

-40 to 125

integrated

analog

axial port

gauge

1

4.75

5.25

5

Active

1K @ US$9.59

5

-40 to 125

integrated

analog

dual side ports

differential

1

4.75

5.25

5

Active

1K @ US$12.03

5

-40 to 125

integrated

analog

side port

gauge

1

4.75

5.25

5

Active

1K @ US$10.66

5

-40 to 125

integrated

analog

dual side ports

differential

1

4.75

5.25

5

Active

1K @ US$10.83

5

-40 to 125

integrated

analog

axial port

gauge

1

4.75

5.25

5

Active

1K @ US$9.39

5

-40 to 125

integrated

analog

axial port

gauge

1

4.75

5.25

5

N true 0 PSPMPXx5010en 21 Application Note Application Note t789 15 Brochure Brochure t518 1 Data Sheet Data Sheet t520 3 Fact Sheet Fact Sheet t523 1 Selector Guide Selector Guide t528 1 en_US en_US en Data Sheet Data Sheet 3 1 MPX5010DP,MPX5010GP,MPX5010GSX,MPXV5010DP,MPXV5010G6U,MPXV5010GC6,MPXV5010GC6U,MPXV5010GC7U,MPXV5010GP 14 English The MPxx5010 series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure. The axial port has been modified to accommodate industrial grade tubing. P966580941991 PSP 771.5 KB None None documents None P966580941991 /docs/en/data-sheet/MPX5010.pdf 771538 /docs/en/data-sheet/MPX5010.pdf MPX5010 documents N N 2024-05-17 MPX5010, MPXV5010, MPVZ5010 Series Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated - Data Sheet /docs/en/data-sheet/MPX5010.pdf /docs/en/data-sheet/MPX5010.pdf Data Sheet N 980000996212993340 2024-05-17 pdf N en May 17, 2024 980000996212993340 Data Sheet Y N MPX5010, MPXV5010, MPVZ5010 Series Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated - Data Sheet 2 MP3V5010DP,MP3V5010GC6,MP3V5010GC6U 0 English The MP3V5010 series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. 1240515811520733303526 PSP 195.1 KB None None documents None 1240515811520733303526 /docs/en/data-sheet/MP3V5010.pdf 195098 /docs/en/data-sheet/MP3V5010.pdf MP3V5010 documents N 2009-04-23 MP3V5010, Integrated Silicon Pressure MP3V5010, Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated /docs/en/data-sheet/MP3V5010.pdf /docs/en/data-sheet/MP3V5010.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Apr 23, 2009 980000996212993340 Data Sheet Y N MP3V5010, Integrated Silicon Pressure MP3V5010, Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated 3 MPVZ5010G6U,MPVZ5010GW6U,MPVZ5010GW7U 0 English The MPVZ5010GW series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed primarily for the appliance market. The analog output can be read directly into the A/D input of NXP microcontrollers. 1128100069965738644230 PSP 385.6 KB None None documents None 1128100069965738644230 /docs/en/data-sheet/MPVZ5010G.pdf 385594 /docs/en/data-sheet/MPVZ5010G.pdf MPVZ5010G documents N 2005-09-30 MPVZ5010GW, Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated /docs/en/data-sheet/MPVZ5010G.pdf /docs/en/data-sheet/MPVZ5010G.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Sep 30, 2005 980000996212993340 Data Sheet Y N MPVZ5010GW, Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated Application Note Application Note 15 4 1 English AN3956: The DEMOAPEXSENSOR is an experimental sensor board focused on pressure with a variety of applications built into the demo. These include: Altimeter, Barometer, Barometer Alarm, Weather station, Waterlevel, Waterlevel Alarm, Tilt, Freefall, and Temperature Sensing. The board has been designed as a standalone board to be interfaced currently via an LCD display and menu buttons. 1257801617439725291247 PSP 486.8 KB Registration without Disclaimer None documents Extended 1257801617439725291247 /secured/assets/documents/en/application-note/AN3956.pdf 486812 /secured/assets/documents/en/application-note/AN3956.pdf AN3956 documents Y N 2016-10-31 AN3956, DEMOAPEXSENSOR Usage - Application Notes /webapp/Download?colCode=AN3956 /secured/assets/documents/en/application-note/AN3956.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Sep 1, 2010 645036621402383989 Application Note Y N AN3956, DEMOAPEXSENSOR Usage - Application Notes 5 1 English What is the term Media Compatibility, and how does it affect Pressure Sensors? Media is any chemical compound, in liquid, solid or gas which interacts with the sensor where the sensing of pressure is done either directly through this chemical, or by measuring the pressure of a gas containing a certain amount of this chemical. Media Compatibility is presented here as the various media that our sensor can sense pressure with, either directly or through an air column. While this document will lay groundwork fo 1211917633286722474132 PSP 114.6 KB Registration without Disclaimer None documents Extended 1211917633286722474132 /secured/assets/documents/en/application-note/AN3728.pdf 114649 /secured/assets/documents/en/application-note/AN3728.pdf AN3728 documents Y N 2016-10-31 AN3728, Media Compatibility for IPS PRT Pressure Sensors /webapp/Download?colCode=AN3728 /secured/assets/documents/en/application-note/AN3728.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jul 16, 2008 645036621402383989 Application Note Y N AN3728, Media Compatibility for IPS PRT Pressure Sensors 6 2 English This application note describes how to implement an auto-zero function when using an integrated pressure sensor with a microcontroller and an analog to digital converter (MCU and an A/D). Auto-zero is a compensation technique based on sampling the offset of the sensor at reference pressure (atmospheric pressure is a zero reference for a gauge measurement) in order to correct the sensor output for long-term offset drift or variation. B966580754439 PSP 51.5 KB None None documents None B966580754439 /docs/en/application-note/AN1636.pdf 51487 /docs/en/application-note/AN1636.pdf AN1636 documents N 2000-08-17 AN1636, Implementing Auto Zero for Integrated Pressure Sensors /docs/en/application-note/AN1636.pdf /docs/en/application-note/AN1636.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 24, 2007 645036621402383989 Application Note Y N AN1636, Implementing Auto Zero for Integrated Pressure Sensors 7 2 English North American washing machines currently in production use mechanical sensors for water level measurement function. These sensors are either purely mechanical pressure switch with discrete trip points or electromechanical pressure sensor with an on-board electronics for a frequency output. Z966580794191 PSP 159.8 KB None None documents None Z966580794191 /docs/en/application-note/AN1668.pdf 159802 /docs/en/application-note/AN1668.pdf AN1668 documents N 2000-08-17 AN1668, Washing Appliance Sensor Selection /docs/en/application-note/AN1668.pdf /docs/en/application-note/AN1668.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 2, 2007 645036621402383989 Application Note Y N AN1668, Washing Appliance Sensor Selection 8 3 English The most recent advances in silicon micro-machining technology have given rise to a variety of low-cost pressure sensor applications and solutions. Certain applications had previously been hindered by the high-cost, large size, and overall reliability limitations of electromechanical pressure sensing devices. P966580681133 PSP 253.3 KB None None documents None P966580681133 /docs/en/application-note/AN1326.pdf 253268 /docs/en/application-note/AN1326.pdf AN1326 documents N N 2016-10-31 AN1326 Barometric Pressure Measurement Using Semiconductor Pressure Sensors /docs/en/application-note/AN1326.pdf /docs/en/application-note/AN1326.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Feb 2, 2007 645036621402383989 Application Note Y N AN1326 Barometric Pressure Measurement Using Semiconductor Pressure Sensors 9 3 English Smaller package outlines and higher board densities require the need for automated placement of components. These components are supplied in embossed carrier tape on plastic reels to meet the increased demand and facilitate ease of handling. This application note is intended to provide general information and understanding for handling Motorola's surface mount pressure sensors. 1075759277354726572627 PSP 594.5 KB Registration without Disclaimer None documents Extended 1075759277354726572627 /secured/assets/documents/en/application-note/AN1984.pdf 594546 /secured/assets/documents/en/application-note/AN1984.pdf AN1984 documents Y N 2016-10-31 AN1984 Handling Freescale Pressure Sensors /webapp/Download?colCode=AN1984 /secured/assets/documents/en/application-note/AN1984.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Feb 2, 2007 645036621402383989 Application Note Y N AN1984 Handling Freescale Pressure Sensors 10 2 English A digital output is more desirable than an analog output in noisy environments (e.g., automotive, washing machines, etc.) and remote sensing applications (building controls, industrial applications, etc.) because a digital signal inherently has better noise immunity compared to analog signals. Additional applications requiring a sensor with a digital output include microcontroller-based systems that have no A/D in the system or that have no A/D channels available for the sensing function. For these applica E966580725660 PSP 232.0 KB Registration without Disclaimer None documents Extended E966580725660 /secured/assets/documents/en/application-note/AN1586.pdf 232022 /secured/assets/documents/en/application-note/AN1586.pdf AN1586 documents Y N 2016-10-31 AN1586, Designing a Homemade Digital Output for Analog Voltage Output Sensors /webapp/Download?colCode=AN1586 /secured/assets/documents/en/application-note/AN1586.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Feb 2, 2007 645036621402383989 Application Note Y N AN1586, Designing a Homemade Digital Output for Analog Voltage Output Sensors 11 1.0 English AN3150: Pressure sensor devices require the internal cavity containing the silicon transducer to be exposed to ambient in order for the device to function. Exposed cavity packages require special considerations during board assembly to prevent damage to the device during soldering and subsequent cleaning operations. 1139865857339705906783 PSP 206.1 KB Registration without Disclaimer None documents Extended 1139865857339705906783 /secured/assets/documents/en/application-note/AN3150.pdf 206104 /secured/assets/documents/en/application-note/AN3150.pdf AN3150 documents Y N 2016-10-31 AN3150, Soldering Recommendations for Pressure Sensor Devices - Application Notes /webapp/Download?colCode=AN3150 /secured/assets/documents/en/application-note/AN3150.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Feb 22, 2006 645036621402383989 Application Note Y N AN3150, Soldering Recommendations for Pressure Sensor Devices - Application Notes 12 3 English This paper describes a simple method to gain more than 8-bits of resolution with an 8-bit A/D. The electronic design is relatively simple and uses standard components. X966580640685 PSP 171.2 KB None None documents None X966580640685 /docs/en/application-note/AN1100.pdf 171188 /docs/en/application-note/AN1100.pdf AN1100 documents N N 2016-10-31 AN1100 Analog to Digital Converter Resolution Extension Using a Pressure Sensor /docs/en/application-note/AN1100.pdf /docs/en/application-note/AN1100.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 16, 2005 645036621402383989 Application Note Y N AN1100 Analog to Digital Converter Resolution Extension Using a Pressure Sensor 13 2 English Bar Graph displays are noted for their ability to very quickly convey a relative sense of how much of something is present.They are particularly useful in process monitoring applications where quick communication of a relative value is more important than providing specific data. W966580668920 PSP 297.6 KB Registration without Disclaimer None documents Extended W966580668920 /secured/assets/documents/en/application-note/AN1322.pdf 297614 /secured/assets/documents/en/application-note/AN1322.pdf AN1322 documents Y N 2016-10-31 AN1322 Applying Semiconductor Sensors to Bar Graph Pressure Gauges /webapp/Download?colCode=AN1322 /secured/assets/documents/en/application-note/AN1322.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en May 16, 2005 645036621402383989 Application Note Y N AN1322 Applying Semiconductor Sensors to Bar Graph Pressure Gauges 14 2 English The popular silicon pressure sensors are piezoresistive bridges that produce a differential output voltage in response o pressure applied to a thin silicon diaphragm. Output voltage for these sensors is generally 25 to 50 mV full scale. W966580664994 PSP 354.6 KB Registration without Disclaimer None documents Extended W966580664994 /secured/assets/documents/en/application-note/AN1318.pdf 354591 /secured/assets/documents/en/application-note/AN1318.pdf AN1318 documents Y N 2016-10-31 AN1318 Interfacing Semiconductor Pressure Sensors to Microcomputers /webapp/Download?colCode=AN1318 /secured/assets/documents/en/application-note/AN1318.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en May 16, 2005 645036621402383989 Application Note Y N AN1318 Interfacing Semiconductor Pressure Sensors to Microcomputers 15 2 English Introduction PSPICE models for Uncompensated, MPX2000 series, and MPX5000 series pressure sensors are presented here. These models use compound coefficients to improve modeling of temperature dependent behavior. The discussion begins with an overview of how the models are structured, and is followed by an explanation of compound coefficients. The emphasis is on how to use these models to estimate sensor performance. They can be found electronically on a disk included in ASB200 Sensor Development Controller F966580790271 PSP 263.6 KB Registration without Disclaimer None documents Extended F966580790271 /secured/assets/documents/en/application-note/AN1660.pdf 263626 /secured/assets/documents/en/application-note/AN1660.pdf AN1660 documents Y N 2016-10-31 AN1660, Compound Coefficient Pressure Sensor PSPICE Models /webapp/Download?colCode=AN1660 /secured/assets/documents/en/application-note/AN1660.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en May 1, 2005 645036621402383989 Application Note Y N AN1660, Compound Coefficient Pressure Sensor PSPICE Models 16 2 English The Integrated Pressure Sensors (IPS) have trimmed outputs, built-in temperature compensation and an amplified single-ended output which make them compatible with Analog to Digital converters (A/Ds) on low cost micro-controllers. Although 8-bit A/Ds are common, higher resolution A/Ds are becoming increasingly available. With these higher resolution A/Ds, the noise that is inherent to piezo-resistive bridges becomes a design consideration. J966580770359 PSP 261.9 KB Registration without Disclaimer None documents Extended J966580770359 /secured/assets/documents/en/application-note/AN1646.pdf 261850 /secured/assets/documents/en/application-note/AN1646.pdf AN1646 documents Y N 2016-10-31 AN1646, Noise Considerations for Integrated Pressure Sensors /webapp/Download?colCode=AN1646 /secured/assets/documents/en/application-note/AN1646.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en May 1, 2005 645036621402383989 Application Note Y N AN1646, Noise Considerations for Integrated Pressure Sensors 17 0 English Archived 2005 - Smart Sensor System H966580721659 PSP 278.2 KB None None documents None H966580721659 /docs/en/application-note/AN1585.pdf 278245 /docs/en/application-note/AN1585.pdf AN1585 documents N 2000-08-17 ARCHIVED 2005 High-Performance, Dynamically-Compensated Smart Sensor System /docs/en/application-note/AN1585.pdf /docs/en/application-note/AN1585.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 19, 1998 645036621402383989 Application Note Y N ARCHIVED 2005 High-Performance, Dynamically-Compensated Smart Sensor System 18 1 English Archived 2005 - Controller Board Q966580786330 PSP 382.5 KB None None documents None Q966580786330 /docs/en/application-note/AN1655.pdf 382500 /docs/en/application-note/AN1655.pdf AN1655 documents N 2000-08-17 ARCHIVED 2005 AN1655 ASB200 - Sensor Development Controller Board /docs/en/application-note/AN1655.pdf /docs/en/application-note/AN1655.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 9, 1998 645036621402383989 Application Note Y N ARCHIVED 2005 AN1655 ASB200 - Sensor Development Controller Board Brochure Brochure 1 19 2 English NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications 1542831695480719843505 PSP 1.2 MB None None documents None 1542831695480719843505 /docs/en/brochure/MEDSENSORSA4BR.pdf 1243036 /docs/en/brochure/MEDSENSORSA4BR.pdf MEDSENSORSA4BR documents N N 2018-11-21 Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf /docs/en/brochure/MEDSENSORSA4BR.pdf Brochure N 712453003803778552 2025-02-25 pdf N en Jan 11, 2019 712453003803778552 Brochure Y N Motion and Pressure Sensors for Medical Applications - Brochure Fact Sheet Fact Sheet 1 20 13 English Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. 1092086607381736729272 PSP 2.2 MB None None documents None 1092086607381736729272 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2216251 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf SNSRSOLUTNTMFS documents N N 2016-10-31 Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Fact Sheet N 736675474163315314 2025-02-25 pdf N en Feb 12, 2020 736675474163315314 Fact Sheet Y N Sensor Solutions Selector Guide Selector Guide 1 21 13 English For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. 1424471489332715853854 PSP 253.0 KB None None documents None 1424471489332715853854 /docs/en/product-selector-guide/SENSSELECT.pdf 252964 /docs/en/product-selector-guide/SENSSELECT.pdf SENSSELECT documents N N 2016-10-31 Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf /docs/en/product-selector-guide/SENSSELECT.pdf Selector Guide N 553557935274807777 2025-02-25 pdf N en May 13, 2024 553557935274807777 Selector Guide Y N Sensor Product Selector Guide true 0 MPXx5010 downloads en true 1 Y PSP Application Note 15 /secured/assets/documents/en/application-note/AN3956.pdf 2016-10-31 1257801617439725291247 PSP 4 Sep 1, 2010 Application Note AN3956: The DEMOAPEXSENSOR is an experimental sensor board focused on pressure with a variety of applications built into the demo. These include: Altimeter, Barometer, Barometer Alarm, Weather station, Waterlevel, Waterlevel Alarm, Tilt, Freefall, and Temperature Sensing. The board has been designed as a standalone board to be interfaced currently via an LCD display and menu buttons. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3956.pdf English documents 486812 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN3956 AN3956, DEMOAPEXSENSOR Usage - Application Notes /secured/assets/documents/en/application-note/AN3956.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N AN3956, DEMOAPEXSENSOR Usage - Application Notes 486.8 KB AN3956 N 1257801617439725291247 /secured/assets/documents/en/application-note/AN3728.pdf 2016-10-31 1211917633286722474132 PSP 5 Jul 16, 2008 Application Note What is the term Media Compatibility, and how does it affect Pressure Sensors? Media is any chemical compound, in liquid, solid or gas which interacts with the sensor where the sensing of pressure is done either directly through this chemical, or by measuring the pressure of a gas containing a certain amount of this chemical. Media Compatibility is presented here as the various media that our sensor can sense pressure with, either directly or through an air column. While this document will lay groundwork fo Registration without Disclaimer /secured/assets/documents/en/application-note/AN3728.pdf English documents 114649 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN3728 AN3728, Media Compatibility for IPS PRT Pressure Sensors /secured/assets/documents/en/application-note/AN3728.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N AN3728, Media Compatibility for IPS PRT Pressure Sensors 114.6 KB AN3728 N 1211917633286722474132 /docs/en/application-note/AN1636.pdf 2000-08-17 B966580754439 PSP 6 Oct 24, 2007 Application Note This application note describes how to implement an auto-zero function when using an integrated pressure sensor with a microcontroller and an analog to digital converter (MCU and an A/D). Auto-zero is a compensation technique based on sampling the offset of the sensor at reference pressure (atmospheric pressure is a zero reference for a gauge measurement) in order to correct the sensor output for long-term offset drift or variation. None /docs/en/application-note/AN1636.pdf English documents 51487 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1636.pdf AN1636, Implementing Auto Zero for Integrated Pressure Sensors /docs/en/application-note/AN1636.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N AN1636, Implementing Auto Zero for Integrated Pressure Sensors 51.5 KB AN1636 N B966580754439 /docs/en/application-note/AN1668.pdf 2000-08-17 Z966580794191 PSP 7 Feb 2, 2007 Application Note North American washing machines currently in production use mechanical sensors for water level measurement function. These sensors are either purely mechanical pressure switch with discrete trip points or electromechanical pressure sensor with an on-board electronics for a frequency output. None /docs/en/application-note/AN1668.pdf English documents 159802 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1668.pdf AN1668, Washing Appliance Sensor Selection /docs/en/application-note/AN1668.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N AN1668, Washing Appliance Sensor Selection 159.8 KB AN1668 N Z966580794191 /docs/en/application-note/AN1326.pdf 2016-10-31 P966580681133 PSP 8 Feb 2, 2007 Application Note The most recent advances in silicon micro-machining technology have given rise to a variety of low-cost pressure sensor applications and solutions. Certain applications had previously been hindered by the high-cost, large size, and overall reliability limitations of electromechanical pressure sensing devices. None /docs/en/application-note/AN1326.pdf English documents 253268 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN1326.pdf AN1326 Barometric Pressure Measurement Using Semiconductor Pressure Sensors /docs/en/application-note/AN1326.pdf documents 645036621402383989 Application Note N en None Y pdf 3 N N AN1326 Barometric Pressure Measurement Using Semiconductor Pressure Sensors 253.3 KB AN1326 N P966580681133 /secured/assets/documents/en/application-note/AN1984.pdf 2016-10-31 1075759277354726572627 PSP 9 Feb 2, 2007 Application Note Smaller package outlines and higher board densities require the need for automated placement of components. These components are supplied in embossed carrier tape on plastic reels to meet the increased demand and facilitate ease of handling. This application note is intended to provide general information and understanding for handling Motorola's surface mount pressure sensors. Registration without Disclaimer /secured/assets/documents/en/application-note/AN1984.pdf English documents 594546 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN1984 AN1984 Handling Freescale Pressure Sensors /secured/assets/documents/en/application-note/AN1984.pdf documents 645036621402383989 Application Note N en Extended Y pdf 3 Y N AN1984 Handling Freescale Pressure Sensors 594.5 KB AN1984 N 1075759277354726572627 /secured/assets/documents/en/application-note/AN1586.pdf 2016-10-31 E966580725660 PSP 10 Feb 2, 2007 Application Note A digital output is more desirable than an analog output in noisy environments (e.g., automotive, washing machines, etc.) and remote sensing applications (building controls, industrial applications, etc.) because a digital signal inherently has better noise immunity compared to analog signals. Additional applications requiring a sensor with a digital output include microcontroller-based systems that have no A/D in the system or that have no A/D channels available for the sensing function. For these applica Registration without Disclaimer /secured/assets/documents/en/application-note/AN1586.pdf English documents 232022 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN1586 AN1586, Designing a Homemade Digital Output for Analog Voltage Output Sensors /secured/assets/documents/en/application-note/AN1586.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2 Y N AN1586, Designing a Homemade Digital Output for Analog Voltage Output Sensors 232.0 KB AN1586 N E966580725660 /secured/assets/documents/en/application-note/AN3150.pdf 2016-10-31 1139865857339705906783 PSP 11 Feb 22, 2006 Application Note AN3150: Pressure sensor devices require the internal cavity containing the silicon transducer to be exposed to ambient in order for the device to function. Exposed cavity packages require special considerations during board assembly to prevent damage to the device during soldering and subsequent cleaning operations. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3150.pdf English documents 206104 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN3150 AN3150, Soldering Recommendations for Pressure Sensor Devices - Application Notes /secured/assets/documents/en/application-note/AN3150.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1.0 Y N AN3150, Soldering Recommendations for Pressure Sensor Devices - Application Notes 206.1 KB AN3150 N 1139865857339705906783 /docs/en/application-note/AN1100.pdf 2016-10-31 X966580640685 PSP 12 May 16, 2005 Application Note This paper describes a simple method to gain more than 8-bits of resolution with an 8-bit A/D. The electronic design is relatively simple and uses standard components. None /docs/en/application-note/AN1100.pdf English documents 171188 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN1100.pdf AN1100 Analog to Digital Converter Resolution Extension Using a Pressure Sensor /docs/en/application-note/AN1100.pdf documents 645036621402383989 Application Note N en None Y pdf 3 N N AN1100 Analog to Digital Converter Resolution Extension Using a Pressure Sensor 171.2 KB AN1100 N X966580640685 /secured/assets/documents/en/application-note/AN1322.pdf 2016-10-31 W966580668920 PSP 13 May 16, 2005 Application Note Bar Graph displays are noted for their ability to very quickly convey a relative sense of how much of something is present.They are particularly useful in process monitoring applications where quick communication of a relative value is more important than providing specific data. Registration without Disclaimer /secured/assets/documents/en/application-note/AN1322.pdf English documents 297614 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN1322 AN1322 Applying Semiconductor Sensors to Bar Graph Pressure Gauges /secured/assets/documents/en/application-note/AN1322.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2 Y N AN1322 Applying Semiconductor Sensors to Bar Graph Pressure Gauges 297.6 KB AN1322 N W966580668920 /secured/assets/documents/en/application-note/AN1318.pdf 2016-10-31 W966580664994 PSP 14 May 16, 2005 Application Note The popular silicon pressure sensors are piezoresistive bridges that produce a differential output voltage in response o pressure applied to a thin silicon diaphragm. Output voltage for these sensors is generally 25 to 50 mV full scale. Registration without Disclaimer /secured/assets/documents/en/application-note/AN1318.pdf English documents 354591 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN1318 AN1318 Interfacing Semiconductor Pressure Sensors to Microcomputers /secured/assets/documents/en/application-note/AN1318.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2 Y N AN1318 Interfacing Semiconductor Pressure Sensors to Microcomputers 354.6 KB AN1318 N W966580664994 /secured/assets/documents/en/application-note/AN1660.pdf 2016-10-31 F966580790271 PSP 15 May 1, 2005 Application Note Introduction PSPICE models for Uncompensated, MPX2000 series, and MPX5000 series pressure sensors are presented here. These models use compound coefficients to improve modeling of temperature dependent behavior. The discussion begins with an overview of how the models are structured, and is followed by an explanation of compound coefficients. The emphasis is on how to use these models to estimate sensor performance. They can be found electronically on a disk included in ASB200 Sensor Development Controller Registration without Disclaimer /secured/assets/documents/en/application-note/AN1660.pdf English documents 263626 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN1660 AN1660, Compound Coefficient Pressure Sensor PSPICE Models /secured/assets/documents/en/application-note/AN1660.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2 Y N AN1660, Compound Coefficient Pressure Sensor PSPICE Models 263.6 KB AN1660 N F966580790271 /secured/assets/documents/en/application-note/AN1646.pdf 2016-10-31 J966580770359 PSP 16 May 1, 2005 Application Note The Integrated Pressure Sensors (IPS) have trimmed outputs, built-in temperature compensation and an amplified single-ended output which make them compatible with Analog to Digital converters (A/Ds) on low cost micro-controllers. Although 8-bit A/Ds are common, higher resolution A/Ds are becoming increasingly available. With these higher resolution A/Ds, the noise that is inherent to piezo-resistive bridges becomes a design consideration. Registration without Disclaimer /secured/assets/documents/en/application-note/AN1646.pdf English documents 261850 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN1646 AN1646, Noise Considerations for Integrated Pressure Sensors /secured/assets/documents/en/application-note/AN1646.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2 Y N AN1646, Noise Considerations for Integrated Pressure Sensors 261.9 KB AN1646 N J966580770359 /docs/en/application-note/AN1585.pdf 2000-08-17 H966580721659 PSP 17 Nov 19, 1998 Application Note Archived 2005 - Smart Sensor System None /docs/en/application-note/AN1585.pdf English documents 278245 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1585.pdf ARCHIVED 2005 High-Performance, Dynamically-Compensated Smart Sensor System /docs/en/application-note/AN1585.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N ARCHIVED 2005 High-Performance, Dynamically-Compensated Smart Sensor System 278.2 KB AN1585 N H966580721659 /docs/en/application-note/AN1655.pdf 2000-08-17 Q966580786330 PSP 18 Nov 9, 1998 Application Note Archived 2005 - Controller Board None /docs/en/application-note/AN1655.pdf English documents 382500 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1655.pdf ARCHIVED 2005 AN1655 ASB200 - Sensor Development Controller Board /docs/en/application-note/AN1655.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N ARCHIVED 2005 AN1655 ASB200 - Sensor Development Controller Board 382.5 KB AN1655 N Q966580786330 Brochure 1 /docs/en/brochure/MEDSENSORSA4BR.pdf 2018-11-21 1542831695480719843505 PSP 19 Jan 11, 2019 Brochure NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications None /docs/en/brochure/MEDSENSORSA4BR.pdf English documents 1243036 None 712453003803778552 2025-02-25 N /docs/en/brochure/MEDSENSORSA4BR.pdf Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf documents 712453003803778552 Brochure N en None Y pdf 2 N N Motion and Pressure Sensors for Medical Applications - Brochure 1.2 MB MEDSENSORSA4BR N 1542831695480719843505 Data Sheet 3 /docs/en/data-sheet/MPX5010.pdf 2024-05-17 P966580941991 PSP 1 May 17, 2024 Data Sheet The MPxx5010 series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure. The axial port has been modified to accommodate industrial grade tubing. None /docs/en/data-sheet/MPX5010.pdf English documents 771538 None 980000996212993340 2024-05-17 N /docs/en/data-sheet/MPX5010.pdf MPX5010, MPXV5010, MPVZ5010 Series Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated - Data Sheet /docs/en/data-sheet/MPX5010.pdf documents 980000996212993340 Data Sheet N en None Y pdf 14 N N MPX5010, MPXV5010, MPVZ5010 Series Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated - Data Sheet MPX5010DP,MPX5010GP,MPX5010GSX,MPXV5010DP,MPXV5010G6U,MPXV5010GC6,MPXV5010GC6U,MPXV5010GC7U,MPXV5010GP 771.5 KB MPX5010 N P966580941991 /docs/en/data-sheet/MP3V5010.pdf 2009-04-23 1240515811520733303526 PSP 2 Apr 23, 2009 Data Sheet The MP3V5010 series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. None /docs/en/data-sheet/MP3V5010.pdf English documents 195098 None 980000996212993340 2022-12-07 /docs/en/data-sheet/MP3V5010.pdf MP3V5010, Integrated Silicon Pressure MP3V5010, Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated /docs/en/data-sheet/MP3V5010.pdf documents 980000996212993340 Data Sheet N en None Y pdf 0 N MP3V5010, Integrated Silicon Pressure MP3V5010, Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated MP3V5010DP,MP3V5010GC6,MP3V5010GC6U 195.1 KB MP3V5010 N 1240515811520733303526 /docs/en/data-sheet/MPVZ5010G.pdf 2005-09-30 1128100069965738644230 PSP 3 Sep 30, 2005 Data Sheet The MPVZ5010GW series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed primarily for the appliance market. The analog output can be read directly into the A/D input of NXP microcontrollers. None /docs/en/data-sheet/MPVZ5010G.pdf English documents 385594 None 980000996212993340 2022-12-07 /docs/en/data-sheet/MPVZ5010G.pdf MPVZ5010GW, Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated /docs/en/data-sheet/MPVZ5010G.pdf documents 980000996212993340 Data Sheet N en None Y pdf 0 N MPVZ5010GW, Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated MPVZ5010G6U,MPVZ5010GW6U,MPVZ5010GW7U 385.6 KB MPVZ5010G N 1128100069965738644230 Fact Sheet 1 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2016-10-31 1092086607381736729272 PSP 20 Feb 12, 2020 Fact Sheet Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. None /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf English documents 2216251 None 736675474163315314 2025-02-25 N /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 13 N N Sensor Solutions 2.2 MB SNSRSOLUTNTMFS N 1092086607381736729272 Selector Guide 1 /docs/en/product-selector-guide/SENSSELECT.pdf 2016-10-31 1424471489332715853854 PSP 21 May 13, 2024 Selector Guide For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. None /docs/en/product-selector-guide/SENSSELECT.pdf English documents 252964 None 553557935274807777 2025-02-25 N /docs/en/product-selector-guide/SENSSELECT.pdf Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf documents 553557935274807777 Selector Guide N en None Y pdf 13 N N Sensor Product Selector Guide 253.0 KB SENSSELECT N 1424471489332715853854 true Y Products

Documentation

Quick reference to our documentation types.

1-10 of 21 documents

Compact List

Application Note (15)
Show All

Design Files

Hardware

Quick reference to our board types.

1 hardware offering

  • Diff Pressure Click
    Evaluation and Development Boards

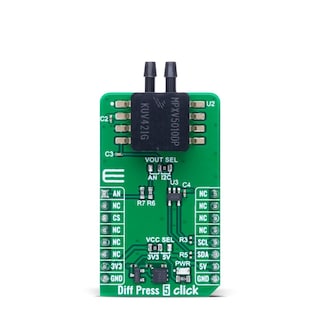

    Diff Pressure Click
