Differential and Gauge, Integrated Pressure Sensor (0 to 6 kPa)
The MPxx4006 family (MPVZ4006G and MPXV4006G series) offer state-of-the-art monolithic silicon pressure sensors targeting medical, consumer, and industrial devices.
- Combines advanced micro-machining techniques, thin-film metallization and bipolar processing
- Provides an accurate, high-level analog output signal, proportional to the applied pressure
- Supports on-chip temperature compensation and calibration
Product Details
Features
Key Features
- Ideally suited for microprocessor or microcontroller-based systems
- Available in gauge surface mount (SMT) or through-hole (DIP) configurations
- Durable thermoplastic (PPS) package
MPVZ4006G Features
- Designed for the appliance, consumer, health care and industrial markets
- The axial port has been modified to accommodate industrial grade tubing
- 2.5 percent maximum error over +10 °C to +60 °C with auto zero
- 5 percent maximum error over +10 °C to +60 °C without auto zero
MPXV4006G Features
- Temperature compensated over 10 °C to 60 °C

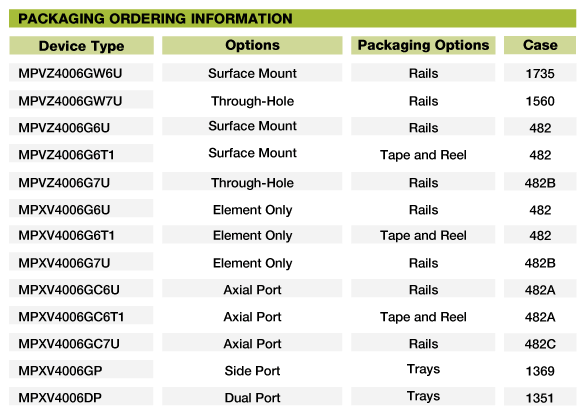

Part numbers include: MPVZ4006G6, MPVZ4006G6U, MPVZ4006GW6U, MPVZ4006GW7U, MPXV4006DP, MPXV4006GC6, MPXV4006GC6U, MPXV4006GC7U, MPXV4006GP.
