15 Watt Wireless Charging Receiver ICs

MWPR1516 Active
Programmable Wireless Charging Solutions

Click over video to play

The MWPR1516 wireless charging IC and reference platform, based on the Arm® Cortex®-M0+ core, extends our wireless charging portfolio to support up to 15 watt charging power.

  • Ideal for industrial and consumer applications, the MWPR1516 supports larger form factors that require faster charging times
  • The high level of integration enables the MWPR1516 IC to drive smaller PCB form factor designs and offer the possibility for applications to do thermal design based on the application requirement
  • This family adheres to the Wireless Power Consortium (WPC) and Medium Power Working Group (MPWG) specifications

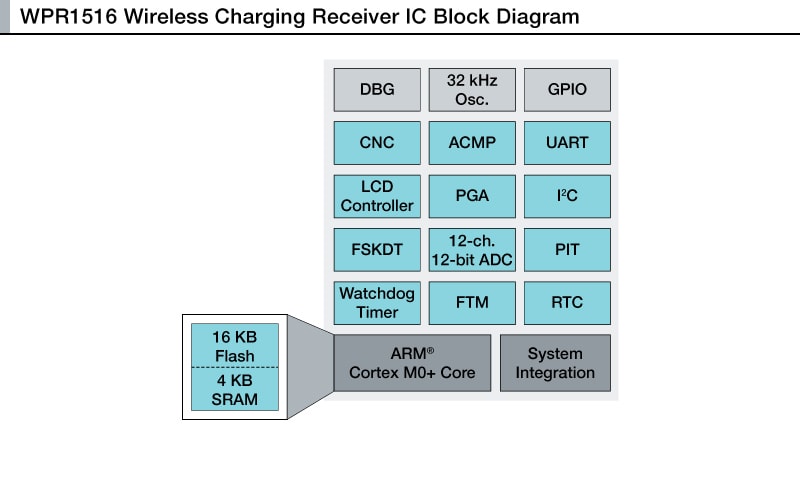

Block Diagram

MWPR1XXX Block Diagram

MWPR1XXX Block Diagram
Get diagram PDF

Features

  • Compliant and defined architecture based on the latest Wireless Power Consortium (WPC) and Medium Power Working Group (MPWG) specification
  • Internal LDO supports operation voltage of 3.5-20V
  • Flash-based IC based on Arm® Cortex-M0+ core
  • Specially designed FSK and CNC models
  • Optimized Foreign Object Detection algorithm
  • 12-bit ADC and PGA
  • USB/Adaptor Switcher
  • I²C and UART
  • CMP feature

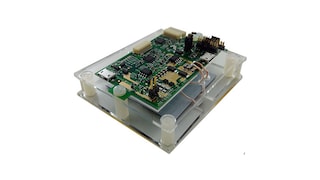

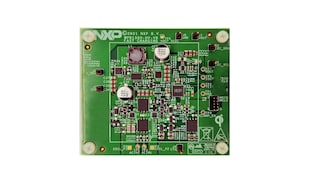

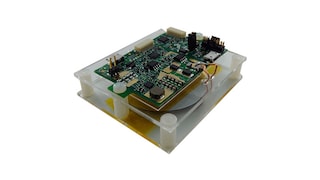

  • Reference solution with embedded wireless charger software libraries

Buy/Parametrics

2 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Package Type

Package Termination Count

GPIOs

On-Chip Authentication

AEC-Q100 compliant

MWPR1516CAL
Data Sheet

Active

1K @ US$1.67

WLCSP36

36

13

N

N

MWPR1516CFM
Data Sheet

Active

1K @ US$1.67

HUQFN32

32

13

N

N
