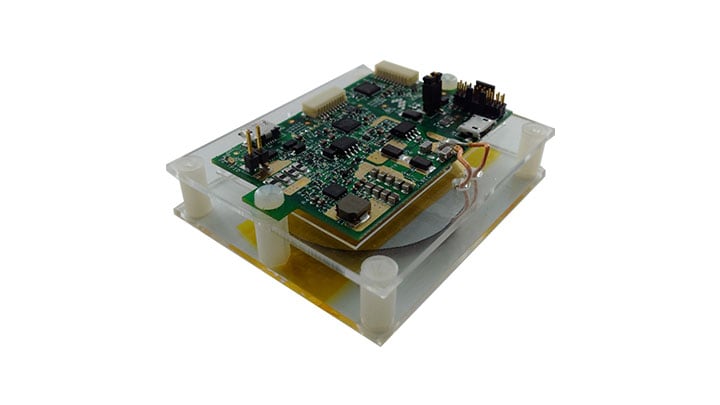

15 W Buck Wireless Charging Receiver Reference Design

WPR1500-BUCK Not Recommended for New Designs

Roll over image to zoom in

The 15-watt wireless charging receiver reference design with buck architecture uses the NXP® MWPR1516 receiver controller IC to manage and perform all control functions necessary to implement a wireless charging receiver solution.

Complies with the Wireless Power Consortium's (WPC) latest Medium Power Working Group (MPWG) specification and can be charged by any Qi-certified transmitter devices.

Medium Power Wireless Charger Receiver 15W WPC Compliant Solution - Fact Sheet

Block Diagram

Wireless Charging Receiver

WPR1500-BUCK Block Diagram
Get diagram PDF

Supported Devices

Power Management

Wireless Power

  • MWCT1x1x: 15 Watt Wireless Charging Transmitter ICs
  • MWPR1516: 15 Watt Wireless Charging Receiver ICs

Features

  • Buck architecture provides flexibility for various output voltage targeting different application charging voltage requirement
  • Specially designed FSK and CNC models ease the MPWG bi-directional communication development
  • Reference solution with NXP® embedded wireless charger software libraries provides customer design freedom, products differentiation and access to essential NXP IPs
  • Provides a friendly user interface FreeMASTER to encourage interaction
  • Provides a highly integrated and flexible platform to help customer shorten development time and reduce time to market
  • Pre-validated according to WPC compliance testing procedure
  • The demonstration board provides 5 V output with 3 A capability and has the capability for other output voltage (up to 18 V) to support dual cells or 3 cell devices
  • Interfaces
    • 12-bit ADC and PGA provide the easiest solution for small system level power loss detection to achieve FOD
    • USB/adaptor switcher to set wired charging as higher priority to save power
    • I²C and UART reserve the capability for receiver and main AP (application processor) communication for either security or content delivery

Buy Options

WPR1500-BUCK-Image

Click to expand

  • WPR1500-BUCK
    Active

  • 15 Watt Wireless Charging Receiver Reference Platform with BUCK Architecture.

  • For a quantity of 1
Order from distributors
N true 0 PSPWPR1500-BUCKen 2 Fact Sheet Fact Sheet t523 1 User Guide User Guide t792 1 en_US 1 1 MWPR1516CAL,MWPR1516CFM 1 English The WPR1516 wireless charging receiver IC family and reference designs extend NXP’s wireless charging portfolio to support up to 15W charging power. This new level of performance supports larger form factors, such as the latest smart phones and tablet devices that require faster charging times. This family adheres to the Wireless Power Consortium (WPC) and Medium Power Working Group (MPWG) specification and has the potential to support other future standards. With such a high level of integratio 1417042096778718728802 PSP 354.2 KB None None documents None 1417042096778718728802 /docs/en/fact-sheet/WPR1516FS.pdf 354188 /docs/en/fact-sheet/WPR1516FS.pdf WPR1516FS N N 2016-10-31 WPR1516 Wireless Charging Receiver IC - Fact Sheet /docs/en/fact-sheet/WPR1516FS.pdf /docs/en/fact-sheet/WPR1516FS.pdf Fact Sheet N Y 736675474163315314 2024-05-13 pdf N en Feb 12, 2020 Fact Sheet t523 Fact Sheet Fact Sheet Y N WPR1516 Wireless Charging Receiver IC - Fact Sheet true en_US 1 2 MWPR1516CAL,MWPR1516CFM 0 English This document describes how to use the WPR1500-BUCK medium power receiver reference board designed by Freescale. It supports 15 W, is compliant with the WPC MPWG specifications, and has the capability to support future standards. It is a low-cost reference solution that can be easily customized using the FreeMASTER tool. 1418882180976730901131 PSP 4.0 MB None None documents Y None 1418882180976730901131 /docs/en/user-guide/WPR1500BUCKMPUG.pdf 3972400 /docs/en/user-guide/WPR1500BUCKMPUG.pdf WPR1500BUCKMPUG N N 2016-10-31 WPR1500-BUCK Medium-Power Receiver V2.1 Reference Design User’s Guide /docs/en/user-guide/WPR1500BUCKMPUG.pdf /docs/en/user-guide/WPR1500BUCKMPUG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Sep 21, 2016 User Guide t792 User Guide User Guide Y N WPR1500-BUCK Medium-Power Receiver V2.1 Reference Design User’s Guide true en false 0 WPR1500-BUCK downloads en true 0 Y PSP Fact Sheet 1 /docs/en/fact-sheet/WPR1516FS.pdf 2016-10-31 1417042096778718728802 PSP 1 Feb 12, 2020 Fact Sheet Fact Sheet The WPR1516 wireless charging receiver IC family and reference designs extend NXP’s wireless charging portfolio to support up to 15W charging power. This new level of performance supports larger form factors, such as the latest smart phones and tablet devices that require faster charging times. This family adheres to the Wireless Power Consortium (WPC) and Medium Power Working Group (MPWG) specification and has the potential to support other future standards. With such a high level of integratio None /docs/en/fact-sheet/WPR1516FS.pdf English 354188 None Fact Sheet 2024-05-13 N /docs/en/fact-sheet/WPR1516FS.pdf WPR1516 Wireless Charging Receiver IC - Fact Sheet /docs/en/fact-sheet/WPR1516FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 1 N N WPR1516 Wireless Charging Receiver IC - Fact Sheet MWPR1516CAL,MWPR1516CFM 354.2 KB WPR1516FS N 1417042096778718728802 User Guide 1 /docs/en/user-guide/WPR1500BUCKMPUG.pdf 2016-10-31 1418882180976730901131 PSP 2 Sep 21, 2016 User Guide User Guide This document describes how to use the WPR1500-BUCK medium power receiver reference board designed by Freescale. It supports 15 W, is compliant with the WPC MPWG specifications, and has the capability to support future standards. It is a low-cost reference solution that can be easily customized using the FreeMASTER tool. Y None /docs/en/user-guide/WPR1500BUCKMPUG.pdf English 3972400 None User Guide 2023-06-19 N /docs/en/user-guide/WPR1500BUCKMPUG.pdf WPR1500-BUCK Medium-Power Receiver V2.1 Reference Design User’s Guide /docs/en/user-guide/WPR1500BUCKMPUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 0 N N WPR1500-BUCK Medium-Power Receiver V2.1 Reference Design User’s Guide MWPR1516CAL,MWPR1516CFM 4.0 MB WPR1500BUCKMPUG N 1418882180976730901131 true Y Designs
