High Voltage Wireless Charging Receiver

WPR1500-HV

Roll over image to zoom in

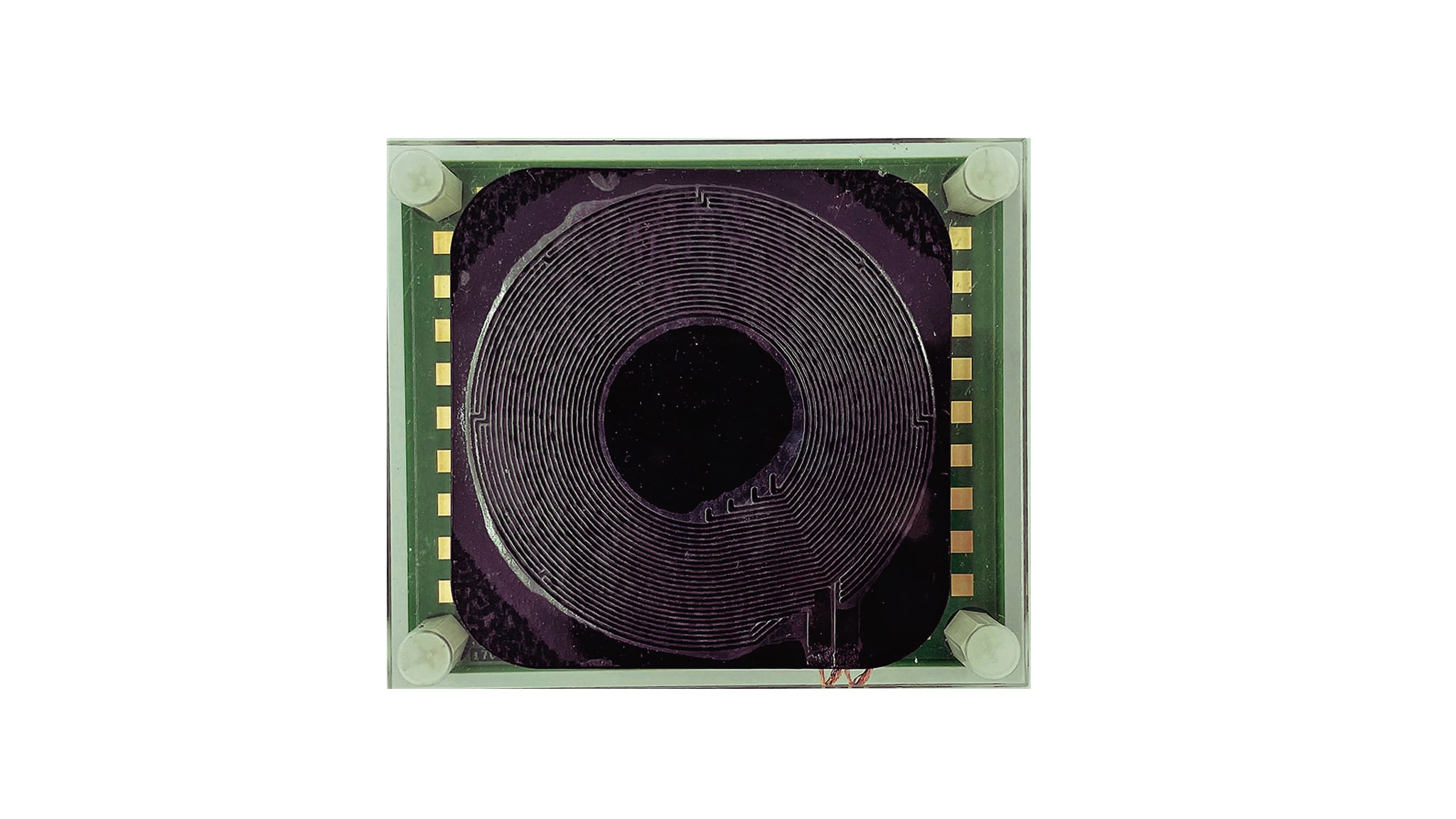

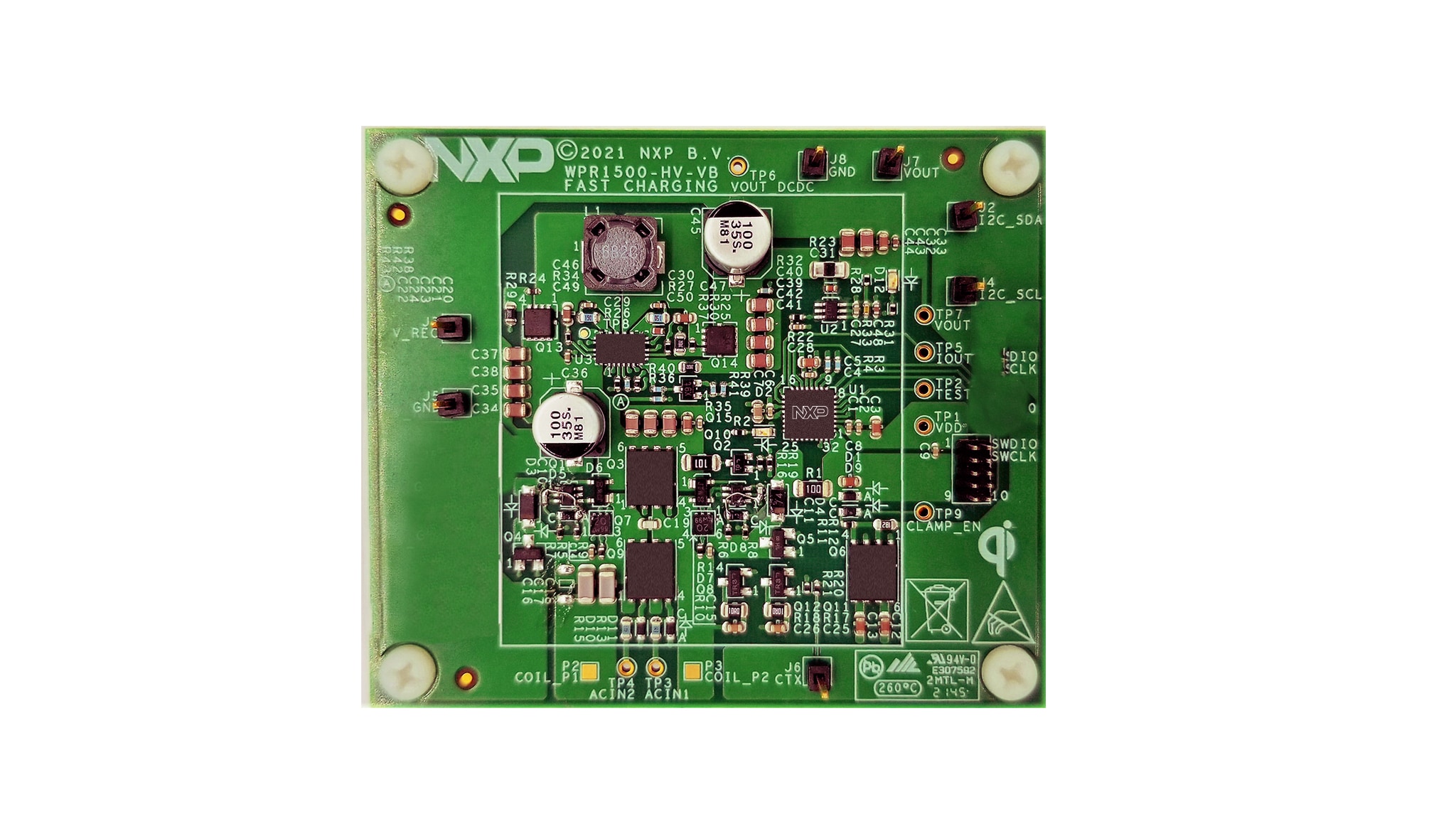

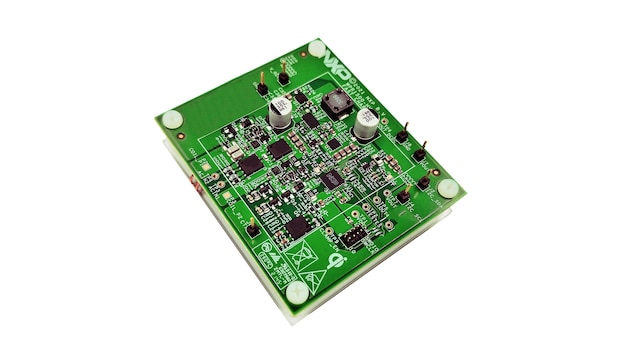

The high voltage wireless charging receiver reference platform with BUCK-BOOST architecture uses our MWPR1516 receiver controller IC to manage and perform all control functions necessary to implement a wireless charging receiver solution. The WPR1500-HV complies with the Wireless Power Consortium's latest Qi v1.3 specification including authentication and can be charged by any Qi-certified transmitter devices. High voltage management helps enable 30-watt power delivery and supports customized fast charging protocols.

Product Details

Features

  • Compliant with the EPP WPC Qi V1.3x specification, compatible with V1.2.4
  • Input voltage (3.5 V – 20 V AC peak) from the transmitter through the receiver coil
  • Output voltage range can be set from 3.5 V to 20 V
  • Default output power 15 W(12 V@1.25 A), can be extended up to 30 W(20 V@1.5 A)
  • Hardware protection of rectifier voltage, output voltage and output current
  • Software based solution to provide maximum design freedom and product differentiation
  • Enhanced EMC performance
  • Power transfer efficiency exceeds 80%

Buy Options

WPR1500-HV-Image

Click to expand

  • WPR1500-HV
    Active

  • High Voltage Wireless Charging Receiver.

  • $208.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
N true 0 PSPWPR1500-HVen 3 Release Note Release Note t933 1 User Guide User Guide t792 2 en_US en_US en User Guide User Guide 2 1 3 English This document describes the API of the Wireless Power Receiver library. The library enables users to evaluate the Qi wireless charging solution easily in customer applications. 1660597089734722254280 PSP 284.7 KB None None documents None 1660597089734722254280 /docs/en/user-guide/WPRSWLIBUG.pdf 284650 /docs/en/user-guide/WPRSWLIBUG.pdf WPRSWLIBUG documents N N 2022-08-15 Wireless Power Receiver SW Library User's Guide /docs/en/user-guide/WPRSWLIBUG.pdf /docs/en/user-guide/WPRSWLIBUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Aug 15, 2022 132339537837198660 User Guide D N Wireless Power Receiver SW Library User's Guide 2 3 English This document describes how to use WPR1500-HV receiver reference board designed by NXP. 1660597089296705920071 PSP 4.0 MB None None documents None 1660597089296705920071 /docs/en/user-guide/WPR1500HVWCRAUG.pdf 3966087 /docs/en/user-guide/WPR1500HVWCRAUG.pdf WPR1500HVWCRAUG documents N N 2022-08-15 WPR1500-HV Wireless Charging Receiver Application User’s Guide /docs/en/user-guide/WPR1500HVWCRAUG.pdf /docs/en/user-guide/WPR1500HVWCRAUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Aug 15, 2022 132339537837198660 User Guide D N WPR1500-HV Wireless Charging Receiver Application User’s Guide Release Note Release Note 1 3 3 English WPR1500-HV Receiver Version 3.0 provides the EPP (15W) receiver solution by using the NXP WPR1516 chip and the WPR1516 EPP receiver reference board. 1660597504443719445058 PSP 117.8 KB None None documents None 1660597504443719445058 /docs/en/release-note/WPR1500HVWCRRN.pdf 117787 /docs/en/release-note/WPR1500HVWCRRN.pdf WPR1500HVWCRRN documents N N 2022-08-15 WPR1500-HV Wireless Charging Receiver Release Notes /docs/en/release-note/WPR1500HVWCRRN.pdf /docs/en/release-note/WPR1500HVWCRRN.pdf Release Note N 487216834315582133 2022-12-07 pdf N en Aug 15, 2022 487216834315582133 Release Note D N WPR1500-HV Wireless Charging Receiver Release Notes false 0 WPR1500-HV downloads en true 0 Y PSP Release Note 1 /docs/en/release-note/WPR1500HVWCRRN.pdf 2022-08-15 1660597504443719445058 PSP 3 Aug 15, 2022 Release Note WPR1500-HV Receiver Version 3.0 provides the EPP (15W) receiver solution by using the NXP WPR1516 chip and the WPR1516 EPP receiver reference board. None /docs/en/release-note/WPR1500HVWCRRN.pdf English documents 117787 None 487216834315582133 2022-12-07 N /docs/en/release-note/WPR1500HVWCRRN.pdf WPR1500-HV Wireless Charging Receiver Release Notes /docs/en/release-note/WPR1500HVWCRRN.pdf documents 487216834315582133 Release Note N en None D pdf 3 N N WPR1500-HV Wireless Charging Receiver Release Notes 117.8 KB WPR1500HVWCRRN N 1660597504443719445058 User Guide 2 /docs/en/user-guide/WPRSWLIBUG.pdf 2022-08-15 1660597089734722254280 PSP 1 Aug 15, 2022 User Guide This document describes the API of the Wireless Power Receiver library. The library enables users to evaluate the Qi wireless charging solution easily in customer applications. None /docs/en/user-guide/WPRSWLIBUG.pdf English documents 284650 None 132339537837198660 2022-12-07 N /docs/en/user-guide/WPRSWLIBUG.pdf Wireless Power Receiver SW Library User's Guide /docs/en/user-guide/WPRSWLIBUG.pdf documents 132339537837198660 User Guide N en None D pdf 3 N N Wireless Power Receiver SW Library User's Guide 284.7 KB WPRSWLIBUG N 1660597089734722254280 /docs/en/user-guide/WPR1500HVWCRAUG.pdf 2022-08-15 1660597089296705920071 PSP 2 Aug 15, 2022 User Guide This document describes how to use WPR1500-HV receiver reference board designed by NXP. None /docs/en/user-guide/WPR1500HVWCRAUG.pdf English documents 3966087 None 132339537837198660 2022-12-07 N /docs/en/user-guide/WPR1500HVWCRAUG.pdf WPR1500-HV Wireless Charging Receiver Application User’s Guide /docs/en/user-guide/WPR1500HVWCRAUG.pdf documents 132339537837198660 User Guide N en None D pdf 3 N N WPR1500-HV Wireless Charging Receiver Application User’s Guide 4.0 MB WPR1500HVWCRAUG N 1660597089296705920071 true Y Designs
