WPR1500-HVMPP
-
High Voltage MPP Wireless Charging Receiver.
High Voltage MPP Wireless Charging Receiver

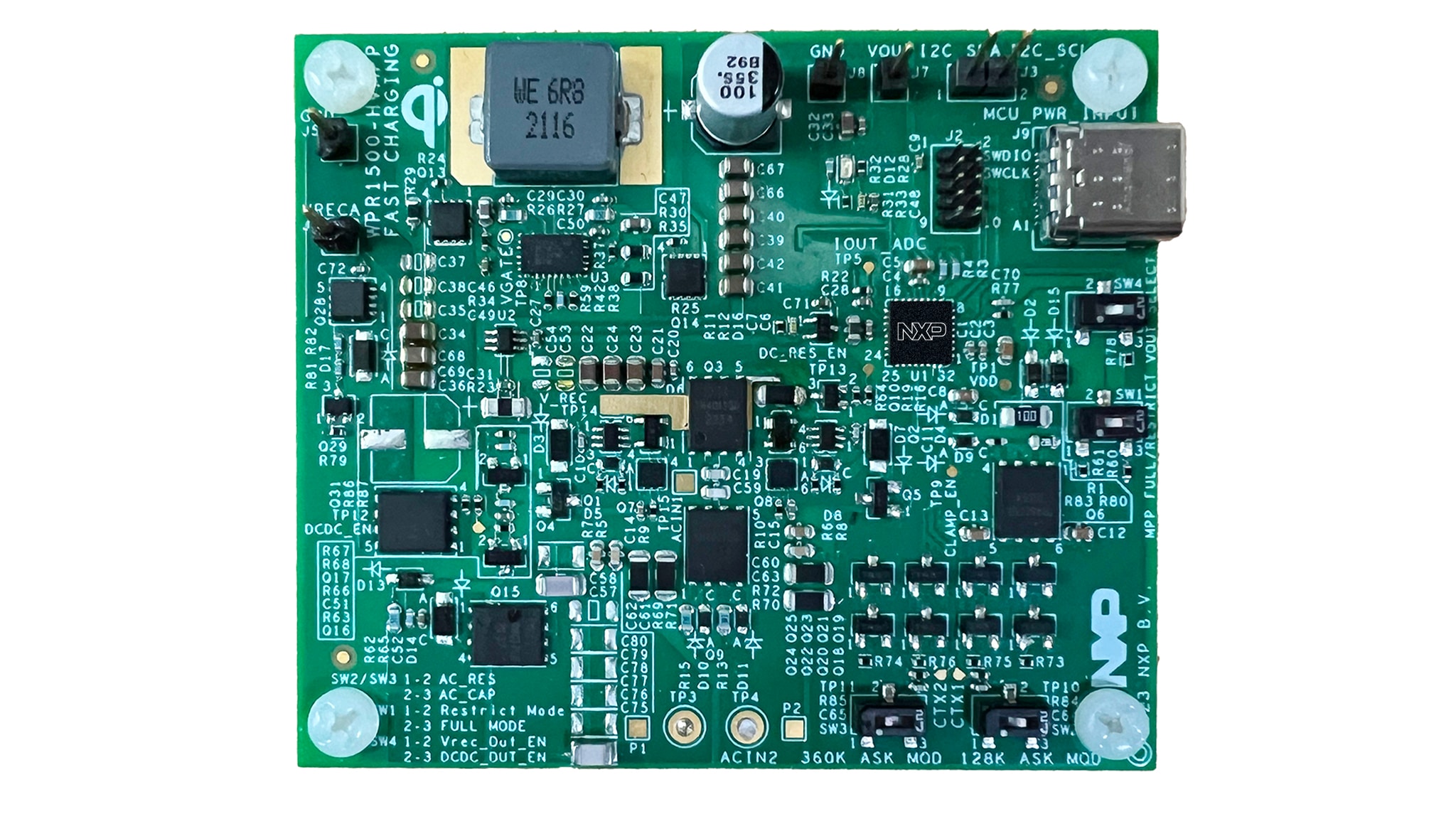

The high voltage wireless charging receiver reference platform with BUCK-BOOST architecture uses the NXP MWPR1516 receiver controller IC to manage and perform all control functions necessary to implement a wireless charging receiver solution. Complies with the Wireless Power Consortium's latest Qi v2.0 (MPP) specification and can be charged by any Qi-certified transmitter devices. The system supports customized protocols to enable 30-watt power delivery.
Product Details
Features
MPP Compliance
-
Compliant with the MPP WPC Qi V2.x specification
Input Voltage
-

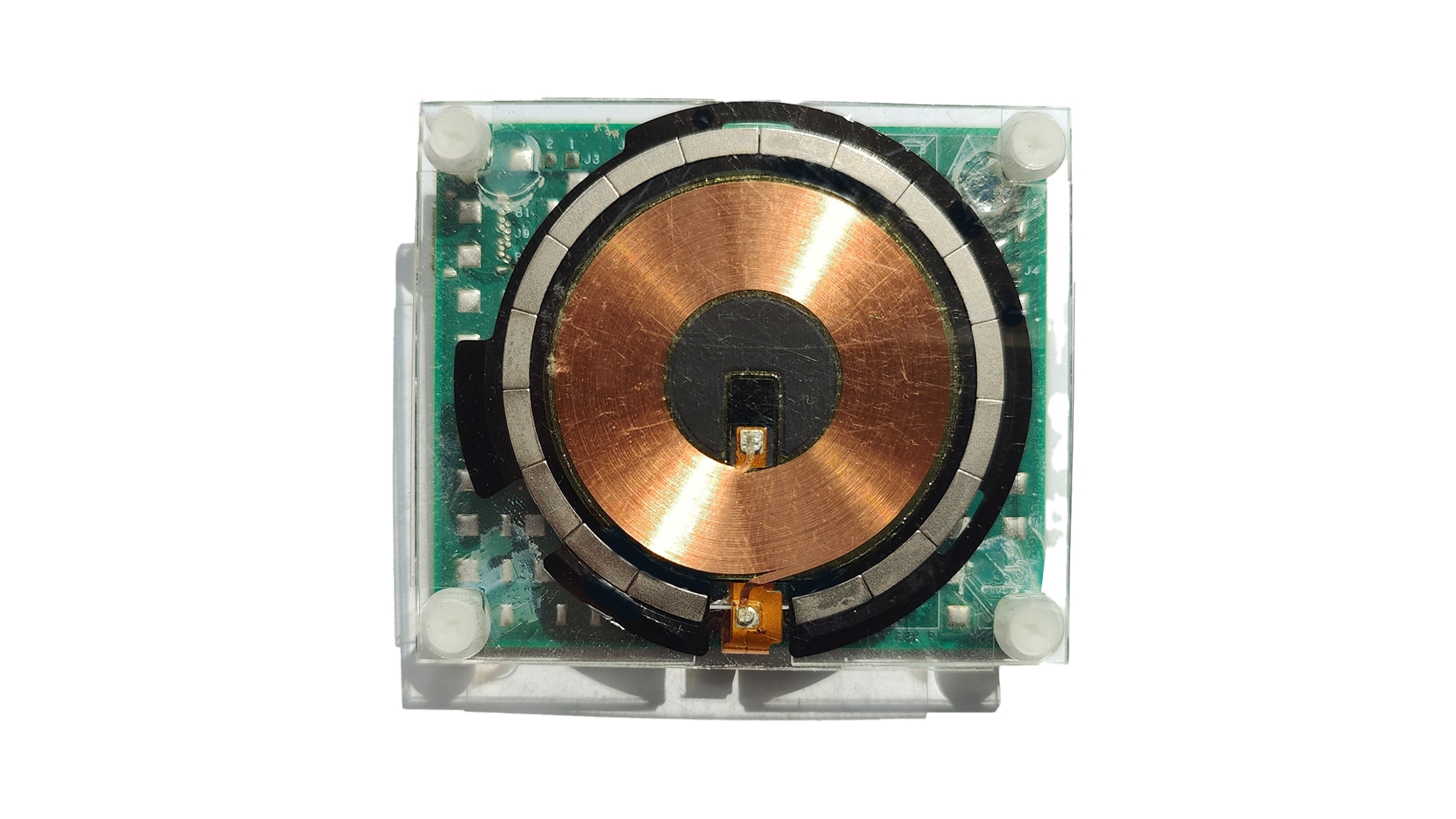

Input voltage (3.5 V – 20 V AC peak) from the transmitter through the receiver coil
Output Voltage
-
Output voltage range can be set from 3.5 V to 20 V
Modes of Operation
-
Support MPP full mode up to 15W(12V@1.25A) and restricted mode up to 5W(5V@1A)
Hardware Protection
-
Protection of rectifier voltage, output voltage and output current
FSK
-
Supports FSK demodulation
MPP Features
-
Support MPP features like Restricted to Full mode Transition, MPLA, Cloak, etc
