Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control

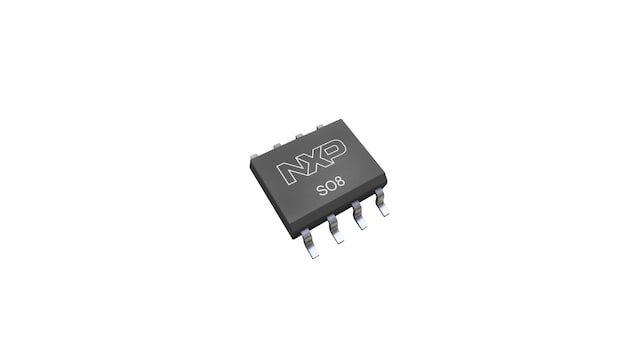

The TEA1792T is a member of the new generation of Synchronous Rectifier (SR) controller ICs for switched mode power supplies. Its high level of integration allows the design of a cost-effective power supply with a very low number of external components. The TEA1792T is a controller IC dedicated to synchronous rectification on the secondary side of discontinuous conduction mode and quasi-resonant flyback converters. The TEA1792T is fabricated in a Silicon-On-Insulator (SOI) process.
Product Details
Features
Key Features
- Accurate synchronous rectification functionality
- Wide supply voltage range (8.5 V to 38 V)
- High level of integration, resulting in a very low external component count
- High driver output voltage of 10 V to drive all MOSFET brands to the lowest RDSon
- Selectable regulation level for driver stage
- Low current consumption
- High system efficiency from no load to full load
- Undervoltage protection
NXP GreenChip
- This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.
Buy/Parametrics
1 result
Include 0 NRND
Part | Order | CAD Model | Status | Package Type | Minimum SR active time (μs) | Driver activation voltage (mV) | Driver regulation voltage (mV) | Driver deactivation voltage (mV) | Driver activation delay time (ns) |
|---|---|---|---|---|---|---|---|---|---|
Active | SO8 | 1.8 | -220 | -42 | -12 | 75 |
4 documents
Compact List
Application Note (1)
Brochure (1)
Data Sheet (1)
User Guide (1)
Design Resources
Hardware
Quick reference to our
board types.
1 hardware offering
-
Evaluation and Development BoardsTEA1755 90 W / 19.5 V QR / DCM Flyback + PFC Combo Controller Demo Board
