Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control

TEA1791AT Active

Roll over image to zoom in

The TEA1791AT is a member of the new generation of Synchronous Rectifier (SR) controller ICs for switched mode power supplies. Its high level of integration allows the design of a cost-effective power supply with a very low number of external components. The TEA1791AT is a controller IC dedicated to synchronous rectification on the secondary side of discontinuous conduction mode and quasi-resonant flyback converters. The TEA1791AT is fabricated in a Silicon On Insulator (SOI) process.

Product Details

Block Diagram

Choose a diagram:

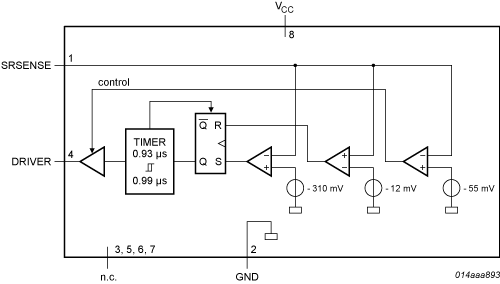

Block diagram TEA1791AT

TEA1791AT Block Diagram

TEA1791AT Block Diagram
Get diagram PDF

Features

Key Features

  • Accurate synchronous rectification functionality
  • Wide supply voltage range (8.5 V to 38 V)
  • High level of integration, resulting in a very low external component count
  • High driver output voltage of 10 V to drive all MOSFET brands to the lowest RDSon
  • Low current consumption
  • High system efficiency from no load to full load
  • Undervoltage protection

NXP GreenChip

  • This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.

Buy/Parametrics

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPTEA1791ATen 3 Application Note Application Note t789 1 Data Sheet Data Sheet t520 1 User Guide User Guide t792 1 en_US en_US en Data Sheet Data Sheet 1 1 TEA1791AT 1.0 English 1442063976481726498090 PSP 247.2 KB None None documents None 1442063976481726498090 /docs/en/data-sheet/TEA1791AT.pdf 247223 /docs/en/data-sheet/TEA1791AT.pdf TEA1791AT documents N 2012-05-28 GreenChip synchronous rectifier controller /docs/en/data-sheet/TEA1791AT.pdf /docs/en/data-sheet/TEA1791AT.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Jun 7, 2010 980000996212993340 Data Sheet N GreenChip synchronous rectifier controller Application Note Application Note 1 2 1.0 English 1442088856303710115238 PSP 70.0 KB None None documents None 1442088856303710115238 /docs/en/application-note/AN10781.pdf 70000 /docs/en/application-note/AN10781.pdf AN10781 documents N 2015-09-12 GreenChip SR TEA1791 integrated synchronous rectification controller /docs/en/application-note/AN10781.pdf /docs/en/application-note/AN10781.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 9, 2009 645036621402383989 Application Note Y N GreenChip SR TEA1791 integrated synchronous rectification controller User Guide User Guide 1 3 1.0 English 1442125780123733670040 PSP 993.0 KB None None documents None 1442125780123733670040 /docs/en/user-guide/UM10444.pdf 993000 /docs/en/user-guide/UM10444.pdf UM10444 documents N 2015-09-12 90 W notebook adapter with TEA1753, TEA1703 and TEA1791 /docs/en/user-guide/UM10444.pdf /docs/en/user-guide/UM10444.pdf User Guide N 132339537837198660 2022-12-07 pdf en Apr 4, 2011 132339537837198660 User Guide Y N 90 W notebook adapter with TEA1753, TEA1703 and TEA1791 false 0 TEA1791AT downloads en true 1 Y PSP Application Note 1 /docs/en/application-note/AN10781.pdf 2015-09-12 1442088856303710115238 PSP 2 Feb 9, 2009 Application Note None /docs/en/application-note/AN10781.pdf English documents 70000 None 645036621402383989 2022-12-07 /docs/en/application-note/AN10781.pdf GreenChip SR TEA1791 integrated synchronous rectification controller /docs/en/application-note/AN10781.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N GreenChip SR TEA1791 integrated synchronous rectification controller 70.0 KB AN10781 N 1442088856303710115238 Data Sheet 1 /docs/en/data-sheet/TEA1791AT.pdf 2012-05-28 1442063976481726498090 PSP 1 Jun 7, 2010 Data Sheet None /docs/en/data-sheet/TEA1791AT.pdf English documents 247223 None 980000996212993340 2022-12-07 /docs/en/data-sheet/TEA1791AT.pdf GreenChip synchronous rectifier controller /docs/en/data-sheet/TEA1791AT.pdf documents 980000996212993340 Data Sheet N en None pdf 1.0 N GreenChip synchronous rectifier controller TEA1791AT 247.2 KB TEA1791AT N 1442063976481726498090 User Guide 1 /docs/en/user-guide/UM10444.pdf 2015-09-12 1442125780123733670040 PSP 3 Apr 4, 2011 User Guide None /docs/en/user-guide/UM10444.pdf English documents 993000 None 132339537837198660 2022-12-07 /docs/en/user-guide/UM10444.pdf 90 W notebook adapter with TEA1753, TEA1703 and TEA1791 /docs/en/user-guide/UM10444.pdf documents 132339537837198660 User Guide N en None Y pdf 1.0 N 90 W notebook adapter with TEA1753, TEA1703 and TEA1791 993.0 KB UM10444 N 1442125780123733670040 true Y Products

Documentation

Quick reference to our documentation types.

Filters

3 documents

Compact List

Design Files

Hardware

Quick reference to our board types.
Filters

2 hardware offerings

  • 165W Battery Charger
    Complementary Silicon or Component

    165W Battery Charger

    165W Battery Charger solution customize to Lithium or Lead acid battery charger. It feature MCU controller to manage the Current ,Voltage and temperature on batter charg...
    165W Battery Charger By Sinota technology Co. ,LTD Gold Partner
  • 30W Dual Port PD Charger
    Complementary Silicon or Component

    30W Dual Port PD Charger

    30W 30W Dual Port PD Charger featured Type-C and USB A two port, Type-C port support PD3.0/PPS/QC4.0 27W output ,and USB-A port with 12W max output power.
    30W Dual Port PD Charger By Sinota technology Co. ,LTD Gold Partner

To find additional partner offerings that support this product, visit our Partner Marketplace.
