Dual Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control

TEA1795T Active

Roll over image to zoom in

The TEA1795T is a member of the new generation of Synchronous Rectifier (SR) controller ICs for switched mode power supplies. Its high level of integration enables the design of a cost-effective power supply with a minimum number of external components. The TEA1795T is a dedicated controller IC for synchronous rectification on the secondary side of resonant converters. It has two driver stages for driving the SR MOSFETs, which are rectifying the outputs of the central tap secondary transformer windings. The two gate driver stages have their own sensing inputs and operate independently of each other. The TEA1795T is fabricated in a Silicon On Insulator (SOI) process.

Product Details

Block Diagram

Choose a diagram:

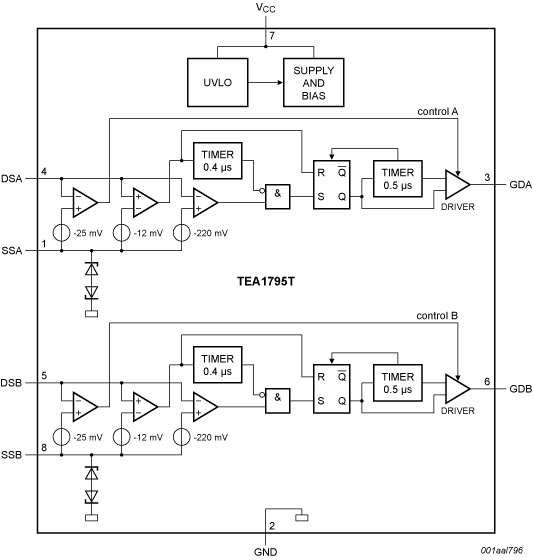

TEA1795T Block Diagram

TEA1795T Block Diagram

Block diagram TEA1795T

Get diagram PDF

Features

Key Features

  • Accurate synchronous rectification functionality
  • Wide supply voltage range (8.5 V to 38 V)
  • Separate sense inputs for sensing the drain and source voltage of each SR MOSFET
  • High level of integration, resulting in a minimum external component count
  • High driver output voltage of 10 V to drive all MOSFET brands to the lowest RDSon
  • Low current consumption
  • High system efficiency from no load to full load
  • UnderVoltage Protection (UVP)

NXP GreenChip

  • This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.

Buy/Parametrics

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPTEA1795Ten 4 Application Note Application Note t789 1 Data Sheet Data Sheet t520 1 User Guide User Guide t792 2 en_US en_US en Data Sheet Data Sheet 1 1 TEA1795T 1.0 English 1442055782681736941855 PSP 137.5 KB None None documents None 1442055782681736941855 /docs/en/data-sheet/TEA1795T.pdf 137470 /docs/en/data-sheet/TEA1795T.pdf TEA1795T documents N 2015-02-02 GreenChip synchronous rectifier controller /docs/en/data-sheet/TEA1795T.pdf /docs/en/data-sheet/TEA1795T.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Nov 4, 2010 980000996212993340 Data Sheet N GreenChip synchronous rectifier controller Application Note Application Note 1 2 1.0 English 1442087307521712356880 PSP 768.0 KB None None documents None 1442087307521712356880 /docs/en/application-note/AN10954.pdf 768000 /docs/en/application-note/AN10954.pdf AN10954 documents N 2015-09-12 GreenChip SR TEA1795T dual synchronous rectification driver IC /docs/en/application-note/AN10954.pdf /docs/en/application-note/AN10954.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 14, 2010 645036621402383989 Application Note Y N GreenChip SR TEA1795T dual synchronous rectification driver IC User Guide User Guide 2 3 1.0 English 1442125645696737866221 PSP 763.0 KB None None documents None 1442125645696737866221 /docs/en/user-guide/UM10465.pdf 763000 /docs/en/user-guide/UM10465.pdf UM10465 documents N 2015-09-12 TEA1713 and TEA1795 demo board for 150 W all-in-one PC adapter /docs/en/user-guide/UM10465.pdf /docs/en/user-guide/UM10465.pdf User Guide N 132339537837198660 2022-12-07 pdf en Sep 28, 2011 132339537837198660 User Guide Y N TEA1713 and TEA1795 demo board for 150 W all-in-one PC adapter 4 1.0 English 1442125266425703678451 PSP 528.0 KB None None documents None 1442125266425703678451 /docs/en/user-guide/UM10431.pdf 528000 /docs/en/user-guide/UM10431.pdf UM10431 documents N 2015-09-12 GreenChip TEA1795T synchronous rectifier controller demoboard /docs/en/user-guide/UM10431.pdf /docs/en/user-guide/UM10431.pdf User Guide N 132339537837198660 2022-12-07 pdf en Oct 26, 2010 132339537837198660 User Guide Y N GreenChip TEA1795T synchronous rectifier controller demoboard false 0 TEA1795T downloads en true 1 Y PSP Application Note 1 /docs/en/application-note/AN10954.pdf 2015-09-12 1442087307521712356880 PSP 2 Dec 14, 2010 Application Note None /docs/en/application-note/AN10954.pdf English documents 768000 None 645036621402383989 2022-12-07 /docs/en/application-note/AN10954.pdf GreenChip SR TEA1795T dual synchronous rectification driver IC /docs/en/application-note/AN10954.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N GreenChip SR TEA1795T dual synchronous rectification driver IC 768.0 KB AN10954 N 1442087307521712356880 Data Sheet 1 /docs/en/data-sheet/TEA1795T.pdf 2015-02-02 1442055782681736941855 PSP 1 Nov 4, 2010 Data Sheet None /docs/en/data-sheet/TEA1795T.pdf English documents 137470 None 980000996212993340 2022-12-07 /docs/en/data-sheet/TEA1795T.pdf GreenChip synchronous rectifier controller /docs/en/data-sheet/TEA1795T.pdf documents 980000996212993340 Data Sheet N en None pdf 1.0 N GreenChip synchronous rectifier controller TEA1795T 137.5 KB TEA1795T N 1442055782681736941855 User Guide 2 /docs/en/user-guide/UM10465.pdf 2015-09-12 1442125645696737866221 PSP 3 Sep 28, 2011 User Guide None /docs/en/user-guide/UM10465.pdf English documents 763000 None 132339537837198660 2022-12-07 /docs/en/user-guide/UM10465.pdf TEA1713 and TEA1795 demo board for 150 W all-in-one PC adapter /docs/en/user-guide/UM10465.pdf documents 132339537837198660 User Guide N en None Y pdf 1.0 N TEA1713 and TEA1795 demo board for 150 W all-in-one PC adapter 763.0 KB UM10465 N 1442125645696737866221 /docs/en/user-guide/UM10431.pdf 2015-09-12 1442125266425703678451 PSP 4 Oct 26, 2010 User Guide None /docs/en/user-guide/UM10431.pdf English documents 528000 None 132339537837198660 2022-12-07 /docs/en/user-guide/UM10431.pdf GreenChip TEA1795T synchronous rectifier controller demoboard /docs/en/user-guide/UM10431.pdf documents 132339537837198660 User Guide N en None Y pdf 1.0 N GreenChip TEA1795T synchronous rectifier controller demoboard 528.0 KB UM10431 N 1442125266425703678451 true Y Products

Documentation

Quick reference to our documentation types.

Filters

4 documents

Compact List

Design Files

Hardware

Quick reference to our board types.
Filters

2 hardware offerings

  • 165W Battery Charger
    Complementary Silicon or Component

    165W Battery Charger

    165W Battery Charger solution customize to Lithium or Lead acid battery charger. It feature MCU controller to manage the Current ,Voltage and temperature on batter charg...
    165W Battery Charger By Sinota technology Co. ,LTD Gold Partner
  • 30W Dual Port PD Charger
    Complementary Silicon or Component

    30W Dual Port PD Charger

    30W 30W Dual Port PD Charger featured Type-C and USB A two port, Type-C port support PD3.0/PPS/QC4.0 27W output ,and USB-A port with 12W max output power.
    30W Dual Port PD Charger By Sinota technology Co. ,LTD Gold Partner
