OM40003
-
LPCXpresso54018 Development Board.

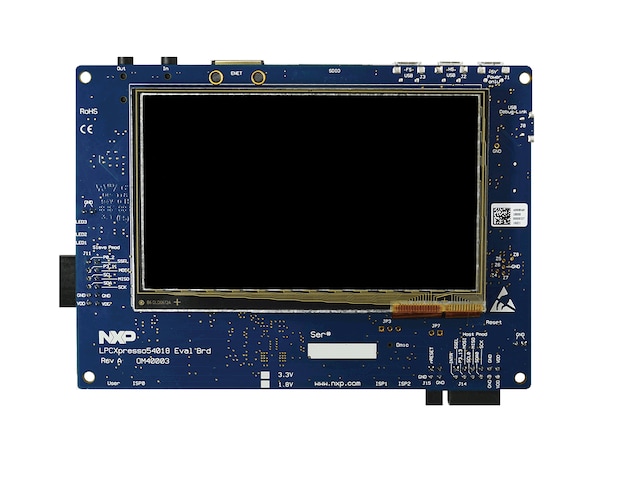

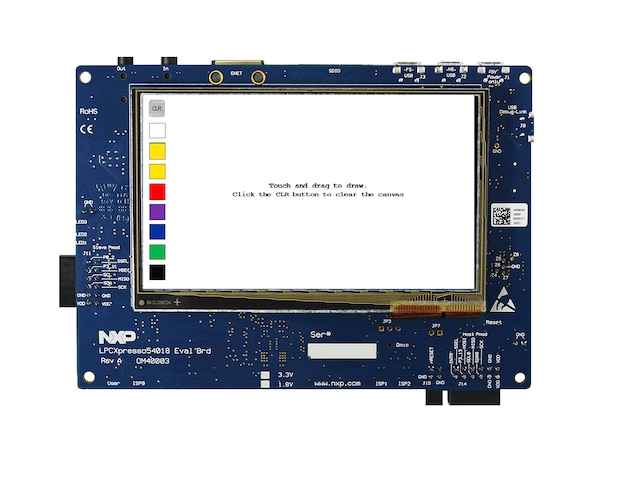

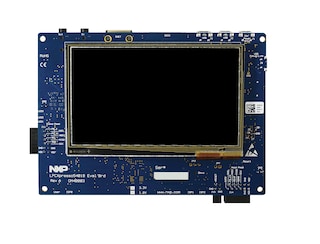

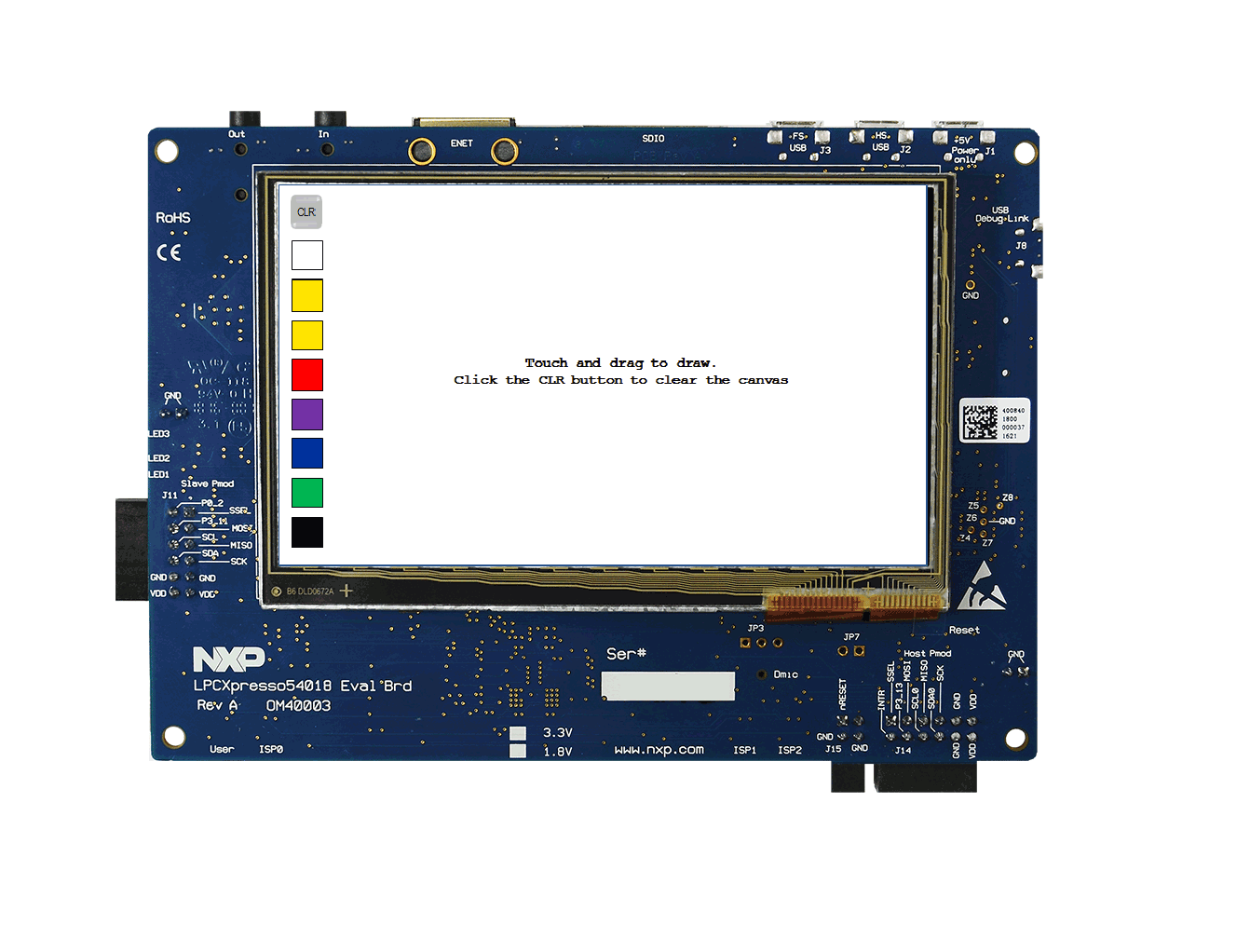

- 1x LPCXpresso54018 Development Board, pre-loaded with demonstration program showing emWIN example.
LPCXpresso54018 Development Board

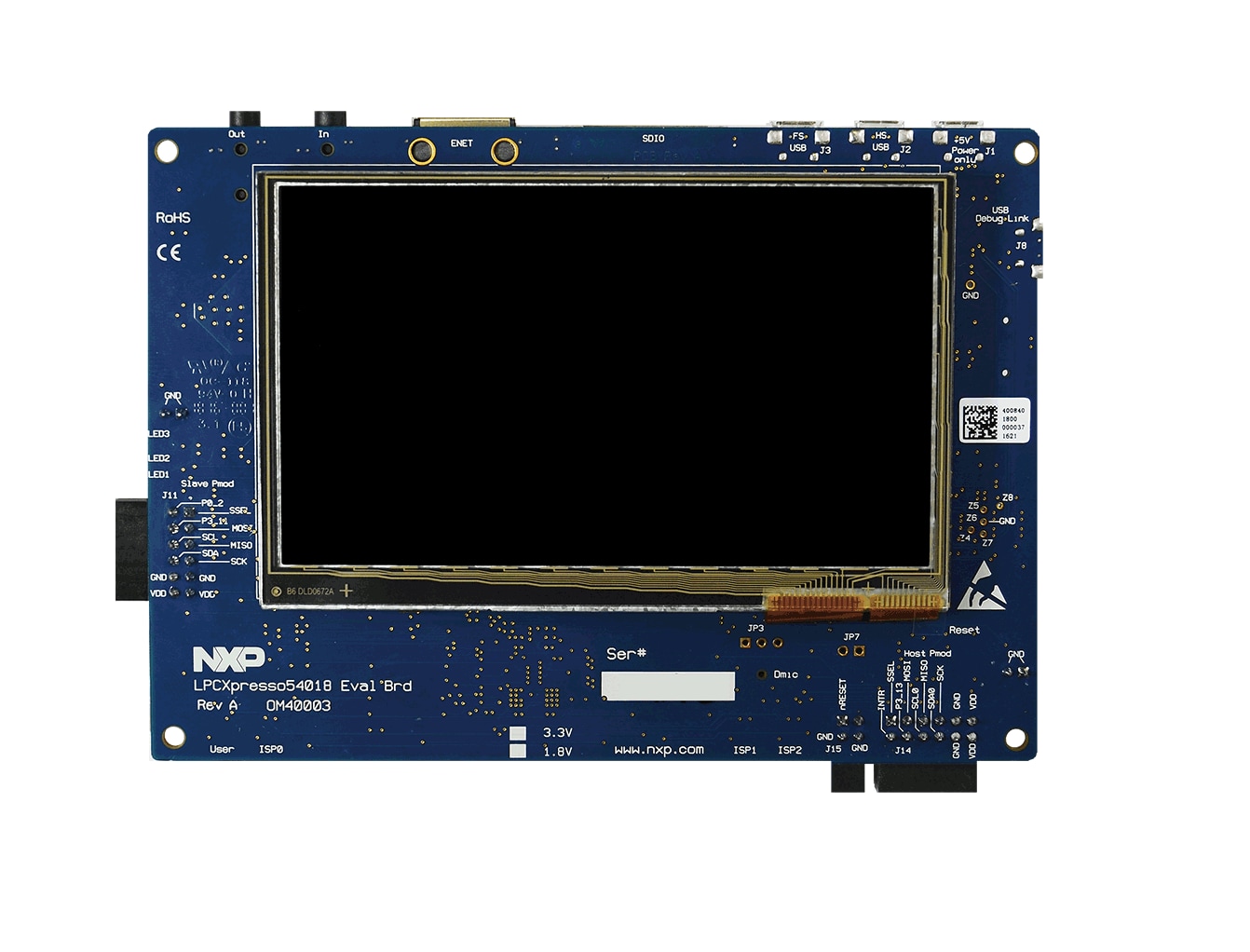

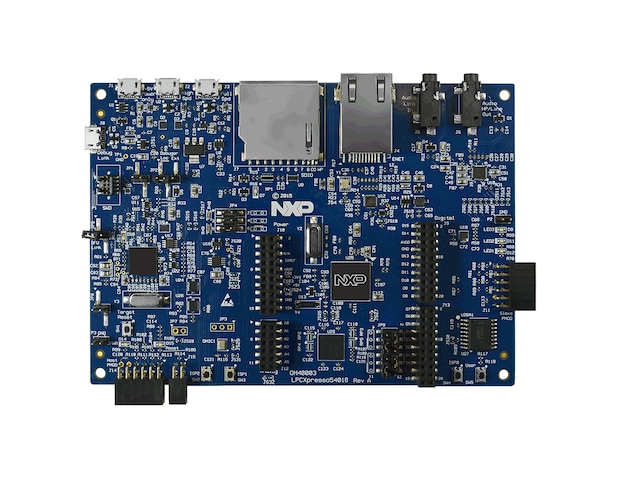

The board is comprised of target LPC54018 device with an on-board, CMSIS-DAP / SEGGER® J-Link compatible debug probe. The onboard probe is compatible with MCUXpresso IDE and other leading toolchains such as those from Keil™ and IAR®. The board is also equipped with a standard 10-pin header enabling the use of 3rd party debug probes. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC540xx devices.
MCUXpresso configuration tools and extensive SDK drivers/examples are available for the board at mcuxpresso.nxp.com.
Product Details
Features
Debug
- Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
- UART and SPI port bridging from LPC54018 target to USB via the onboard debug probe
- Support for external debug probe
Memory
- Winbond 128 Mb W25Q128JVFIM Quad-SPI flash
- Winbond 128 Mb W9812G6JB-6I SDRAM
Connectivity
- High and full speed USB ports with micro A/B connector for host or device functionality
- 10/100 Mbit/s Ethernet (RJ45 connector)
- Multiple Expansion options, including Arduino® UNO and PMod
Audio
- Knowles SPH0641LM4H digital microphone
- Stereo audio codec with line in/out
Sensor
- NXP MMA8652FCR1 accelerometer
Power Management
- Built-in power consumption measurement for target LPC54018 MCU
User Components
- 3 x user LEDs
- Plus Reset
- ISP (3)
- User buttons
Buy Options
Documentation
Quick reference to our documentation types.
3 documents
-
User Guide
Get Started with the LPCXpresso54018Getting Started
-
User Guide
LPCXpresso54608/54618/54628/54018/54S018 Board User ManualGetting Started
-
Supporting Information
Datasheet for Rocktech LCD module
Design Resources
Design Files
Quick reference to our
design files types.
3 design files
-
Printed Circuit Boards and Schematics
LPCXpresso54608/54618/54628/54018/54S018 schematic, design and manufacturing files
-
Printed Circuit Boards and Schematics
LPCXpresso54608/54618/54628/54018/54S018 schematic, design and manufacturing files
-
Printed Circuit Boards and Schematics
Schematic design source files in OrCAD format
Software
Quick reference to our software types.
5 software files
-
HMI Design Software
NXP emWin Libraries
-
Examples and Quick Start Software
MCUXpresso SDK Builder for the LPCXpresso54018 Development Board
-
Libraries
LVGL Open-Source Graphics Library
-
