eUSB2 to USB2 Redriver

PTN3222
Active

Roll over image to zoom in

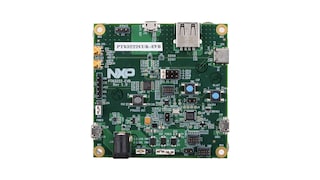

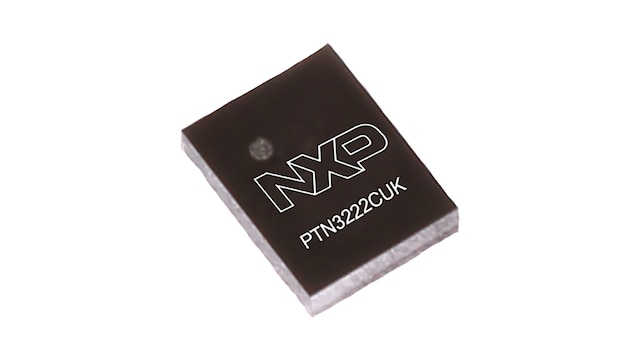

The PTN3222 device family is a set of 1-port eUSB2 to USB2 redrivers, enabling advanced process node SoCs to connect with traditional legacy USB2 interface. Family offers a variety of devices with different features to fit into the different SoCs available on the market. For more information about the family features options, please check the summary table below.

Block Diagram

Choose a diagram:

eUSB2 to USB2 Redriver

PTN3222CUK - Block Diagram

PTN3222CUK Applications Block Diagram

PTN3222CUK - Applications Block Diagram
Get diagram PDF

Features

Multiple Packages

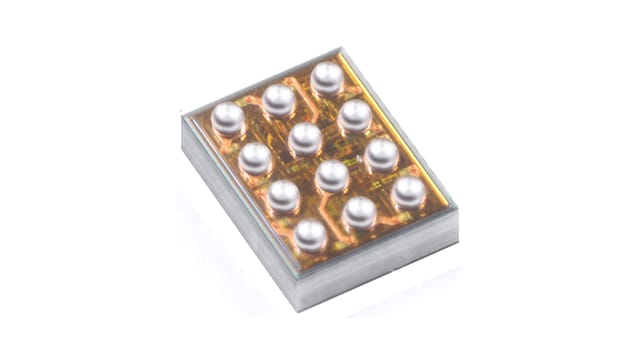

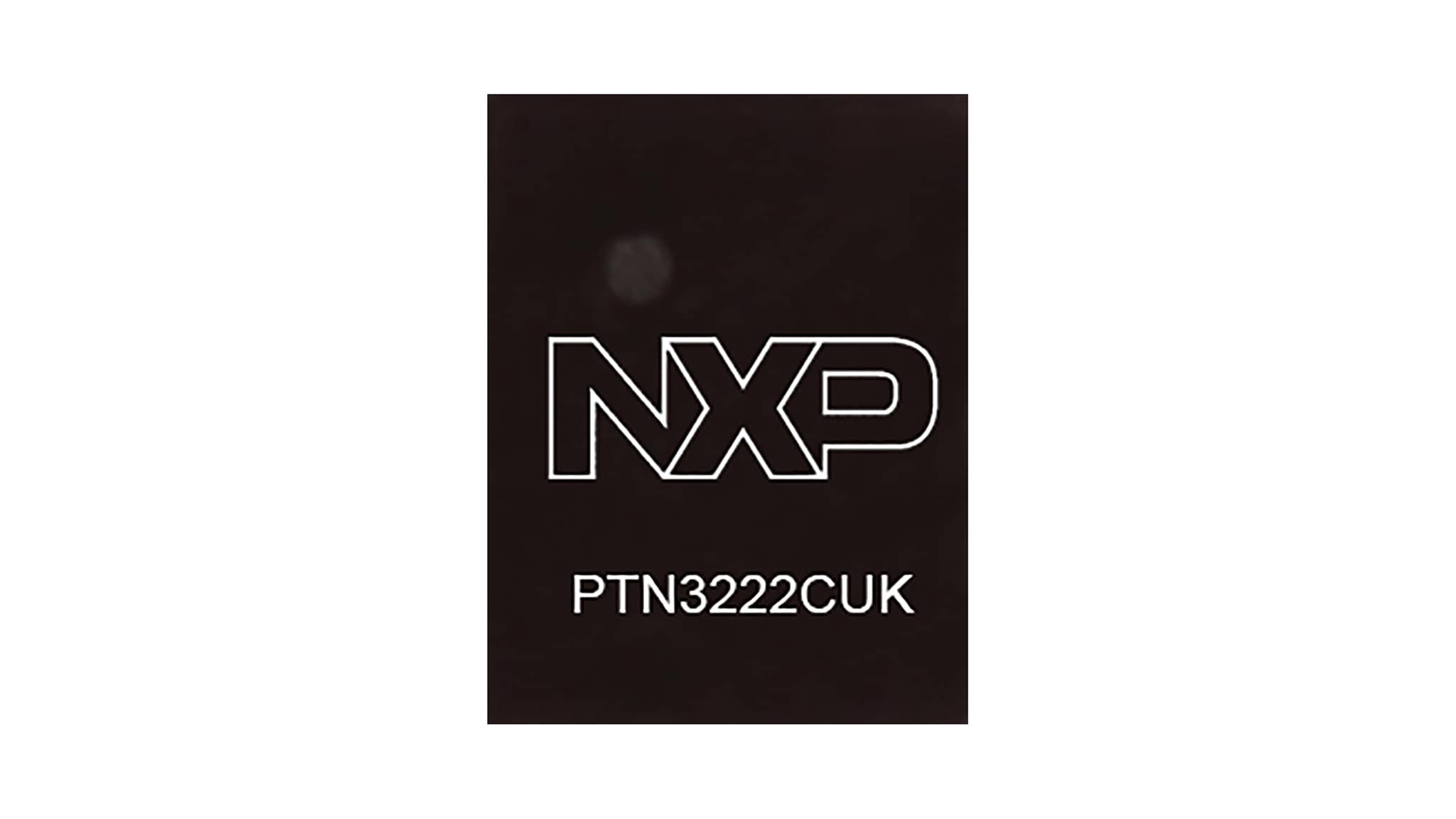

  • WLCSP: 1.55 mm x 1.18 mm x 0.455 mm body, 0.35 mm pitch

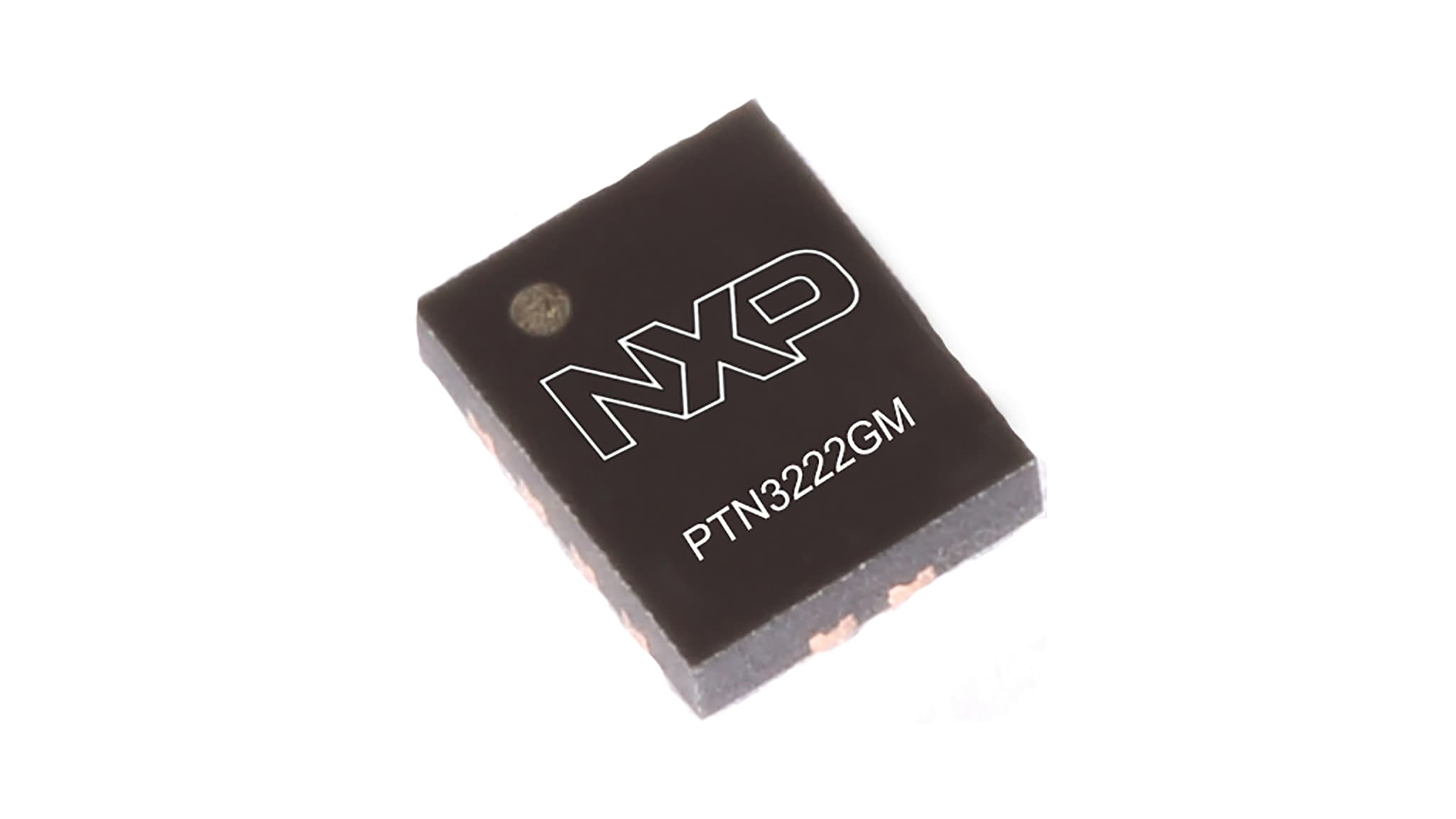

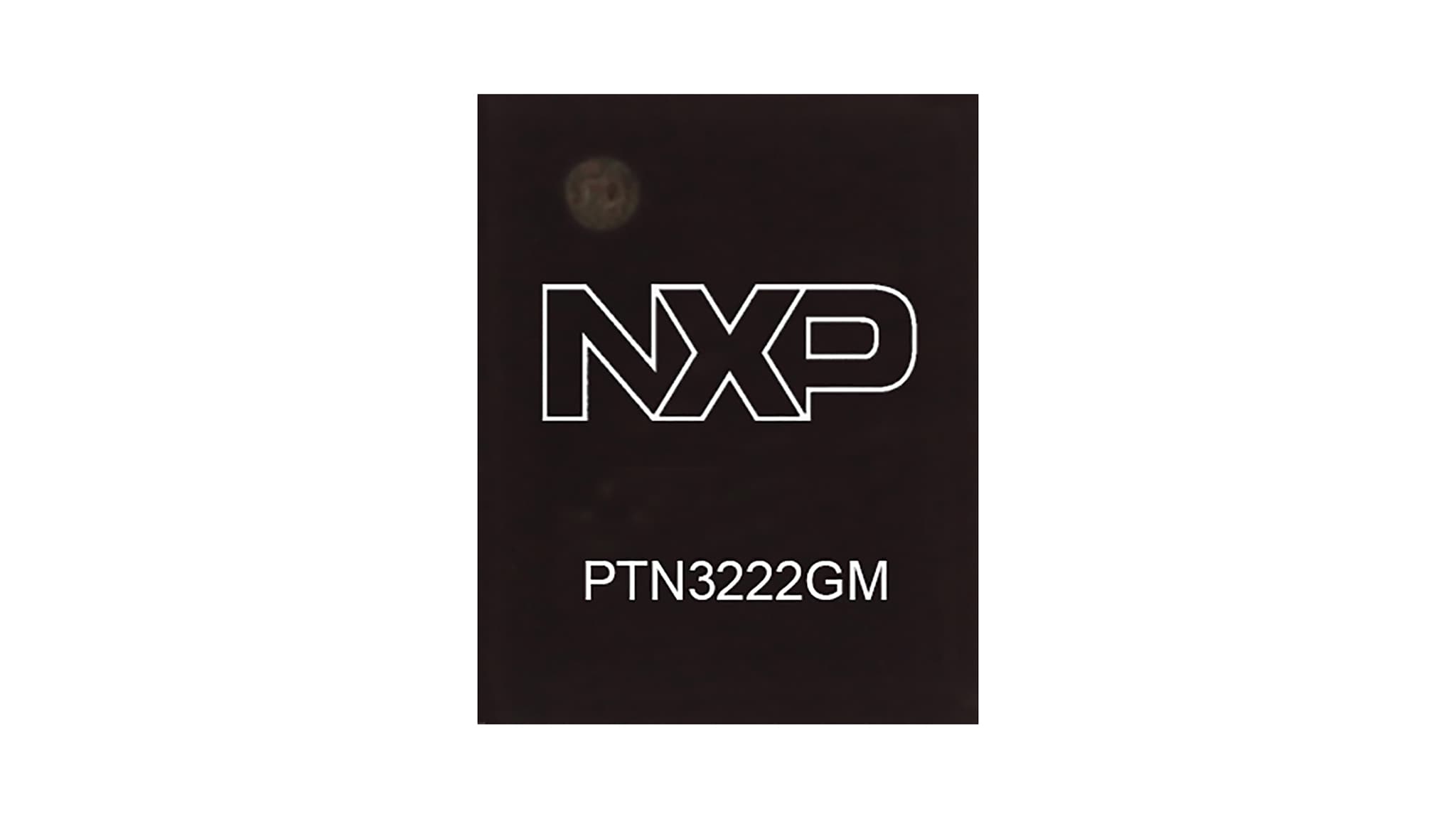

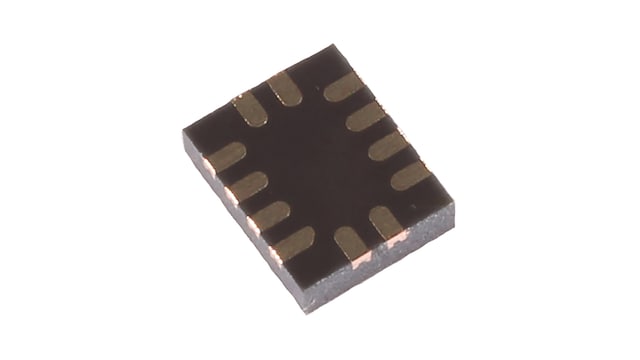

  • QFN12: 1.75 mm x 2.2 mm, 0.4 mm pitch

Highly Configurable

  • eUSB2
    • HS RX Control
      • Squelch detection threshold from 50 mV to 95 mV
      • Equalization gain from 0 dB to 4 dB
    • HS TX Control
      • Output signal swing from 180 mV to 240 mV
      • De-emphasis level from 0 dB to 3 dB
  • USB2
    • HS RX Control 1
      • Squelch detection threshold from 65 mV to 115 mV
      • Equalization gain from 0 dB to 4 dB
    • HS TX Control 1
      • De-emphasis level from 0 to 0.8*UI
      • De-emphasis level from 0 dB to 110 dB
    • HS TX Control 2
      • Rise/fall time from 4 ns to 20 ns
      • USB2 HS TX rise/fall time from 300 ps to 900 ps

Robust Features

  • USB2 data pins tolerate 5.5 V (DC) for 24 hours
  • USB2 data pins withstand short to GND for 24 hours
  • USB2 data pins withstand collision on DP/DN pins due to faulty USB devices
  • GPIOs and high-speed data pins are backpower safe
  • ESD HBM 2 kV CDM 500 V

Comparison Table

Device Package Status I/O VDD (*1) Comments
PTN3222CUK WLCSP12 Production 1.8 V General market
PTN3222DUK WLCSP12 Production 1.8 V Recommend for Qualcomm platforms (*2)
PTN3222EUK WLCSP12 Production 1.2 V General market
PTN3222GM QFN12 Production 1.8 V General market
PTN3222DHN QFN12 (*3) Development (*4) 1.8 V Automotive version

Note *1: I²C interface and Reset I/Os
Note *2: Qualcomm platforms SM8450/SM8475
Note *3: QFN variant with Wettable Flanks - Ideal for automotive applications (AEC-Q100 - Grade B)
Note *4: Samples available in April'24. Release in Q2'25

Buy/Parametrics

4 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Package Type

Package Termination Count

Supply Voltage [typ] (V)

I/O Voltage (RST_N/I2C) [V]

Ambient Operating Temperature (Min to Max) (℃)

PTN3222CUK
Data Sheet

Active

1K @ US$0.66

WLCSP12

12

1.8, 3.6

1.8

-40 to 85

PTN3222DUK
Data Sheet

Active

1K @ US$0.66

—

—

1.8, 3.6

1.8

-40 to 85

PTN3222EUK
Data Sheet

Active

1K @ US$0.66

—

—

1.8, 3.6

1.2

-40 to 85

PTN3222GM
Data Sheet

Active

1K @ US$0.66

XQFN12

12

1.8, 3.6

1.8

-40 to 85
