The i.MX513 multimedia applications processor offers high performance processing optimized for the lowest power consumption and hardware accelerated video codecs for IP cameras, V2IP media phones, digital signage and HMI. It features Our advanced and power-efficient implementation of the Arm^® Cortex^®-A8 core, which operates at speeds up to 800 MHz. Extended temperature is available for industrial focused devices running at up to 600 MHZ.

The i.MX513 is supported by companion NXP^® power management ICs (PMIC), MC13892, MC34704, MC34709 and MMPF0100.

For consumer and industrial i.MX51 versions, i.MX515 samples are orderable.

Data Sheet

Reference Manual

Product Details

Block Diagram

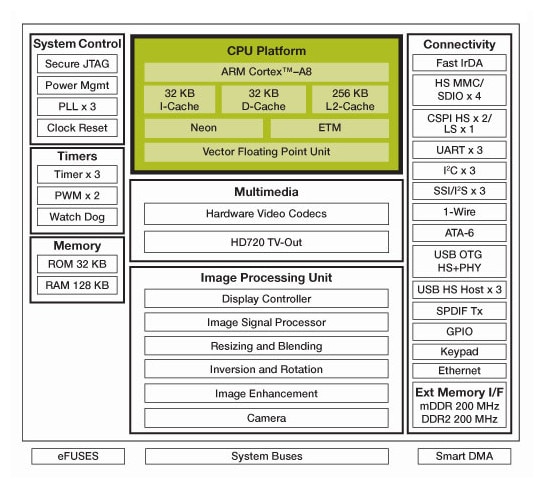

i.MX513 Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

800 MHz Arm Cortex-A8 CPU
32KB instruction and data caches
Unified 256KB L2 cache
NEON SIMD media accelerator
Vector floating pointco-processor

Multimedia

Multi-format HD720p video decoder and D1 video encoder hardware engine
24-bit primary display support up to WXGA resolution
18-bit secondary display support
Analog HD720p component TV output
High quality hardware video de-interlacing
Image and video resize, inversion and rotation hardware
Alpha blending and color space conversion
Display quality enhancement: color correction, gamut mapping, gamma correction

External Memory Interface

mDDR and DDR2 SDRAM, 16/32-bit, 200MHz
SLC/MLC NAND flash, 8/16-bit

General

Interface Flexibility
Advanced Power Management

Product Longevity

This product is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

1 design file

Printed Circuit Boards and Schematics
IMX51_EVK16_DESIGN_FILES

ZIPRev 2.0Mar 14, 201116.0 MBI.MX51EVK_DESIGN_FILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1 hardware offering

Evaluation and Development Boards

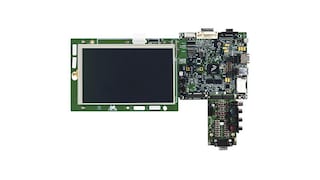

i.MX51 Evaluation KitFeatured
