Programmable Gate Driver for Solenoid Control

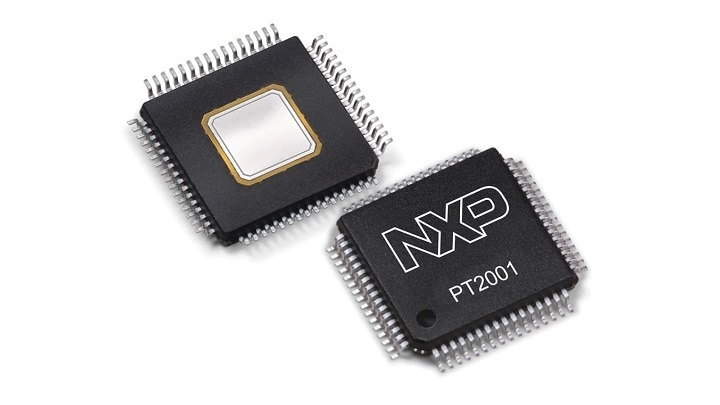

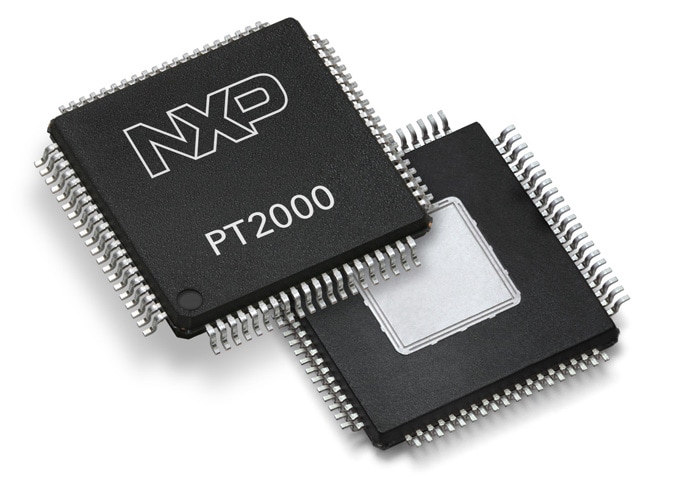

The PT2001 is a programmable gate driver IC for precision solenoid control applications, which makes the component very flexible and relieves the main microcontroller from the intensive task of the actuator control.
The chip integrates four microcores used to control, five external MOSFET high-side pre-drivers, seven external MOSFET low-side pre-drivers, a DC-DC converter, integrated end of injection detection, current measurement and diagnostics.
Product Details
Features
Key Features
- Battery voltage range, 5 V < VBATT < 32 V
- Pre-drive operating voltage up to 72 V, 80 V
- Ambient operating temperature -40 °C (Min), 125 °C (Max)
- 5 High-side pre-drive PWM capability up to 100 KHz
- 7 Low-side pre-drive PWM capability up to 100 KHz
- All pre-drivers have four selectable slew rates
- 12 selectable, pre-defined VDS monitoring thresholds
- ISO26262 compliant development
- Encryption for microcode protection
- Integrated End of Injection detection
- Power train control and pre-driver device function
- 4 Channels
Product Programs
Buy/Parametrics
4 results
Include 0 NRND
Part | Order | CAD Model | Status | Device Function | End of Injection Detection | Package Type | Package Termination Count | Budgetary Price excluding tax | Frequency (Max) (kHz) | Number of Channels | Protection | Supply Voltage [min] (V) | Supply Voltage [max] (V) | SPI [bits] | Number of High Side Pre Driver | Number Low Side Pre Driver | Ambient Operating Temperature (Min to Max) (℃) | ASIL Certification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | powertrain control, pre-driver | N | HLQFP64 | 64 | 1K @ US$4.25 | 200 | 4 | drain to source voltage/voltage source, open load, overtemperature, undervoltage | 5 | 72 | 16 | 5 | 7 | -40 to 125 | up to ASIL C | |||
Active | powertrain control, pre-driver | N | HLQFP64 | 64 | 1K @ US$4.35 | 200 | 4 | drain to source voltage/voltage source, open load, overtemperature, undervoltage | 5 | 80 | 16 | 5 | 7 | -40 to 125 | up to ASIL C | |||
Active | powertrain control, pre-driver | Y | HLQFP64 | 64 | 1K @ US$4.55 | 200 | 4 | drain to source voltage/voltage source, open load, overtemperature, undervoltage | 5 | 80 | 16 | 5 | 7 | -40 to 125 | up to ASIL C | |||
Active | powertrain control, pre-driver | Y | HLQFP64 | 64 | 1K @ US$4.45 | 200 | 4 | drain to source voltage/voltage source, open load, overtemperature, undervoltage | 5 | 72 | 16 | 5 | 7 | -40 to 125 | up to ASIL C |
Documentation
Quick reference to our documentation types.
6 documents
Compact List
Application Note (2)
Data Sheet (1)
-
MC33PT2001, Programmable solenoid controller - Short Data Sheet[MC33PT2001_SDS]Featured
Fact Sheet (1)
-
Solenoid Programmable Gate Driver ICs (PT2000, PT2001 and MC33816) - Fact Sheet[PT2000A4FS]Featured
User Guide (1)
White Paper (1)
-
Safety Concept Overview of High-Voltage (HV) Traction Inverter - White Paper[SAFETY-CONCEPT-OVERVIEW-HV-TRACTION-INVERTER]
6 documents
Compact List
Application Note (2)
Data Sheet (1)
-
MC33PT2001, Programmable solenoid controller - Short Data Sheet[MC33PT2001_SDS]Featured
Fact Sheet (1)
-
Solenoid Programmable Gate Driver ICs (PT2000, PT2001 and MC33816) - Fact Sheet[PT2000A4FS]Featured
User Guide (1)
White Paper (1)
-
Safety Concept Overview of High-Voltage (HV) Traction Inverter - White Paper[SAFETY-CONCEPT-OVERVIEW-HV-TRACTION-INVERTER]
Design Resources
Software
Quick reference to our software types.
4 software files
-
Middleware

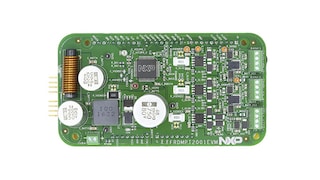

S32 Design Studio Sample Project for S32K144 and PT2001 EVBsFeatured
-
Configuration Tools
SPI Generator (SPIGen) Software
-
Application Example Software
Software Microcode Example to Control 4 Injector, 1 Fuel Pump and DCDC 65 V
-
Development IDEs and Build Tools
Developer Studio for PT2001 Programmable Solenoid Controller
