NBP8FD4ST1 and NBP9FD4ST1 are the recommend devices for new designs as the NBP8FD4T1 and NBP9FD4T1 are discontinued.
The NBP8 and NBP9 is a fully integrated battery pressure monitor sensor family in the NXP pressure sensor portfolio that provides a small footprint in a 4 x 4 mm package, low power consumption, PWM, SPI, ready/interrupt and power supply enable.

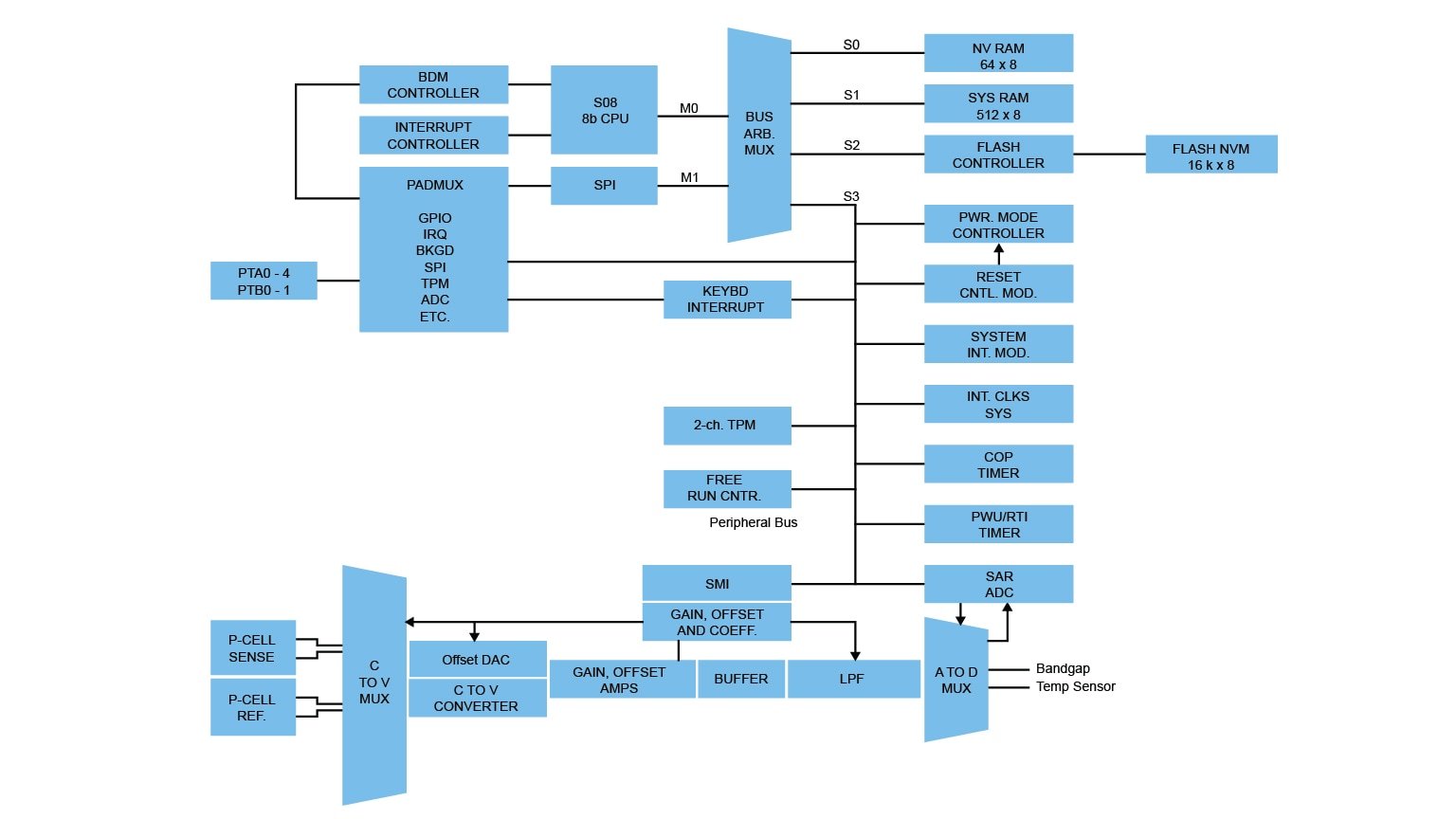

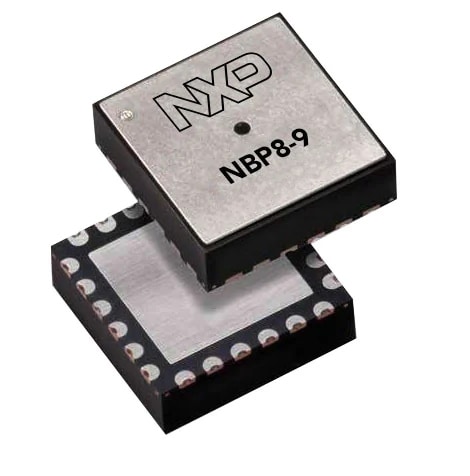

The NBPx family consists of small QFN (4 mm x 4 mm x 1.98 mm), fully integrated battery pressure monitoring sensors (BPMS). The NBPx BPMS solution integrates an 8-bit central processing unit (CPU) and NXP-provided firmware to create the ready-to-use pressure sensor. The battery pressure monitoring sensors have a built in MCU and are capable of sensing the pressure change, making a configuration-based decision and acting on this decision while providing this information to the host system.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
Digital Absolute Pressure Sensor (20 to 550 kPa)
Analog Absolute Pressure Sensor (20 to 550 kPa)
2 results
Include 2 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | Package Type | Package Termination Count | Pressure Measurement Type | Pressure Range Min-max (MIN-MAX) (kPa) | Pressure Rating (MAX) (psi) | Accuracy (% Error) (Max) (%) | Output Type | Porting | Level of Integration | Ambient Operating Temperature (Min to Max) (℃) | Supply Voltage [Min to Max] (V) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1K @ US$2.57 | HQFN24 | 24 | absolute | 40 - 250 | 250 | 1.2 | SPI | unported | MCU + transducer | -40 to 125 | 2.1 to 3.6 | |||
Active | 1K @ US$2.83 | HQFN24 | 24 | absolute | 40 - 250 | 250 | 1.2 | SPI + PWM | unported | MCU + transducer | -40 to 125 | 2.1 to 3.6 |
Quick reference to our documentation types.
7 documents
Compact List
7 documents
Compact List
Receive the full breakdown. See the product footprint and more in the eCad file.

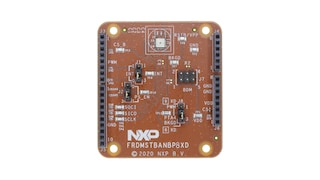

1-5 of 6 hardware offerings
