Crypto Coprocessor

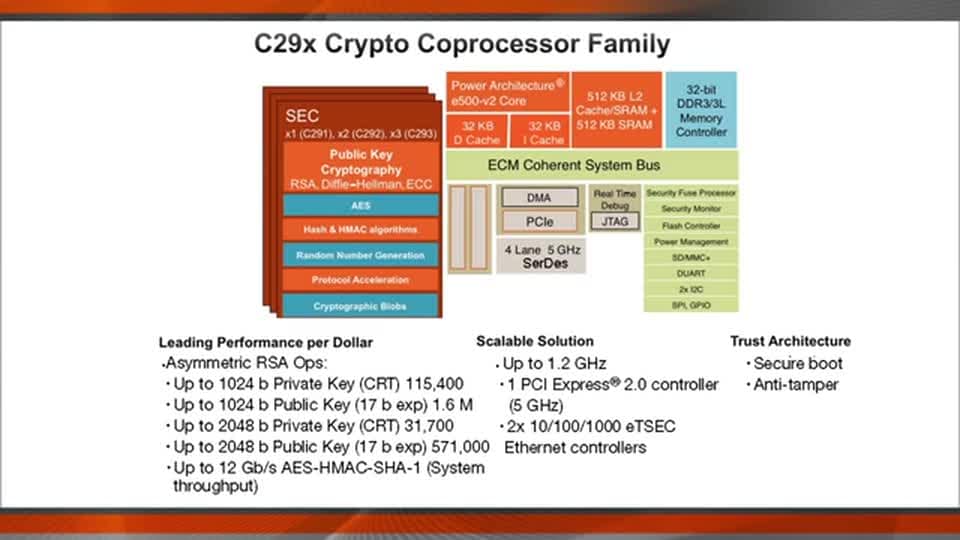

The NXP® C29x crypto coprocessor family consists of three high performance crypto coprocessors – the C291, C292 and C293 – which are optimized for public key operations targeting network infrastructure across the enterprise and the data center.
Public key algorithms such as RSA, Diffie Hellman and Elliptic Curve Cryptography (ECC) are the basis of digital signature and key exchange protocols that make secure transactions possible. By providing public key acceleration, the C29x family enables networks to efficiently scale with the increase in SSL and IPsec traffic that require public key. Scaling with secure transactions is difficult because performing public key math in software can quickly saturate today's general purpose processors.
While optimized around public key, the C29x family can also accelerate AES‐HMAC‐SHA‐1 bulk encryption. The three devices offer scalable, pin-compatible performance and range from one to three security engines (SEC) – the C291 features one SEC, the C292 features two SECs, C293 features three SECs.
Product Details
Features
- Up to 32k of RSA 2048-bit private key performance (C293)
- Up to 12Gbps AES-HMAC-SHA-1 bulk encryption (system throughput)
- Power as low as five watts (C291)

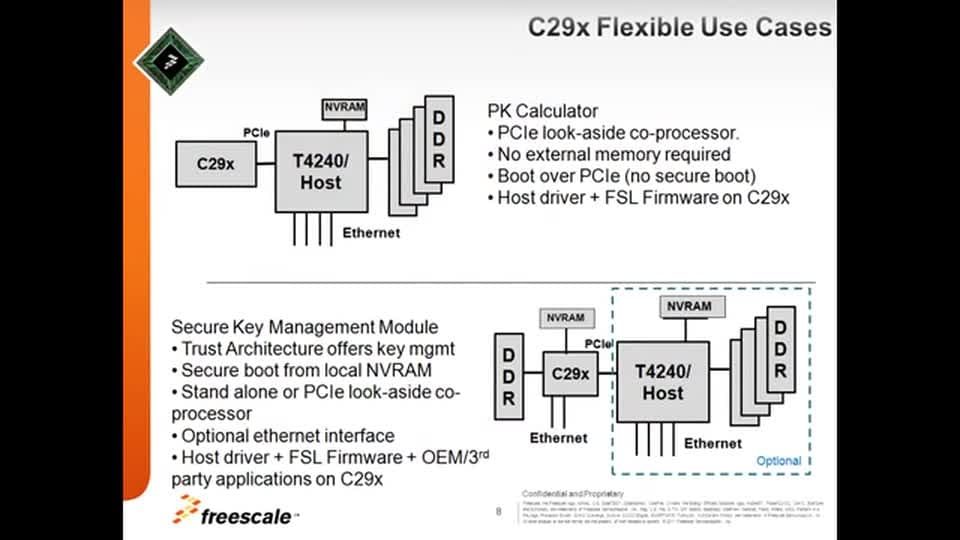

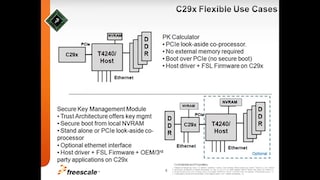

- Support of dual use cases (click on block diagram image to scroll through use case diagrams):
- Public key offload – no external memory required
- Secure key management – act as offload accelerator or stand alone
- NXP® trust architecture:
- Secure boot
- Tamper detection
- Optional battery backed secret key
- Development System

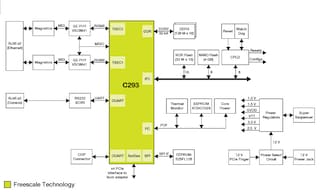

- C29x PCI Express (PCIe) Adapter Platform
Related products
QorIQ® T4240/T4160/T4080 Multicore Communications Processors
Buy/Parametrics
3 results
Exclude 3 NRND
Part | CAD Model | Status | Package Type | Package Termination Count | Core Type | Operating Frequency [Max] (MHz) | Power Dissipation (MAX) (W) | Ethernet Type | Ambient Operating Temperature (Min to Max) (℃) | SPI | UART | I2C | External Memory Supported |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
End of Life | BGA780 | 780 | e500v2 | 667 | 6 | 10GBaseT, 1GBaseT | 0 to 105 | 1 | 1 | 1 | DDR3 SDRAM, DDR3L SDRAM, SDRAM | ||
End of Life | BGA780 | 780 | e500v2 | 1000 | 10 | 10GBaseT, 1GBaseT | 0 to 105 | 1 | 1 | 1 | DDR3 SDRAM, DDR3L SDRAM, SDRAM | ||
End of Life | BGA780 | 780 | e500v2 | 1200 | 15 | 1GBaseT | 0 to 105 | 1 | 1 | 1 | DDR3 SDRAM, DDR3L SDRAM, SDRAM |
