FRDM-MC-LVMTR
Active
Features
FRDM-MC-LVMTR, MOTOR 3-PH BLDC 4000r/min 24V 2.3A 990g.cm 40W, MFR. Linix, 45ZWN24-40
Buy Options
FRDM-MC-LVMTR
Active
12NC: 935328919598
Details
- Min. Package Quantity: 1
- Min. Order Quantity: 1
- Lead Time: 15 weeks
Operating Features
No information available
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
FRDM-MC-LVMTR(935328919598) | Not Available | No Information | Not Available | No Information | 453592.0 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
FRDM-MC-LVMTR (935328919598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) |
|---|---|---|
FRDM-MC-LVMTR (935328919598) | 850131 | EAR99 |
More about FRDM-MC-LVMTR
Add 3-phase Brushless DC (BLDC) and Permanent Magnet Synchronous Motor (PMSM) motor control capabilities to your FRDM System designs with the NXP® FRDM-MC-LVMTR kit.
Combine with an FRDM-KV31F or FRDM-KV10Z MCU board and either the FRDM-MC-LVBLDC for BLDC development or FRDM-MC-LVPMSM for PMSM development to create a complete low-cost reference platform.

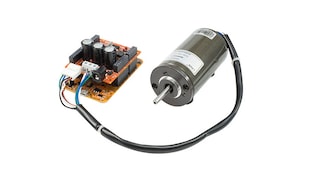

Kit includes one low voltage, synchronous three-phase, sinusoidal Bemf BLDC motor with wiring for the three motor phases and hall effects signals.
Note: FRDM platform and shield sold separately.
