EdgeLock® SE050 Development Kits

OM-SE050X Active

Roll over image to zoom in

OM-SE050ARD-E/-F: EdgeLock SE050 Arduino® Compatible Development Kits:

The OM-SE050ARD-E and the OM-SE050ARD-F are the flexible and easy-to-use development kits for the EdgeLock SE050 secure element Plug and Trust product family.

  • OM-SE050ARD-E is configured with the EdgeLock SE050E (Common Criteria certified EAL 6+ with extended range of ECC and symmetric cryptographic options)
  • OM-SE050ARD-F is configured with the EdgeLock SE050F (Common Criteria EAL 6+ and FIPS 140-2 certified with support of FIPS approved algorithms)

For more information on the EdgeLock SE050 configurations please download the respective Application Note AN12436.

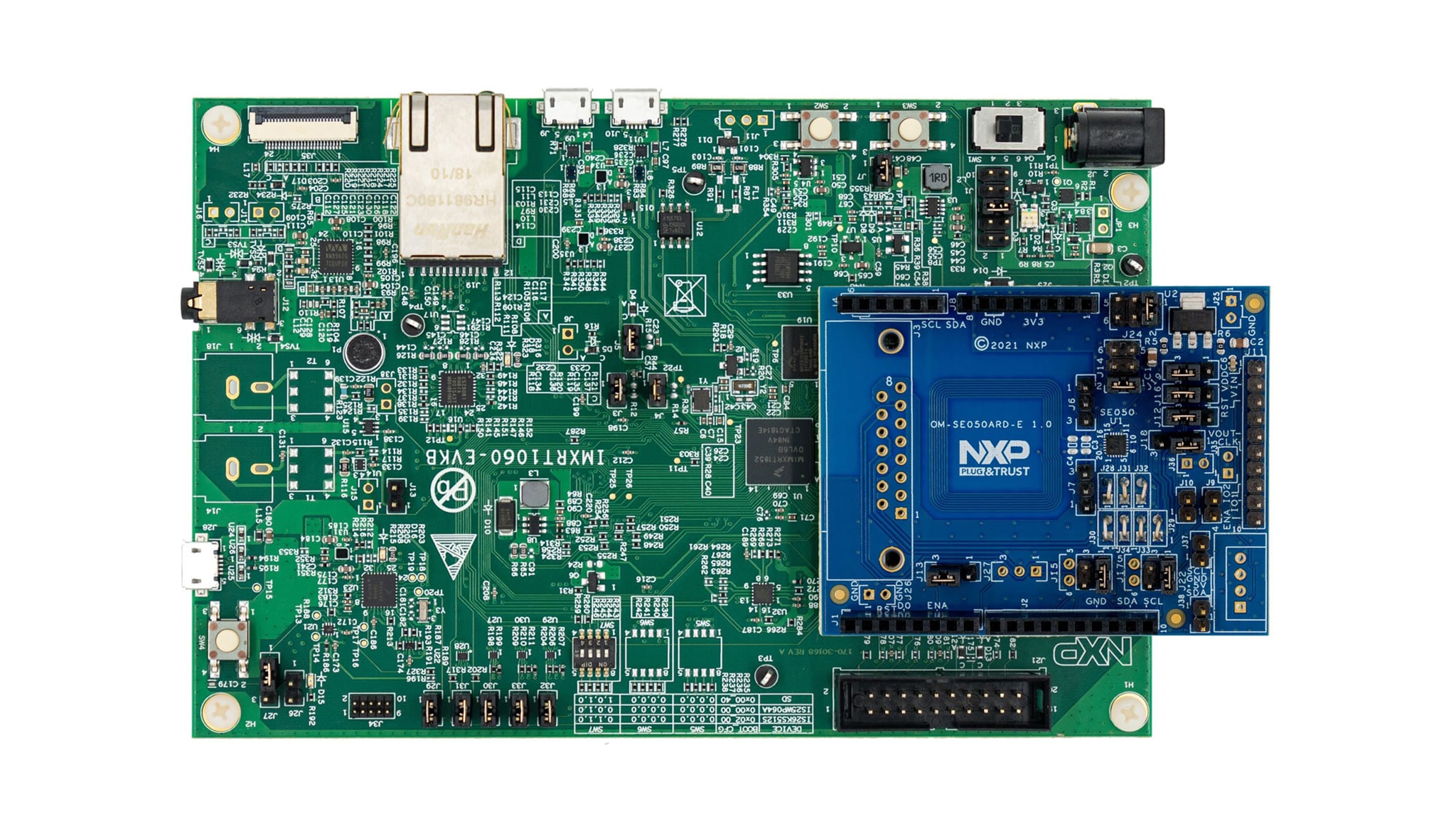

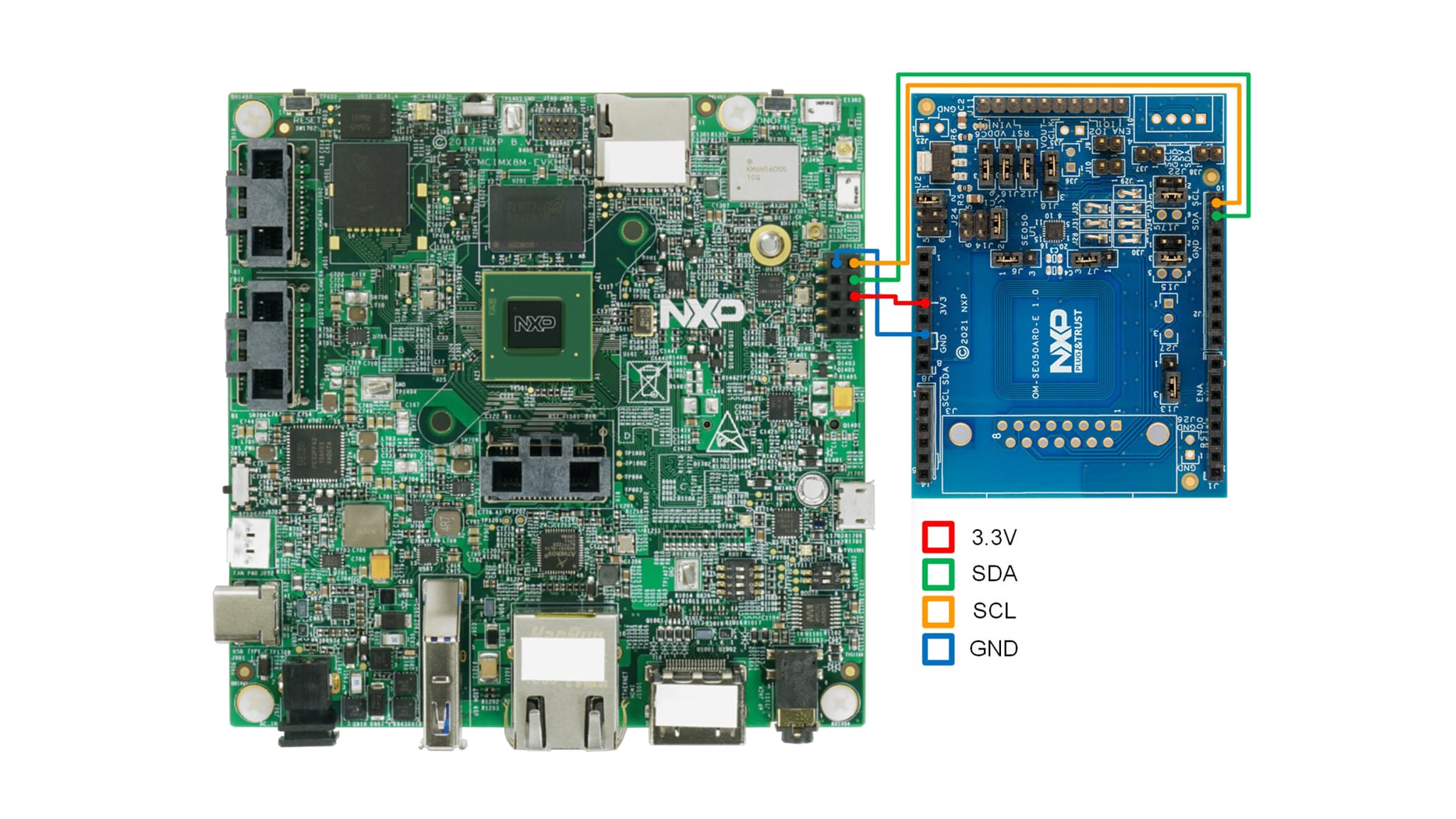

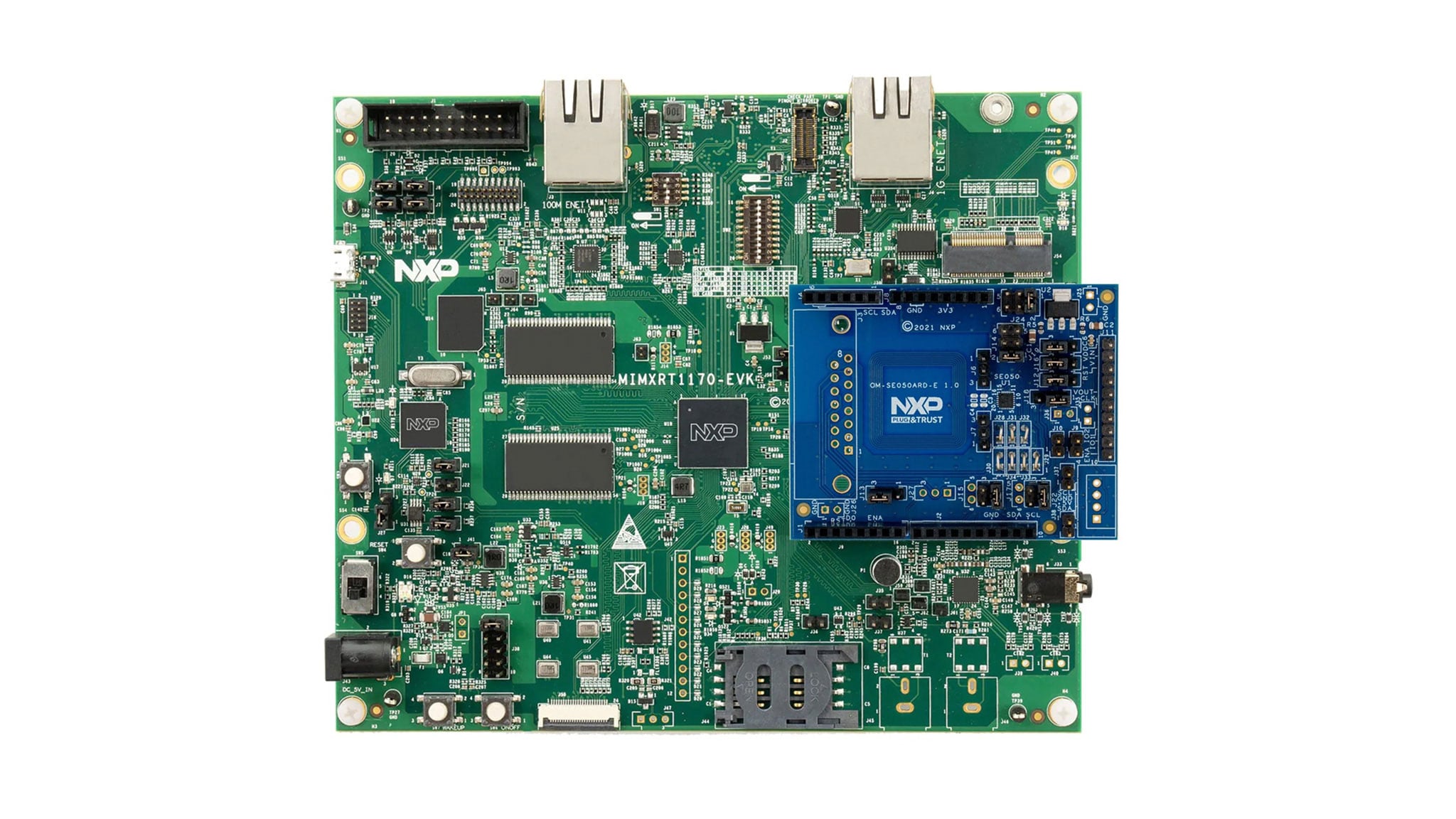

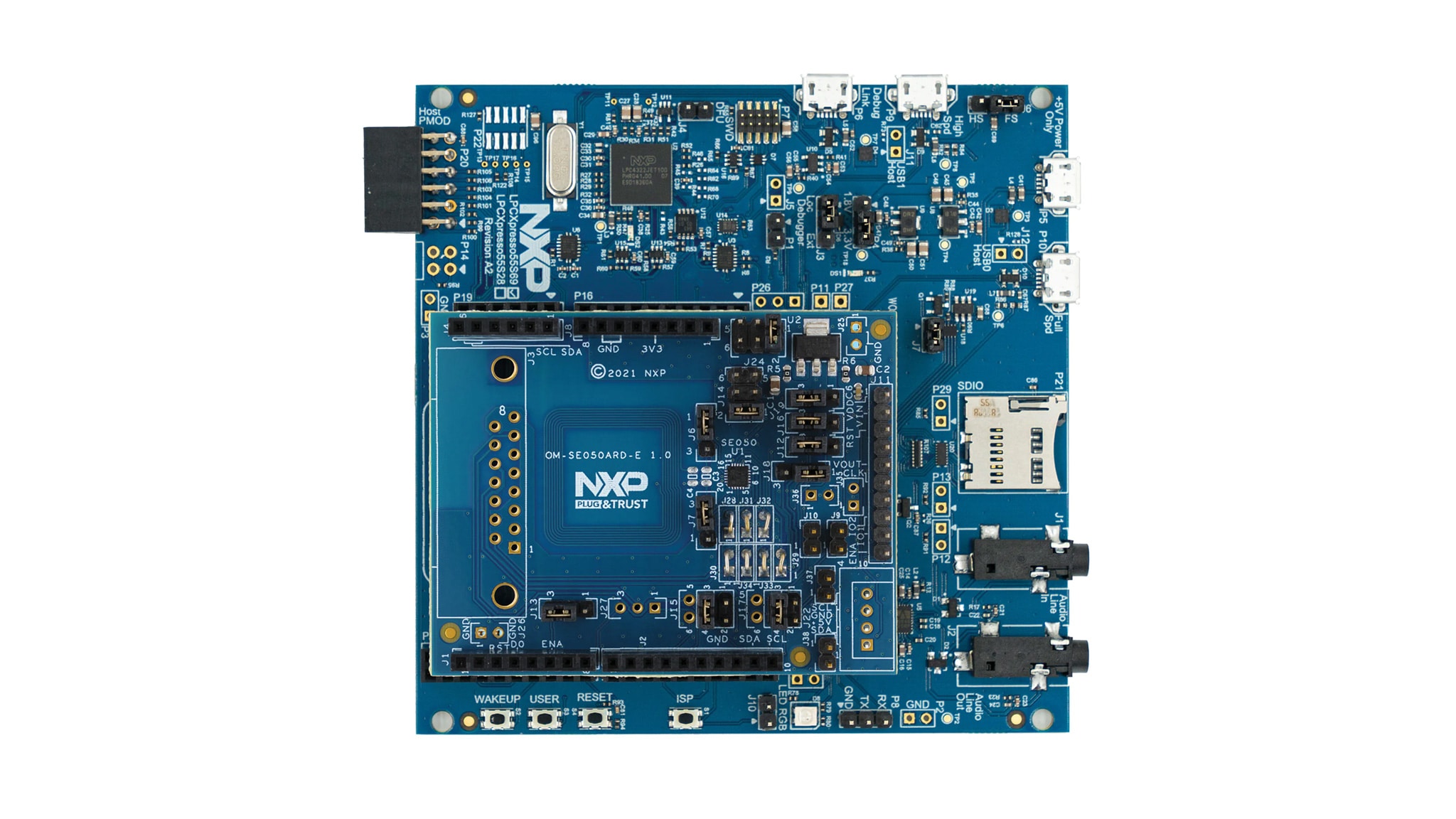

The development kits can be used in various ways, for example, via the Arduino interface compatible to any board featuring an Arduino compatible header, including many i.MX, LPC and Kinetis® boards, or via a direct I²C connection. The kits allow evaluation of the SE050 product family features and simplify the development of secure IoT applications.

More information can be found in the respective Application Note AN13539.

OM-SE050RPI: Arduino to Raspberry Pi Adapter Board

The OM-SE050RPI adapter board allows an easy integration of OM-SE050ARD-E/-F development kits with Raspberry Pi boards.

More information can be found in the respective Application Note AN12570.

More

Supported Devices

Security and Authentication

Authentication

  • SE050: EdgeLock® SE050: Plug and Trust Secure Element Family – Enhanced IoT Security with High Flexibility

Buy Options

OM-SE050ARD-E-Image

Click to expand

  • OM-SE050ARD-E
    Active

  • EdgeLock SE050E Arduino compatible development kit.

  • $60.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 67
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
OM-SE050ARD-F-Image

Click to expand

  • OM-SE050ARD-F
    Active

  • EdgeLock SE050F Arduino compatible development kit.

  • $60.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 7
    • Shipping: Normally ships 1-2 business days
ADD TO CART
OM-SE050RPI-Image

Click to expand

  • OM-SE050RPI
    Active

  • Arduino to Raspberry Pi Adapter Board.

  • $40.48 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
