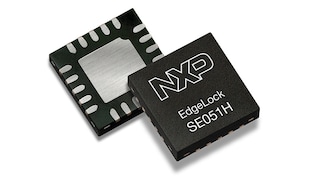

EdgeLock® SE051H: Secure Element for Matter Onboarding via NFC
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.

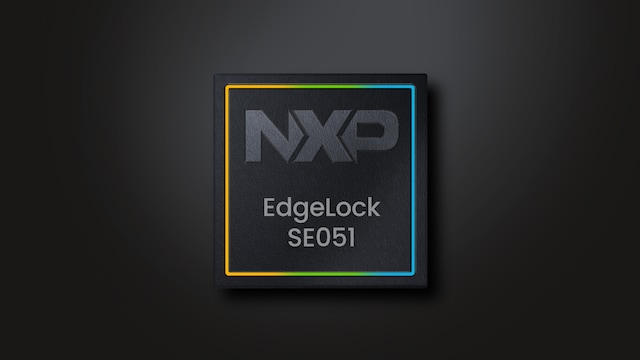

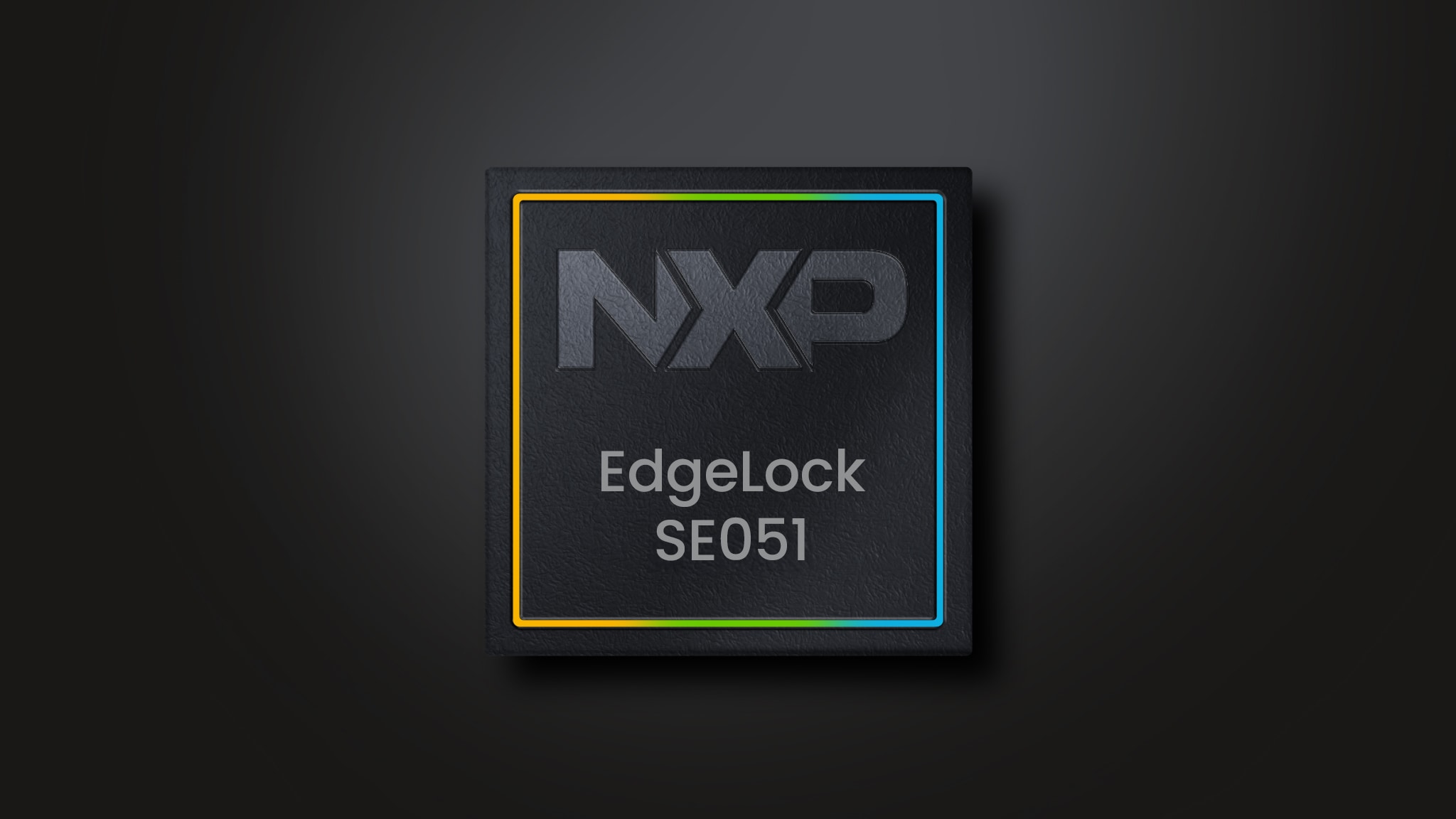

EdgeLock® SE051: Proven, Easy-to-Use IoT Security Solution with Support for Updatability and Custom Applets
The EdgeLock SE051, an extension to the widely trusted EdgeLock SE050 Plug & Trust secure element family, supports applet updates in the field and delivers proven security certified to CC EAL 6+, with AVA_VAN.5 up to the OS level, for strong protection against the most recent attack scenarios. This ready-to-use secure element for IoT devices provides a root of trust at the IC level and delivers real end-to-end security – from edge to cloud – without the need to implement security code nor handle critical keys and credentials.
Future-proof security with SEMS Lite
The EdgeLock SE051 supports a lightweight, IoT-optimized version of the GlobalPlatform Secure Element Management Service (SEMS), making it possible to either update the EdgeLock SE051’s IoT applet with various items, including updates for security maintenance in the field, applet upgrades or deploy newly developed applets post-shipment.
For own applet (SW on device) development please contact your local NXP representative.
Certified EdgeLock Assurance
The EdgeLock SE051, part of the Certified EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach. It has been certified by an independent lab.
Product Details
Features
EdgeLock SE051 extensions (on top of EdgeLock SE050 platform features)
- IoT security solutions with updatability for time to market and customization
- SE051A/C with preinstalled IoT applet and full SW enablement for fast deployment
- For proprietary applet development of custom products, please contact your local NXP representative
- SEMS Lite for convenient IoT applet updatability
-
Suitable for industrial IoT use cases
- IEC62443-4-2 certified for the applicable requirements
- Product development lifecycle compliant to IEC62443-4-1 certified secure process with maturity level 3
- Flexible user memory
- SE051A/C: 46 kB user memory with personalization options to go up to 104 kB
EdgeLock SE050 platform features
- Groundbreaking CC EAL6+ certified solution for IoT deployments
- Crypto Agility: RSA and ECC functionalities, high key length and future-proof curves (for example, Brain pool, Edwards, Montgomery)
- AES and 3DES encryption and decryption
- AES modes: CBC, CTR, ECB, CCM, GCM
- HMAC, CMAC, GMAC, SHA-1, SHA-224/256/384/512 operations
- TRNG compliant to NIST SP800-90B
- DRBG compliant to NIST SP800-90A
- HKDF, MIFARE® KDF, PRF (TLS-PSK)
- Support of main TPM functionalities
- SCP03 (bus encryption and encrypted credential injection on applet and platform level)
- Contactless interface for late-stage parameter configuration of unpowered devices
- I²C target (High-speed mode, 3.4 Mbit/s), I²C controller (Fast-mode, 400 kbit/s)
- Extended temp range for industrial applications (-40 to +105 °C)
- Small and very thin HX2QFN20 package particularly suited for space limited applications (3 mm x 3 mm x 0.33 mm)
Product Programs
Certified EdgeLock Assurance
Certified EdgeLock Assurance is the mark of security by design. An independent lab has certified the security of this product, which is designed to comply with industry standards.
Certifications
Common Criteria EAL 6+ Certification
Common Criteria EAL 6+ certified up to OS level.
Resources
IoT Security Use Cases
From sensor data protection in industrial plants, secure Wi-Fi connections in smart homes to controlled access to industrial networks - trust NXP’s EdgeLock SE051 to help secure your application.
EdgeLock 2GO
If you are looking for options to provision the EdgeLock SE051 or onboard your IoT device to the cloud, checkout NXP’s secure and flexible EdgeLock 2GO IoT service platform.
Plug & Trust Software Packages
The EdgeLock SE05x Plug & Trust middleware package offers easy integration with different MCUs and MPUs simplifying design-in and reducing time-to-market.
In addition, the GitHub software packages are derivatives of the full Plug & Trust middleware package for specific use cases. For development purposes still look at the full package as well as it contains large amounts of examples, tools and additional documentation.
- The Plug and Trust middleware mini package is a subset of the Plug & Trust middleware for Linux use
- The Plug and Trust middleware nano package is a minimalistic version of the Plug & Trust middleware optimized for constrained devices. It also provides an integration with Zephyr OS and an example of Qi 1.3 authentication
