EasyEVSE EV Charging Development Platform (MCU, FreeRTOS, Wi-Fi 4)

EVSE-EVCHARGING-FREERTOS

Roll over image to zoom in

The cloud-connected EasyEVSE EV charging station development platform provides hardware configuration instructions and example software to quickly set up a secure connection between a simulated electric vehicle supply equipment (EVSE) and a cloud-based application. Use the modular, scalable platform as the foundation to start building differentiated EVSE systems that support device-to-cloud and cloud-to-device communications, accurate energy billing and one-tap NFC authentication.

  • Integrate power line communication between the EVSE and EV with the NXP EasyEVSE EV Charging Signal Board to drive the ISO 15118 protocol
  • Connect to the cloud over Ethernet or Wi-Fi via the IW416 SoC
  • Authenticate cloud services such as Microsoft Azure IoT central service
  • Enhance security with an EdgeLock™ SE050 secure element
  • Support accurate energy billing with a precertified Kinetis M metrology MCU
  • Authenticate with one tap using the CLRC663 high-performance NFC frontend
  • Leverage NXP and partner development tools to implement other differentiating features on the same platform

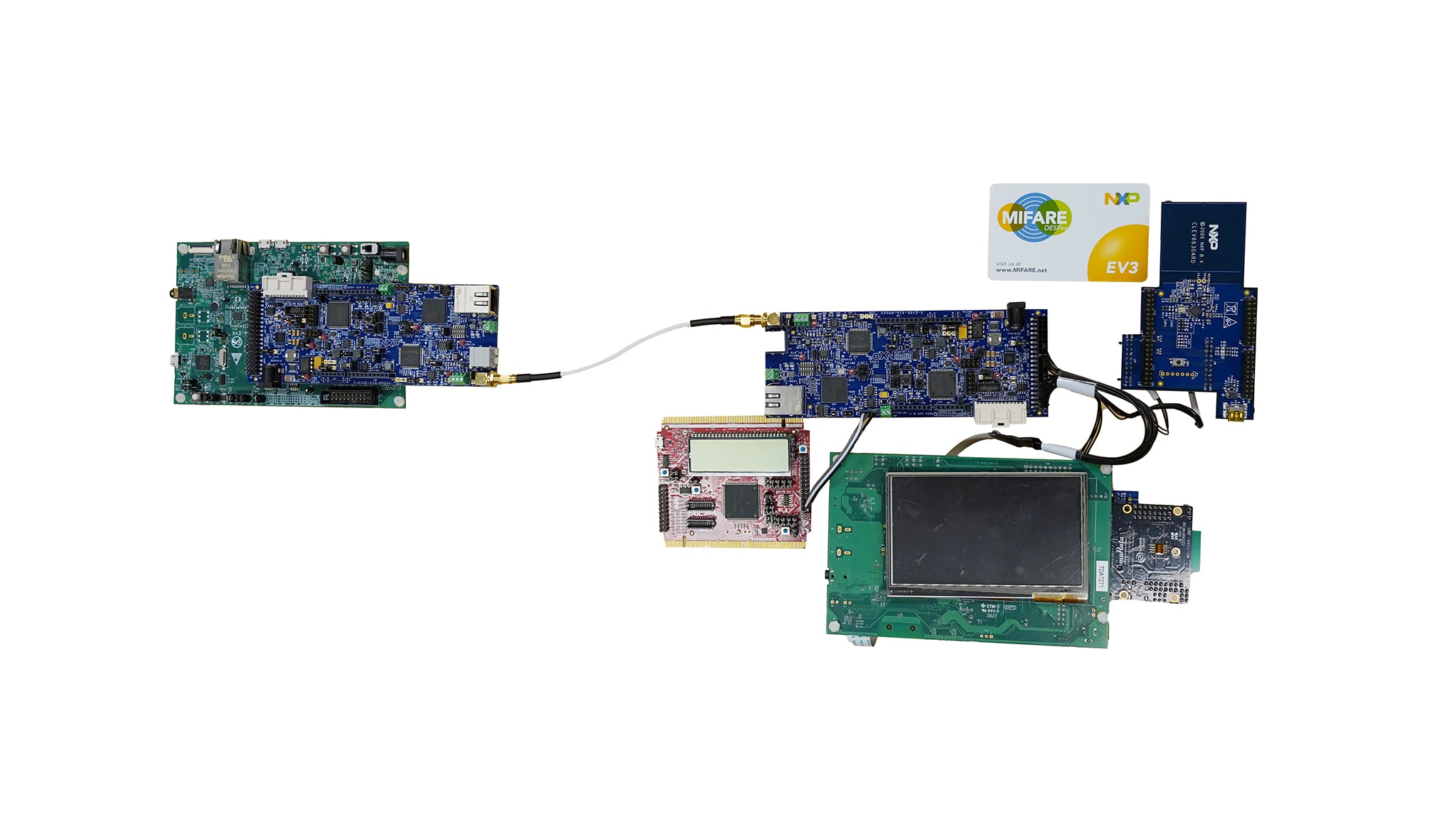

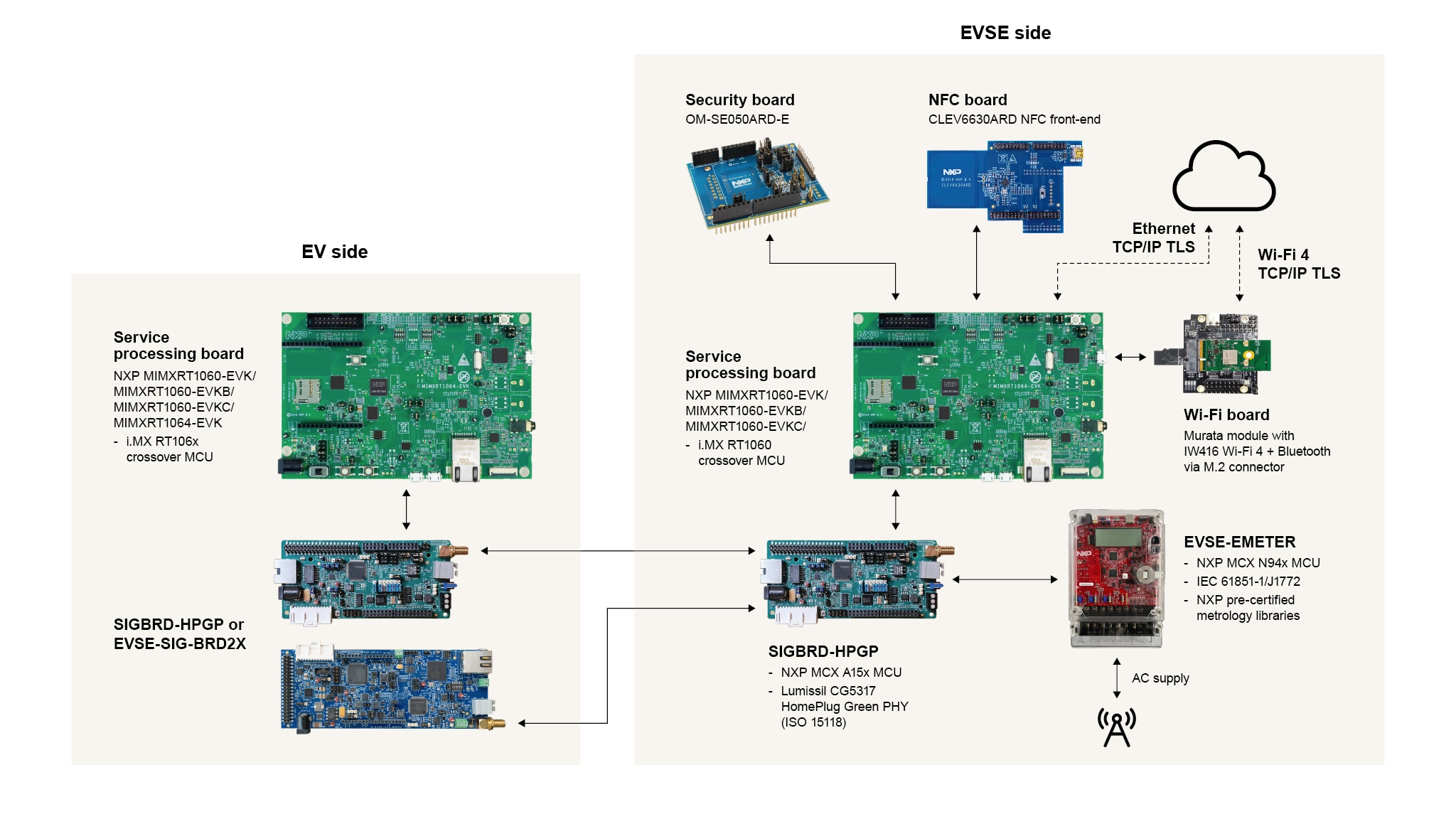

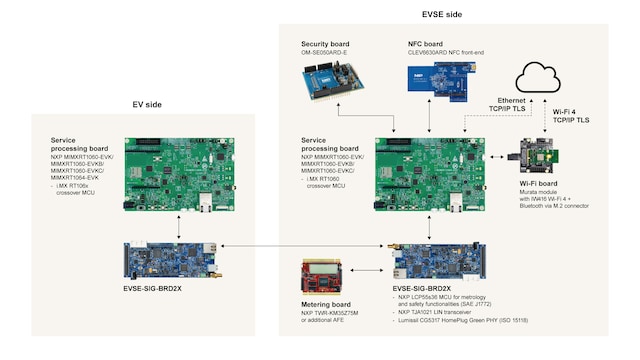

Block Diagram

EasyEVSE EV Charging Development Platform

EasyEVSE EV Charging Development Platform
Get diagram PDF

Features

Hardware

  • Modular and scalable development board options can be ordered from the Products Table to support the required functions

Software

  • Complimentary example software is downloadable at the link below, targeting:
    • i.MX RT106x Crossover MCU
      • Microsoft FreeRTOS (part of the MCUXpresso SDK)
      • ISO 15118 stack
      • NXP Wi-Fi stack
      • SDIO card driver for the Murata module IW416 SoC (dual-band Wi-Fi 4, Bluetooth 5.2)
      • Host library for the EdgeLock® SE050 secure element
      • Libraries for the CLRC663 NFC board
      • Library for graphical user interface
    • Kinetis M metrology MCU
      • Software to control the TWR-KM3x metrology board
      • EVSE application-specific example software for front-end power socket emulation development
    • EdgeLock SE050 secure element
      • Software for the OM-SE050ARD-E security board
      • EdgeLock SE05x Plug & Trust Middleware

Documentation

  • User guide describes how to get the EasyEVSE up and running using a simplified setup
  • User manual provides detailed instructions to use the development platform
  • Step-by-step video and instruction when you click the Get Started button above

Availability

  • Development boards are orderable from the Product Table below
  • Wi-Fi boards are orderable from the channels of Wi-Fi partner Murata

Buy Options

MIMXRT1060-EVKB-Image

Click to expand

  • MIMXRT1060-EVKB
    Active

  • i.MX RT1060 Evaluation Kit.

  • Kit contains

    • MIMXRT1060-EVKB board
  • $113.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 22
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MIMXRT1060-EVK-Image

Click to expand

  • For a quantity of 1
Order from distributors
MIMXRT1060-EVKC-Image

Click to expand

  • For a quantity of 1
EVSE-RT106X-CBL-Image

Click to expand

  • EVSE-RT106X-CBL
    Active

  • The EVSE-RT106X-CBL is a cable kit for easier and faster connection of your EasyEVSE EV Charging Development Platform.

  • $180.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
EVSE-SIG-BRD2X-Image

Click to expand

  • EVSE-SIG-BRD2X
    Active

  • EasyEVSE EV Charging Signal Board.

  • Kit contains

    • EasyEVSE EV Charging Signal Board and power supply
  • $600.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
MIMXRT1064-EVK-Image

Click to expand

  • $148.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
OM-SE050ARD-E-Image

Click to expand

  • OM-SE050ARD-E
    Active

  • EdgeLock SE050E Arduino compatible development kit.

  • EdgeLock® SE050 Development Kit

    Kit contains

    • EdgeLock SE050 development board
  • $60.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 67
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
TWR-KM35Z75M-Image

Click to expand

  • TWR-KM35Z75M
    Active

  • KM Series Tower System Module for KM35 MCUs.

  • $161.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
CLEV6630ARD-Image

Click to expand

  • CLEV6630ARD
    Active

  • CLEV6630ARD: NFC frontend CLRC663 plus Arduino® interface board.

  • $67.62 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 23
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
RK043FN66HS-CTG-Image

Click to expand

  • $44.80 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 15
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
