FRDM-KW38
Active -
Freedom Development Kit for KW39/38/37 MCUs.
Kit Contains
- 1x FRDM-KW38 board
- 1x USB cable
Sign in for a personalized NXP experience.
Roll over image to zoom in
This is a modal window.
Beginning of dialog window. Escape will cancel and close the window.
End of dialog window.
This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

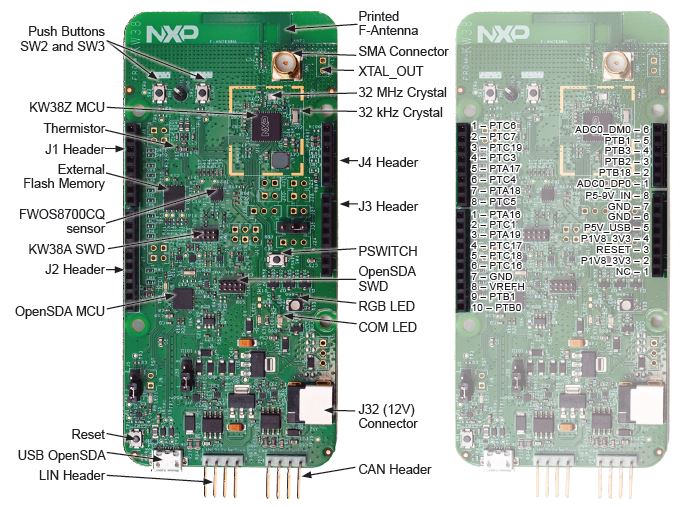

Freedom development board for KW39/38/37 MCUs with 2.4 GHz Bluetooth® LE and generic FSK wireless connectivity and CAN/LIN connectivity solutions The FRDM-KW38 kit contains Freedom board that can be used as a development board or a shield to connect to a host processor. The FRDM-KW38 highly sensitive, optimized 2.4 GHz radio features a PCB F-antenna which can be bypassed to test via SMA connection, CAN and LIN transceivers, 4-Mbit external serial flash, multiple power supply options, push/capacitive touch buttons, switches, LEDs and integrated sensors.
FRDM-KW38 Freedom Development Board includes
Can be configured as Host or Shield for connection to Host Processor.
The KW38-ER-RD extended range module reference design uses an external power amplifier to boost the transmitter output power to +20 dBm.
Freedom Development Kit for KW39/38/37 MCUs.
