Bluetooth Low Energy Packet Sniffer/USB Dongle

USB-KW38

Roll over image to zoom in

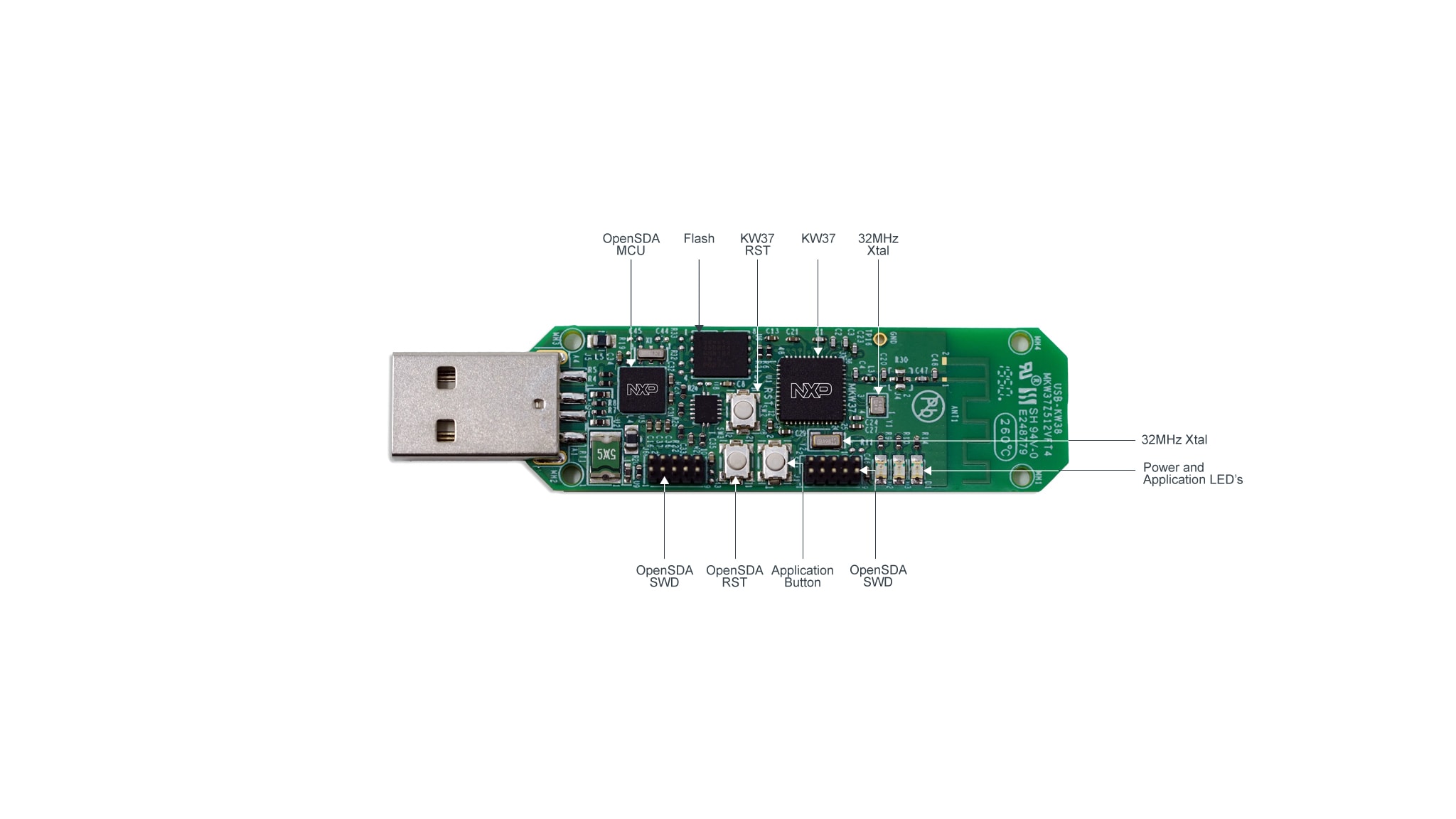

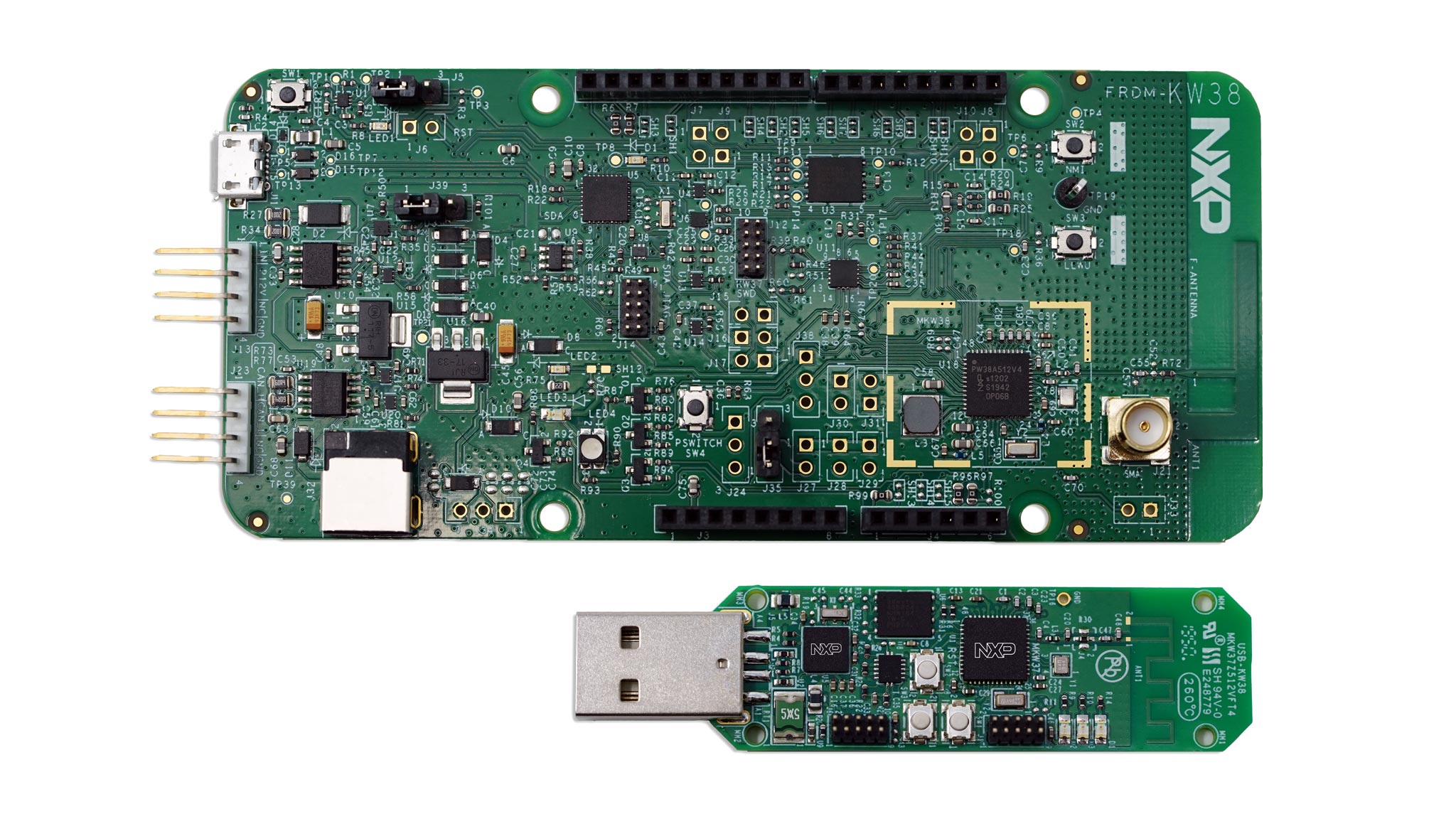

The USB-KW38 is a development platform enabled by the KW39/38/37 family built on the Arm® Cortex®-M0+ processor in a convenient USB dongle form factor. The USB-KW38 can be used as a Bluetooth® Smart/Bluetooth® Low Energy development board such as the FRDM-KW38. The USB Dongle used as a wireless packet sniffer can monitor over-the-air communications.

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • KW39-38-37: KW39/38/37: 32-Bit Bluetooth 5.0 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M0+ Core

Features

Debug

  • OpenSDA debug interface

Connectivity

  • Meandering PCB Antenna
  • USB Type A Connector
  • Ideal for Bluetooth Low Energy and Generic FSK

Other

  • RF Regulatory Certified

Buy Options

USB-KW38-Image

Click to expand

  • USB-KW38
    Active

  • Bluetooth Low Energy Packet Sniffer/USB Dongle.

  • Kit Contains

    • 1x USB-KW38 board
  • $69.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
