RDGD3100I3PH5EVB
Active -
3-Phase Reference Design for HybridPACK Drive IGBT/SiC module featuring GD3100.
Kit Contains:
- RDGD3100I3PH5EVB three-phase power gate drive inverter board

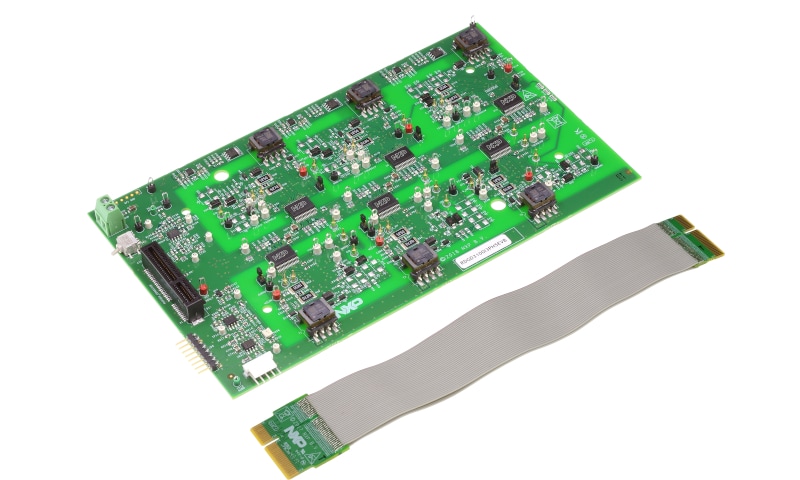

- Connection cable (S32SDEV-CON18)
Sign in for a personalized NXP experience.
Roll over image to zoom in
This is a modal window.
Beginning of dialog window. Escape will cancel and close the window.
End of dialog window.
This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.
RDGD3100I3PH5EVB reference design is "Not recommended for new designs", we recommend using the 3 Phase Reference Design for HP Drive Featuring GD3160 (RDGD3160I3PH5EVB).

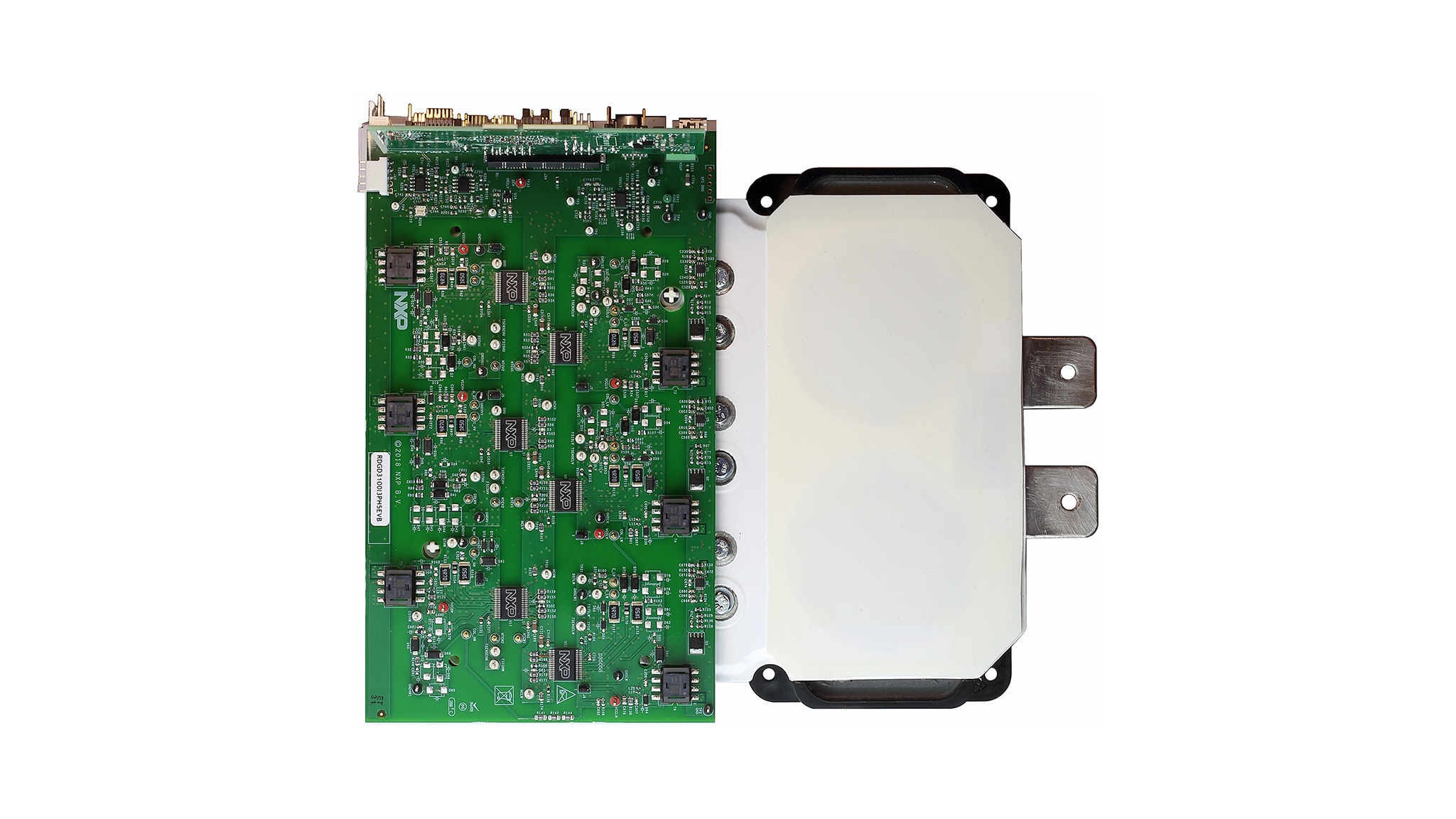

The RDGD3100I3PH5EVB is a fully functional three-phase power gate drive reference design populated with six GD3100 gate drivers with fault management and supporting control circuitry.

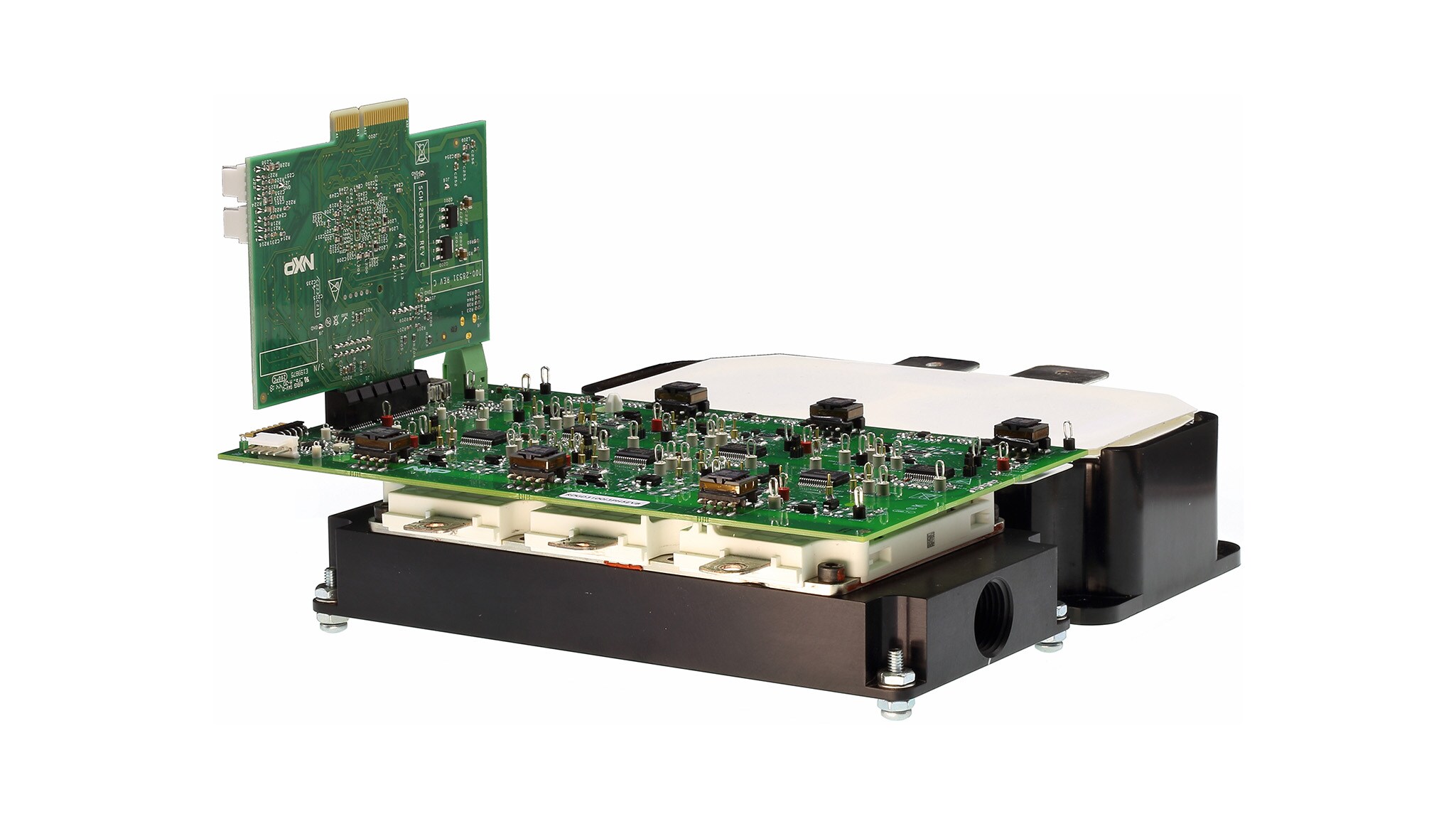

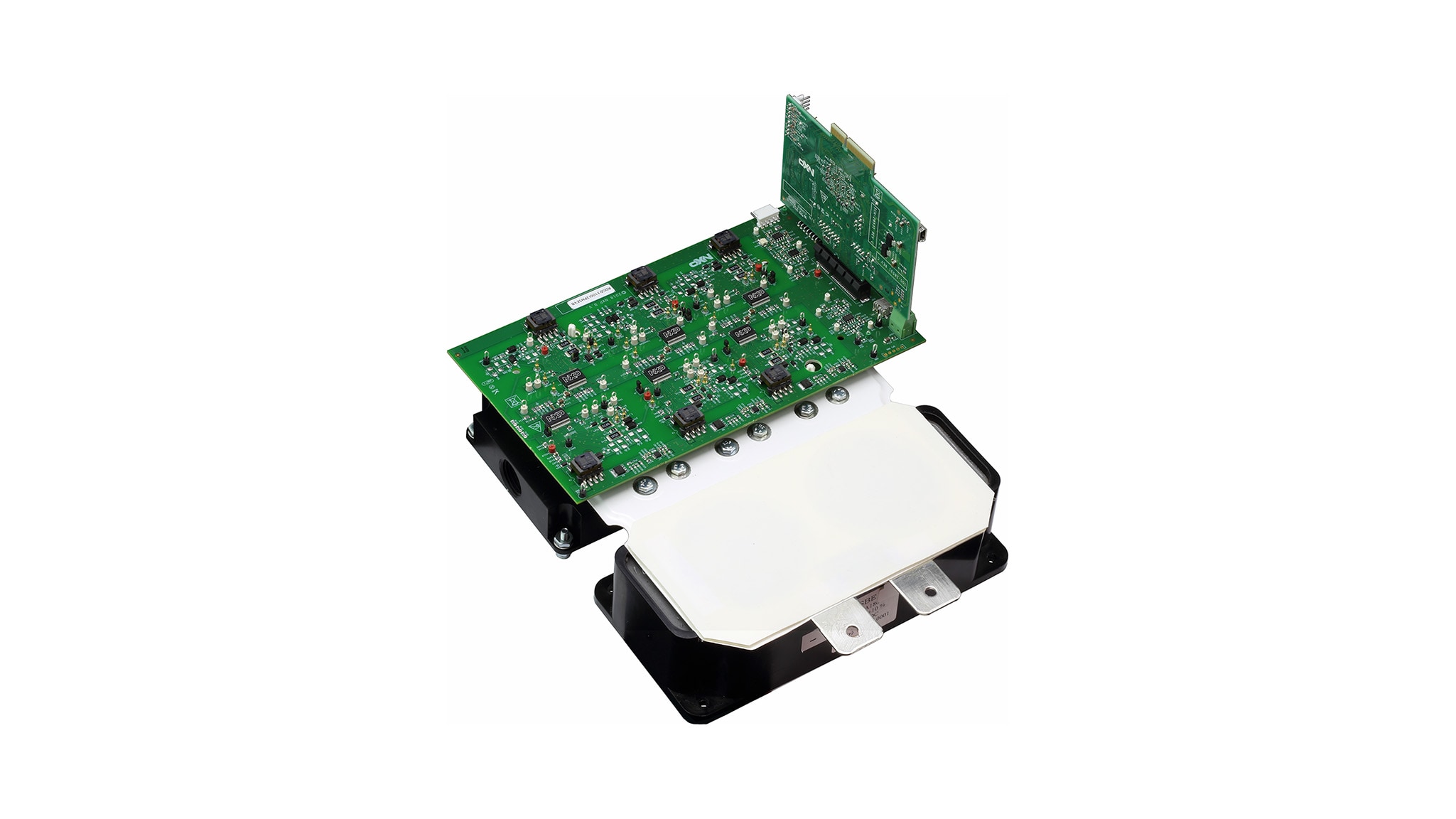

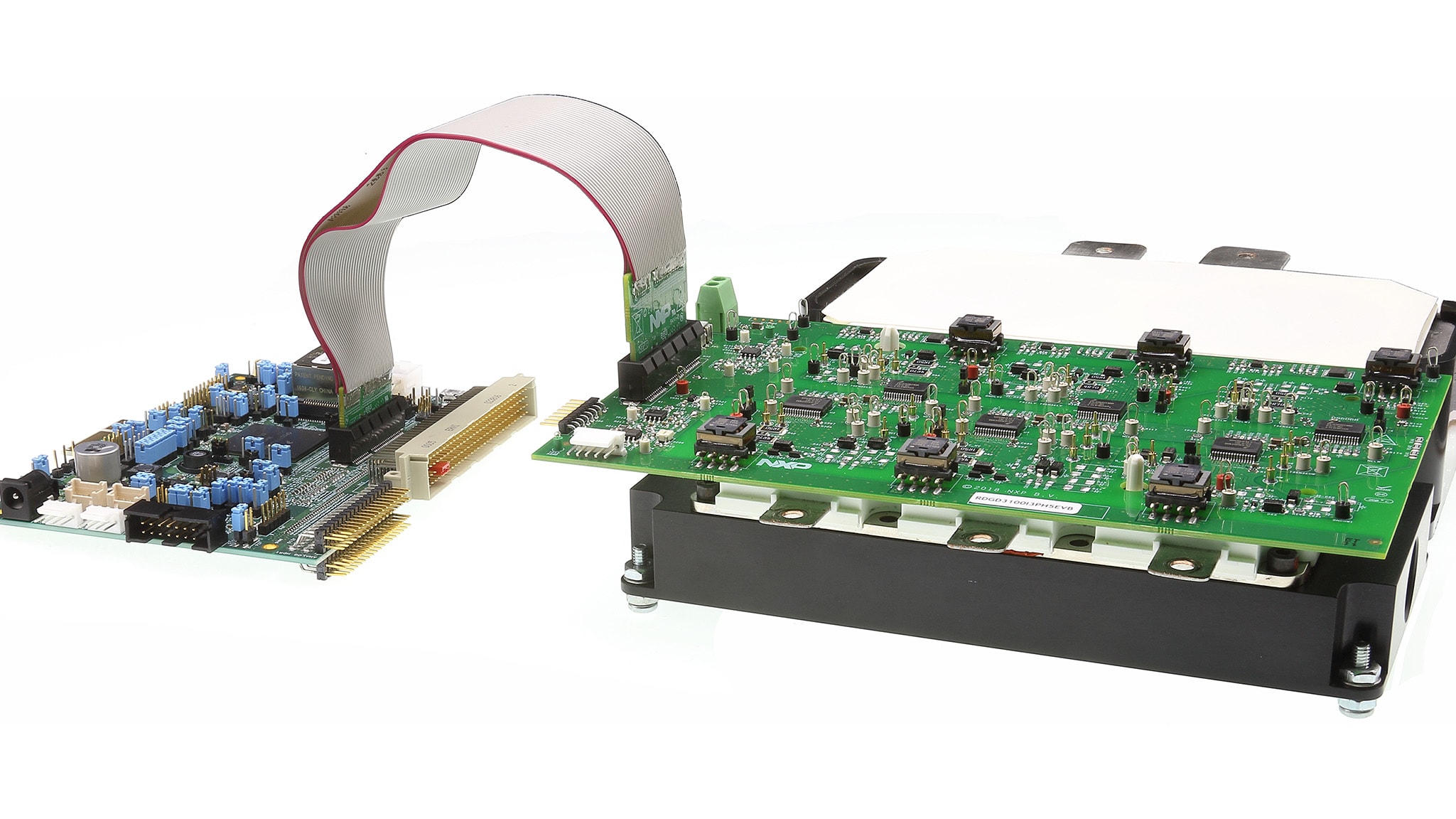

This board supports SPI daisy chain communication for programming and communication with three high-side gate drivers and three low-side gate drivers independently. Included is S32SDEV-CON18 PCIe cable for connecting to MCU controller board MPC5777C-DEVB (not included). This board is designed to be connected to a HybridPACK™ Drive IGBT module footprint (not included).
3-Phase Reference Design for HybridPACK Drive IGBT/SiC module featuring GD3100.
