MPC5777C BMS and Engine Control Development Board

MPC5777C-DEVB Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

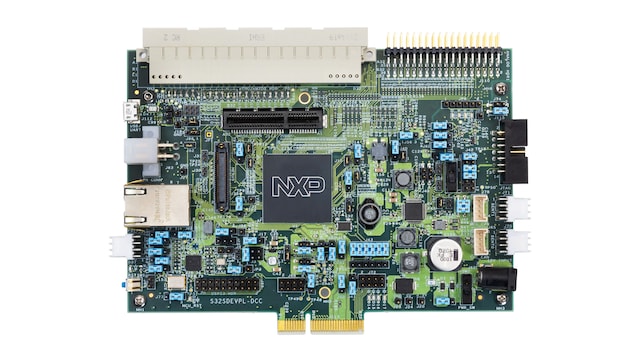

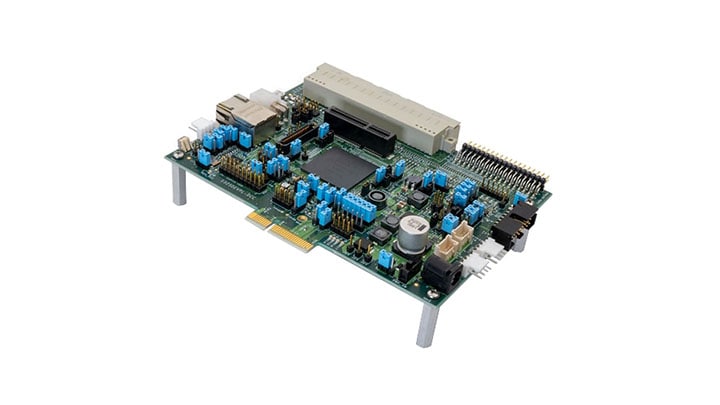

Roll over image to zoom in

The MPC5777C-DEVB is a development board engineered for a range of applications: from traction motors and Battery Management Systems (BMS) to internal combustion engines and transmissions.

Based on the 32-bit Power Architecture® MPC5777C ultra-reliable microcontroller together with the FS65 System Basis Chip (SBC) and the TJA1100 and TJA1145T/FD Ethernet and CAN FD PHY transceivers, the MPC5777C-DEVB facilitates hardware and software development, offering system performance, safety, and security.

Block Diagram

MPC5777C-DEVB

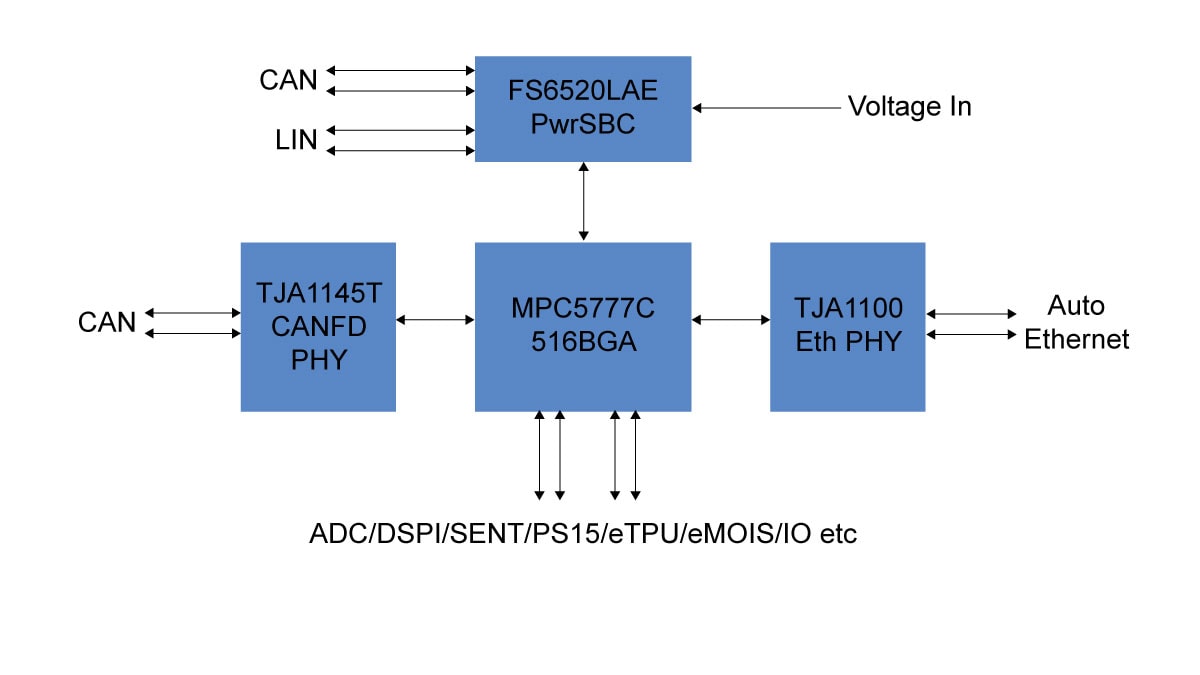

MPC5777C-DEVB Block Diagram
Get diagram PDF

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z7 based MPC5777C

System Basis Chip (SBC)

  • FS6500: Grade 1 and Grade 0 safety power system basis chip with CAN flexible data transceiver

Transceivers

  • TJA1145: High-speed CAN transceiver for partial networking
  • TJA1100HN: IEEE 100BASE-T1 compliant Automotive Ethernet PHY Transceiver
  • Multiple I/O interfaces for complex application designs.
  • 14-pin JTAG/Nexus debug connector
  • 40 MHz onboard clock crystal
