Packet Sniffer/USB Dongle Development Board for Kinetis KW0x

USB-KW019032 Active

Roll over image to zoom in

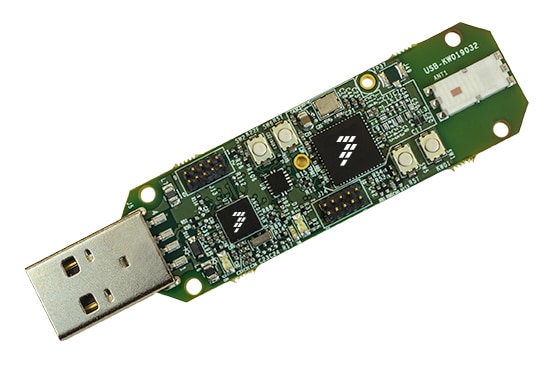

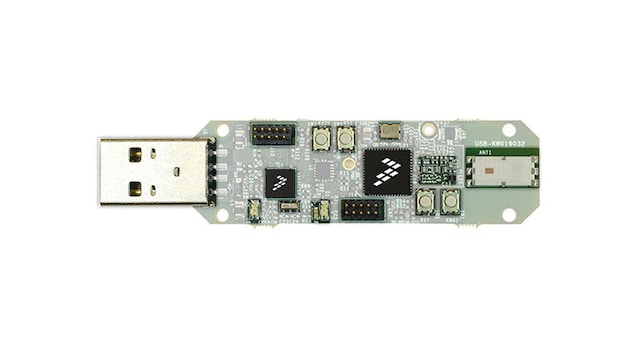

The USB-KW019032 is a development platform enabled by the Kinetis® KW0x in a convenient USB dongle form factor. The USB-KW019032 can be used as an IEEE® 802.15.4 packet sniffer or development board. Packet sniffers are essential for wireless network development allowing over-the-air traffic monitoring.

Powered by the ultra-low-power 48 MHz Arm® Cortex®-M0+ 32-bit core, the Kinetis KW0x family of MCUs embeds a rich set of peripherals such as a high-performance, bi-directional sub-1 GHz radio capable of operating over a wide frequency range of 315, 433, 470, 868, 915, 928 and 960 MHz in the license-free industrial, scientific and medical frequency bands.

Note: this page is made available for historical reference only.

Product Details

Features

Microcontroller

  • 48 MHz Cortex-M0+ CPU core
  • 128 KB flash
  • 16 KB SRAM

Connectivity

  • Integrated 915/863 MHz chip antenna and U.FL footprint for RFIO port

Power Management

  • Programmable output power from –18 dBm to +13 dBm in 1 dB steps

Debug

  • Integrated open-standard serial and debug interface (OpenSDAv2.1)
  • High sensitivity: down to –120 dBm at 1.2 kbit/s

Wireless

  • Wireless Packet Sniffer or End-Node use

Support and Software

    null
  • Programmable FSK, GFSK, MSK, GMSK, and OOK modulations
  • Packet engine with CRC, AES-128 encryption, and 66-byte FIFO

Components

  • LEDs and switches for demonstration, monitoring, and control
  • Minimum number of matching components

Buy Options

USB-KW019032-Image

Click to expand

  • USB-KW019032
    Active

  • USB-KW019032 USB Dongle, Kinetis W MCU, KW01, 48 MHz, 128 KB Flash.

    • USB-KW019032 packet sniffer/dongle
    • Quick start guide
  • For a quantity of 1
Order from distributors
