Differential and Gauge Pressure Sensor (-7 to 7 kPa)

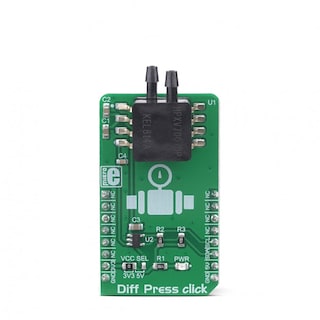

The MPXV7007 series piezoresistive transducer in the small outline package (SOP) is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
The MPXV7007 is designed to measure positive and negative pressure. In addition, with an offset specifically at 2.5 V instead of the conventional 0 V, this new series allows to measure pressure up to 7 kPa through each port for pressure sensing but also for vacuum sensing (refer to the transfer function in the data sheet for more detailed information).
Product Details
Features
Key Features
- 5.0% maximum error Over 0 °C to 85 °C
- Ideally suited for microprocessor or microcontroller-based systems
- Thermoplastic (PPS) surface mount package
- Temperature compensated over -40 °C to 125 °C
- Silicon shear stress strain gauge
- Available in differential and gauge configurations
- Ideal for automotive and non-automotive applications
