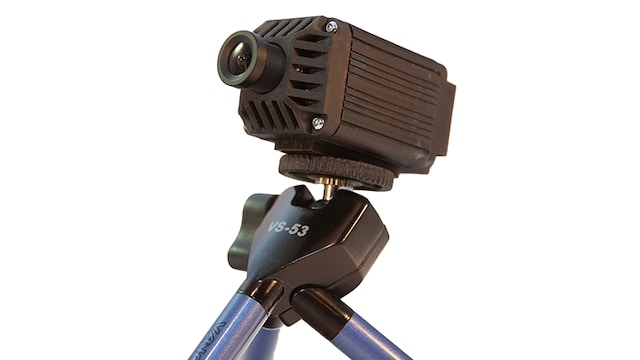

DeepView™ Vision Starter Kit | Micro
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
The DeepView Vision Starter Kit - Micro is a modular, low-cost AI sensor reference design available from Au-Zone Technologies. It is built with production-grade hardware and software components for quickly prototyping, field testing and implementing your next custom vision system.
Integrated with out-of-the-box demo application examples for object detection, classification and tracking, this product can be customized by using eIQ® Toolkit for your own AI model or image data set.
Product Details
Supported Devices
Processors and Microcontrollers
i.MX RT Crossover MCUs
- i.MX-RT1064: i.MX RT1064: Crossover MCU with Arm® Cortex®-M7
Features

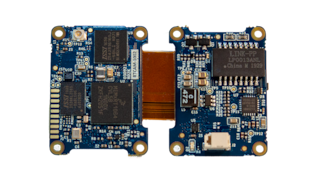

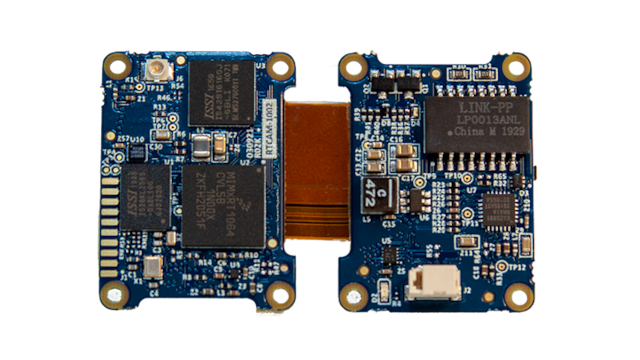

CPU Board
- i.MXRT1064 @528 MHz, 1 MB SRAM, 32 MB HyperFlash, 32 MB DRAM
- 10/100 Ethernet, Wi-Fi 1DX 802.11b/g/n, Power Supply

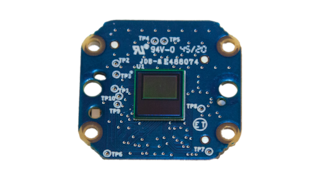

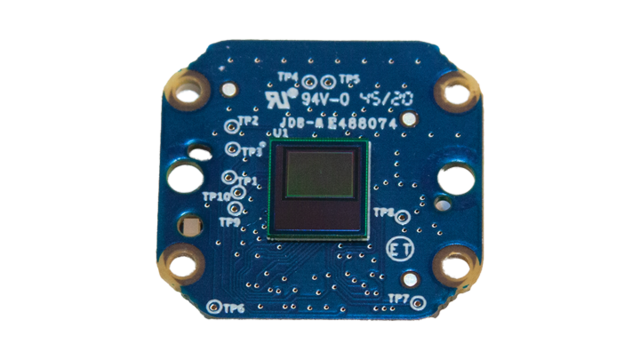

Modular Image Sensors
- OV10626 Sensor WVGA (standard)
- OnSemi MT9M114 (optional)
- AR0144 HD global shutter (optional)

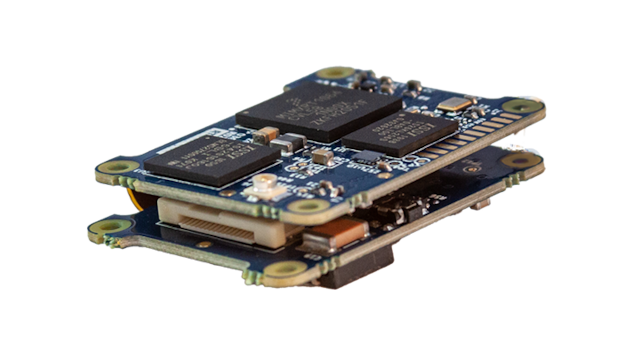

Modular Base /Termination Boards
- 10/100 Wired Ethernet, IX locking connector
- RS485 serial, NanoFit connector
- GPIO for external Sync and Trigger
- WiFi antenna U.FL
- LTE M1 modem (optional)

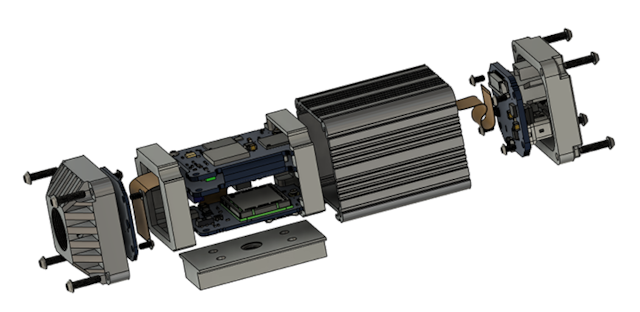

Modular Enclosure
- Industrial enclosure (standard)
- Outdoor IP67 enclosure (optional)
Included Software Enablement
- DeepView MCU Vision Pack
- Production BSP
- Image pipeline and sensor drivers
- Remote model updates
- SDK APIs for customer application integration
Compatible Vision Middleware
Partners
Au-Zone is the gold standard for intelligent vision software. Au-Zone’s product offering includes the DeepView product packs for Neural Network model development and optimization.
