Evaluation Kit for MC34671 Single-Cell Li-Ion / Li-Poly Charger

KIT34671EPEVBE Active

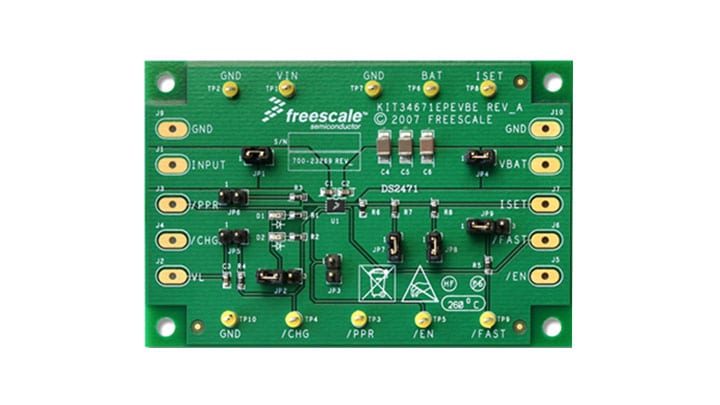

Roll over image to zoom in

This evaluation kit supports the MC34671—a cost-effective, fully integrated battery charger for Li-Ion or Li-Polymer batteries.

Product benefits include:
  • Industry’s flexible Li-ion/Li-polymer charger solution
  • Feature-rich and easily modified to meet the needs of a wide variety of applications
  • Factory-configurable parameters for faster time to market and lower system cost
  • Meets AC/DC adapter standard YD/T 1591-2006 in the Chinese cell phone market
  • Low external component count

Product Details

Supported Devices

Power Management

Battery Chargers

  • MC34671: 600 mA Single-Cell Li-Ion / Li-Polymer Battery Charger

Features

General Specifications

  • No external MOSFET, reverse-blocking diode, or current-sense resistor are required
  • Charge current monitor
  • Charge current thermal foldback

Power Management

  • Guaranteed maximum 600 mA programmable charge current
  • ± 0.7% voltage accuracy over -20 °C to 70 °C
  • ± 5% current accuracy over -40 °C to 85 °C
  • 28 V maximum voltage for the power input with 11 V over-voltage protection threshold
  • 2.6 V minimum input operating voltage
  • Trickle charge for fully discharged batteries

Buy Options

KIT34671EPEVBE-Image

Click to expand

  • KIT34671EPEVBE
    Active

  • Evaluation Kit - MC34671, 600 mA High-input Voltage Charger Single-cell Li-Ion/Li-Polymer Batteries.

    • KIT34671EPEVBE Hardware
    • Quick Reference Guide
  • $102.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
