7 A 2:1 Switched Capacitor Charger for Single Cell Battery

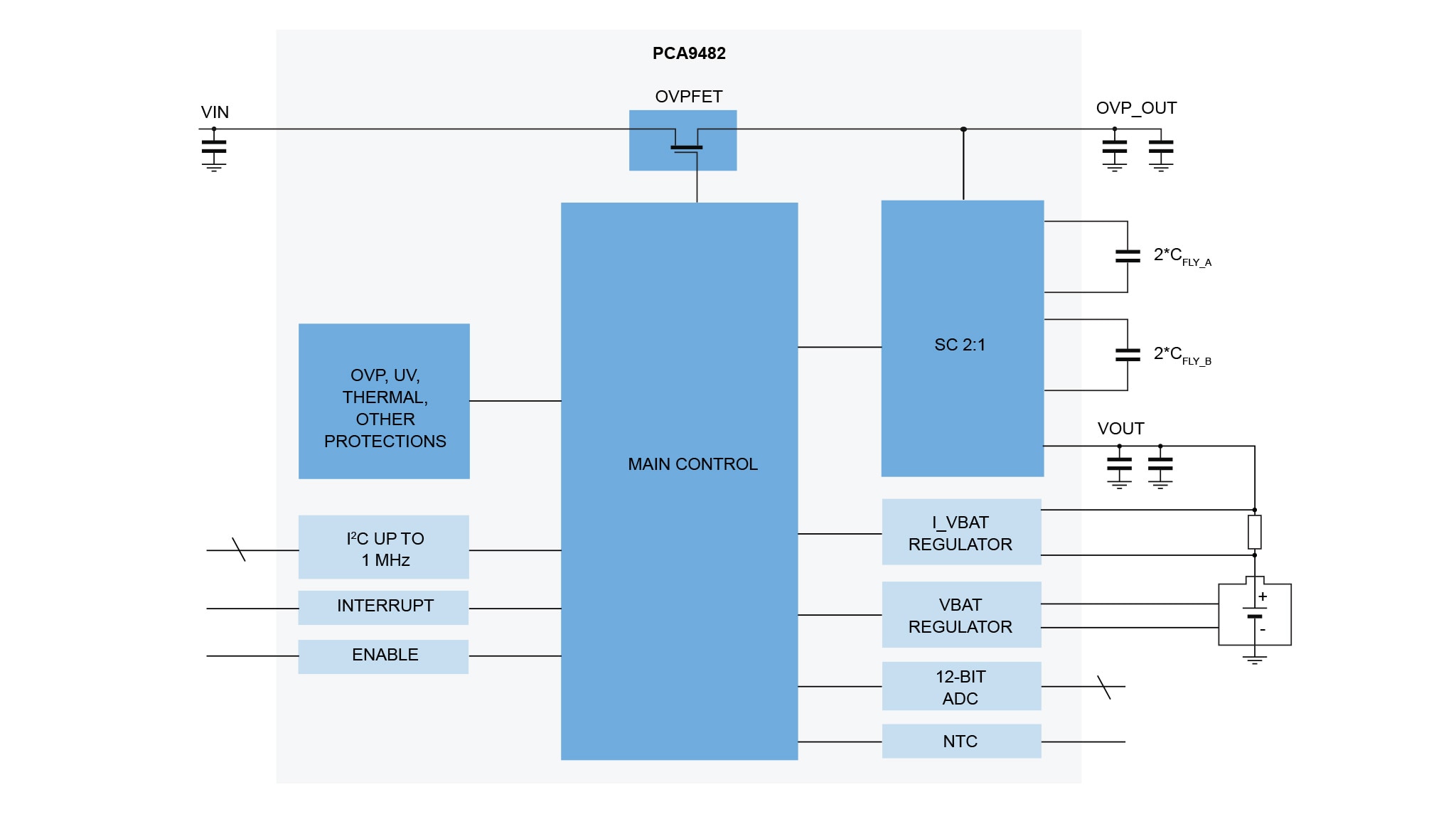

The PCA9482UK is a highly-integrated switched-capacitor converter with an embedded OVPFET, targeted to provide two times the output current for fast charging applications with a 1-cell battery. The device works in 2:1 switching operation with very high efficiency (> 96.5%, at VVOUT = 4 V, IVOUT = 5 A), in 1:2 switching operation or in 1:1 mode with forward and reverse direction.
The chip is offered in 3.02 mm x 2.72 mm, 6 x 7 bumps, 0.4mm pitch WLCSP package.
Product Details
Features
Key Features
- Dual phase switched capacitor for single cell battery
- Multiple operation mode: 2:1, 1:2, forward and reverse 1:1
- 5 V to 10.2 V input voltage
- Max. 7 A output current
- Integrate OVP FET for protection and regulation
Performance
- > 96.5% efficiency at 5 A
Protections
- Over-voltage protection
- Under-voltage protection
- Thermal shutdown
- Short protection at OVP_OUT and flying capacitor during start-up
- Over-current and reverse-current protection
- Watchdog timer
Others
- Leader and Follower for parallel charging
- 8 channels 12-bit ADC
- 1 Mbit/s I²C-bus target interface
Buy/Parametrics
1 result
Include 0 NRND
Part | Order | CAD Model | Status | Device Function | Budgetary Price excluding tax | Output Voltage (V) | Output Current (A) | Battery Charger | Number of Battery Cells | Charge Termination Method | Charge Current Type | Supply Voltage [min] (V) | Supply Voltage [max] (V) | Ambient Operating Temperature (Min to Max) (℃) | Input Voltage (Max) (V) | Additional Features - Analog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | battery chargers | 1K @ US$1.67 | 2.8, 5 | 7 | Li-ion battery, Li-polymer battery | 1 | microcontroller control, protection(OV/UV/OC/RC) | constant charge current | 5 | 10.2 | -40 to 85 | 20 | IVIN/IBAT/VBAT regulation, OC and RC, OV and UV, Thermal SHDN |
