TEA1792TS Greenchip SR controller add-on board

TEA1792DB1074 Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

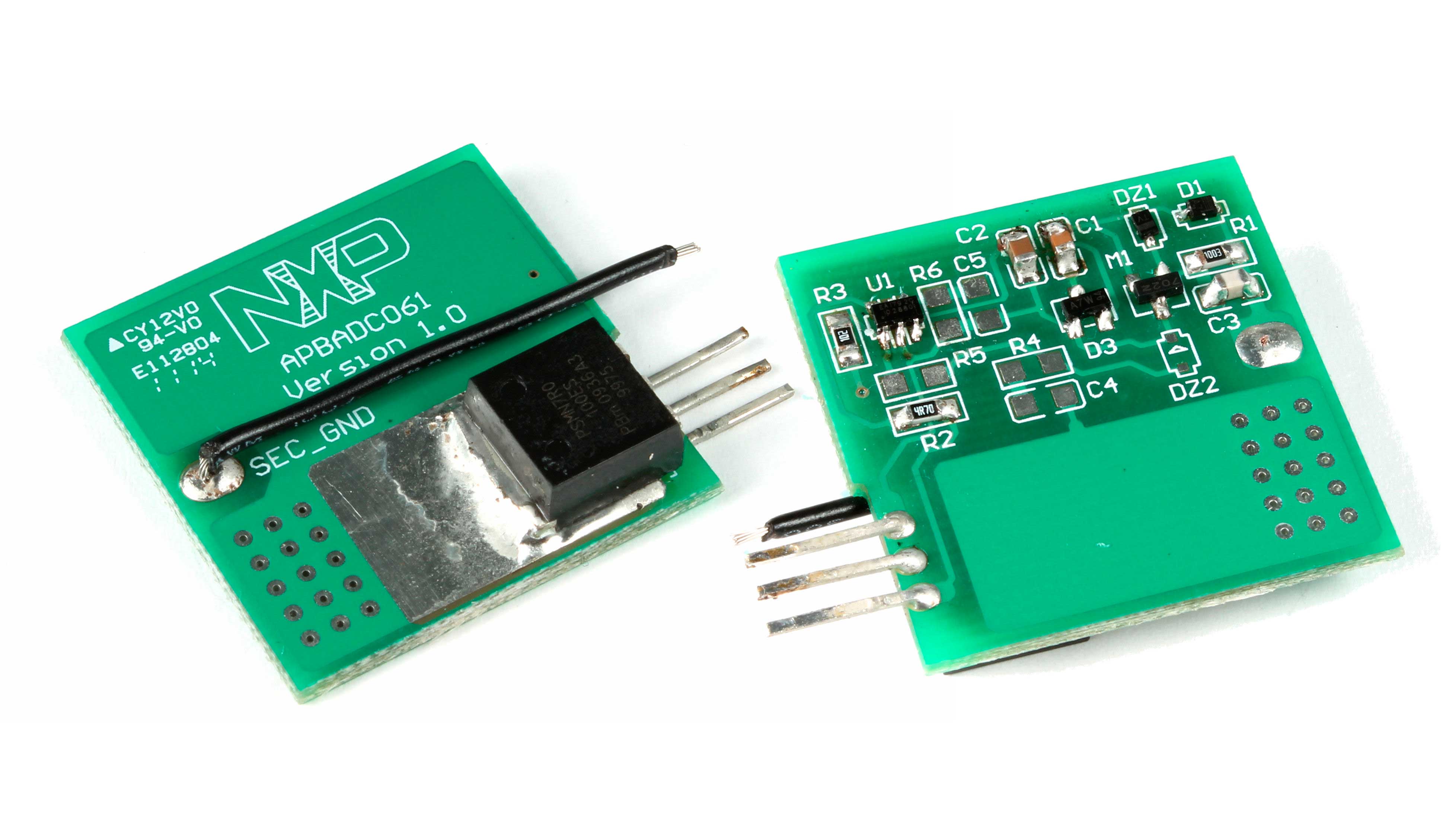

The TEA1792TS add-on board is designed for incorporation into existing flyback power supplies, by replacing the secondary rectifier diode. The add-on board consists of the TEA1792TS SR controller IC, a low-ohmic Mosfet, and a charge pump circuit.

Product Details

Supported Devices

Power Management

Secondary Side Controllers

  • TEA1792AT: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
  • TEA1792ATS: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
  • TEA1792T: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
  • TEA1792TS: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
