240 W Demo Board

TEA2017DB1580

Roll over image to zoom in

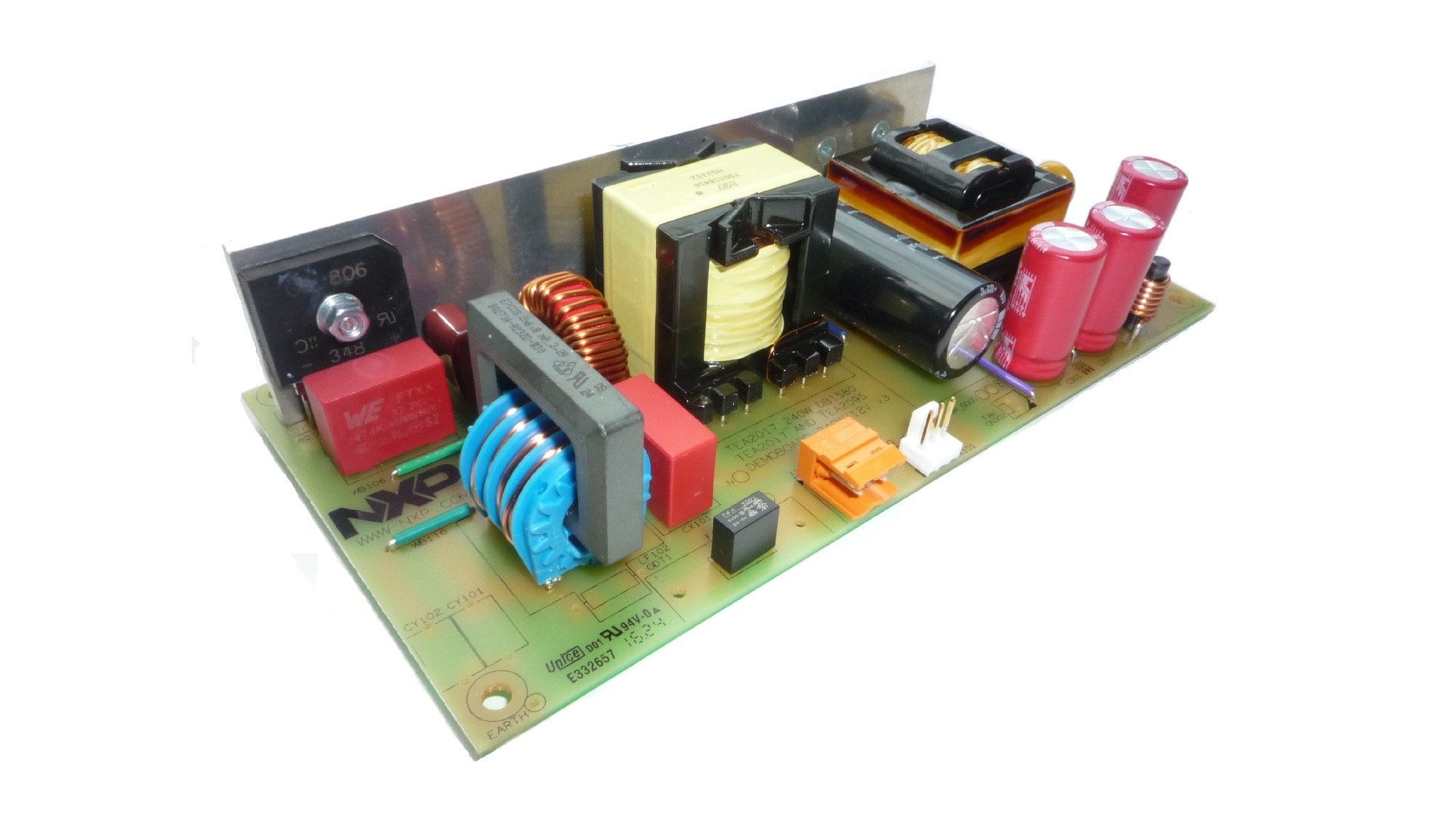

The TEA2017DB1580 is a 240 W demo board built around the TEA2017, which includes both the PFC and LLC controller.

The PFC can be configured to operate in DCM/QR, fixed frequency or multimode (DCM/QR/CCM). The input current is shaped such that an optimum THD/PF is reached. The no-load power consumption is below 100 mW and the efficiency can meet the efficiency regulations of Energy Star, the Department of Energy (DoE), the Ecodesign Directive of the European Union, the European Code of Conduct and other guidelines.

The board is on-the-fly digital configurable, which means that the properties of the TEA2017 can be adapted while the circuit is working.

Product Details

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA2017: Digital Configurable LLC and Multimode PFC Controller
  • TEA6017AT: Digital Configurable LLC and Multimode PFC Controller

Secondary Side Controllers

  • TEA2095: GreenChip Dual LLC SR Switching Controller

Features

Distinctive Features

  • Output 12 V/20 A
  • Input voltage range 90 V-264 V
  • DCM/QR/CCM fixed frequency mode PFC controller
  • Excellent PF and THD performance
  • Integrated X-capacitor discharge without additional external components
  • Power good function
  • Digital configurable
  • Synchronous rectifier at secondary side

Green Features

  • No-load power < 100 mW
  • High efficiency from low load to high load

Protection Features

  • Overpower protection (OPP)
  • Brown-in/brown-out protection
  • Overcurrent protection (OCP)
  • Capacitive mode regulation (CMR)
  • Accurate overvoltage protection (OVP)
  • Inrush current protection (ICP)
  • Supply undervoltage protection (UVP)
  • Internal and external overtemperature protection (OTP)
  • Independently configurable levels and timers
  • Many protections can independently be set to be latched, safe restart or latched after several attempts to restart

Buy Options

TEA2017DB1580-Image

Click to expand

  • TEA2017DB1580
    Active

  • 240 W Demo Board.

  • Kit contains

    • TEA2017DB1580 demo board
  • $315.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 18
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
