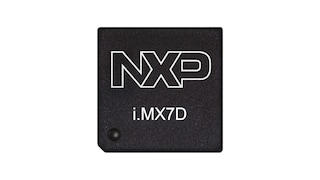

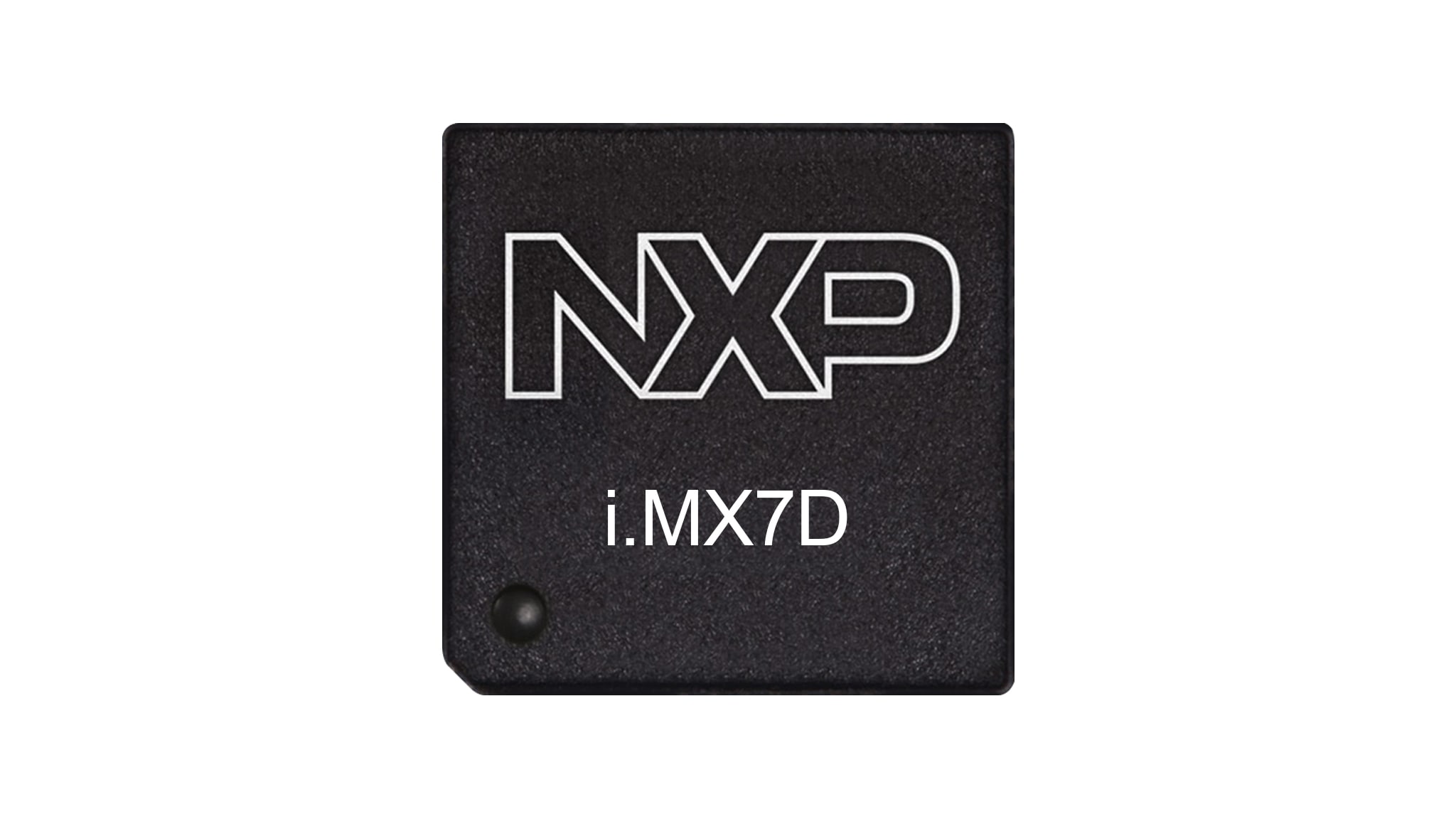

i.MX 7Dual Processors - Heterogeneous Processing with Dual Arm® Cortex®-A7 Cores and Cortex-M4 Core

i.MX7D Active

Click over video to play

The i.MX 7Dual family of processors represents our latest achievement in high-performance processing for low-power requirements with a high degree of functional integration. These processors are targeted towards the growing market of connected devices. The i.MX 7Dual family of processors features our advanced implementation of the Arm® Cortex®-A7 core, which operates at speeds of up to 1.2 GHz, as well as the Arm Cortex-M4 core. The i.MX 7Dual family supports multiple memory types including 16/32-bit DDR3L/LPDDR2/LPDDR3-1066, Quad SPI memory, NAND, eMMC and NOR. Several high-speed connectivity connections include Gigabit Ethernet with AVB, PCIe and USB. Both parallel and serial Display and Camera interfaces are provided, as well as a way to directly connect to the Electrophoretic Displays (EPD).

i.MX 7 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Block Diagram

i.MX 7Dual Processors

i.MX 7Dual Processors
Get diagram PDF

Features

  • Heterogeneous Multicore Processing Architecture, up to Dual Cortex-A7 and Cortex-M4 configuration
  • External Memory Support: DDR3/DDR3L/LPDDR2/LPDDR3
  • Flash Memory Support: NAND (60-bit ECC), Managed NAND (eMMC, eSD)
  • Electrophoretic Display (EPD) Controller
  • Dual Gigabit ETH controllers supporting AVB
  • Parallel RGB and MIPI DSI Display Interfaces
  • Parallel and MIPI CSI Camera Interfaces
  • 256 KB SRAM
  • Quad SPI
  • Communication Ports (I²C, SAI, UART, SPI, SDIO, USB, PCIe)
