Fault-Tolerant CAN Transceiver

TJA1055T Active

Roll over image to zoom in

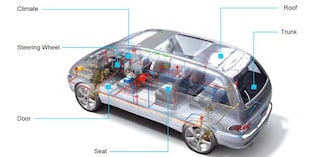

The TJA1055 is the interface between the protocol controller and the physical bus wires in a Controller Area Network (CAN). It is primarily intended for low-speed applications of up to 125 kBd in passenger cars. The device provides differential receive and transmit capability but will switch to single-wire transmitter and/or receiver in error conditions. Key highlights of the TJA1055.

  • Improved ElectroStatic Discharge (ESD) performance
  • Lower current consumption in sleep mode
  • Wake-up signaling on RXD and ERR without VCC active
  • 3 V interfacing with microcontroller possible with TJA1055T/3

Block Diagram

TJA1055 Block Diagram

TJA1055 Block Diagram
Get diagram PDF

Features

Key Features

  • Baud rate up to 125 kBd
  • Up to 32 nodes can be connected
  • Supports unshielded bus wires
  • Very good EMC performance
  • Fully integrated receiver filters
  • Transmit Data (TxD) dominant time-out function

Bus failure management

  • Supports single-wire transmission modes with ground offset voltages up to 1.5 V
  • Automatic switching to single-wire mode in the event of bus failures.
  • Automatic reset to differential mode if bus failure is removed
  • Full wake-up capability during failure modes

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Recommended Orderable Part Number

MCU I/O Interface (V)

Low Power Modes

Data Rate [max] kbps

Package Type

CAN Channels

Product Category

Supply Voltage [Min to Max] (V)

Data Rate [min] kbps

Voltage on bus pins [Min-Max] (V)

VIO Option Available

GPIO

Supported standards

Product Application

TJA1055T
Data Sheet

Active

TJA1055T/2Z, TJA1055T/3/2Z

3.3, 5.0

Sleep Mode, Standby Mode

125.0

SO14

1

Fault Tolerant CAN

4.75 to 5.25

40.0

-58 to 58

Y

14

ISO-11898-3

Automotive, Industrial
