MPC562 Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

The MPC562 is a high-speed 32-bit control unit that combines high-performance data manipulation capabilities with powerful peripheral subsystems. This MCU is built up from standard modules that interface through a common intermodule bus (IMB).

The MPC562 is equipped with code compression designed to reduce program size by up to 50 percent Compressed code may also improve performance when using external memories.

Block Diagram

MPC563

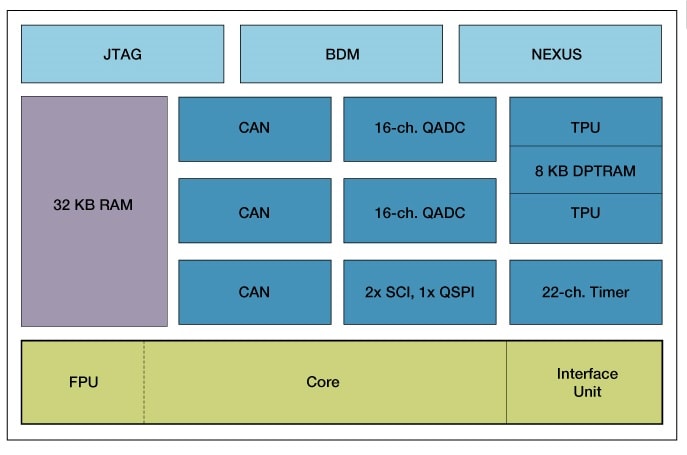

MPC562 Block Diagram
Get diagram PDF

Features

  • Precise exception model
  • Floating point
  • Extensive system development support
  • On-chip watchpoints and breakpoints
  • Background debug mode (BDM)
  • IEEE®-ISTO 5001-1999 NEXUS class 3 debug interface
  • True 5-volt I/O
  • Two time processing units (TPU3) with 8 KB DPTRAM
  • 22-channel MIOS timer (MIOS14)
  • Two queued analog-to-digital converter modules (QADC64_A, QADC64_B) providing a total of 32 analog channels
  • Three TouCAN modules (TOUCAN_A, TOUCAN_B, TOUCAN_C)
  • One queued serial module with one queued SPI and two SCIs (QSMCM) 32 KB static RAM (CALRAM)

Buy/Parametrics

3 results

Exclude 3 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

SPCZ562MZPDH56
Data Sheet

Not Recommended for New Designs

BGA388

388

SCCZ561DR2
Data Sheet

End of Life

—

—

SCCZ562C
Data Sheet

End of Life

—

—
