8-Bit MCU with Integrated Vreg, H-B, HSS, LIN Phy

MM908E621 End of Life

The NXP® MM908E621 is an integrated single package solution that includes a high performance HC08 MCU with a SMARTMOS® analog control IC.

  • The HC08 includes flash memory, a timer, enhanced serial communications interface, a 10 bit analog-to-digital converter, internal serial peripheral interface, and an internal clock generator module
  • The single package solution, together with LIN, provides optimal application performance adjustments and space saving PCB design
  • Well-suited for the control of automotive high end mirrors

Product Details

Block Diagram

MM908E621

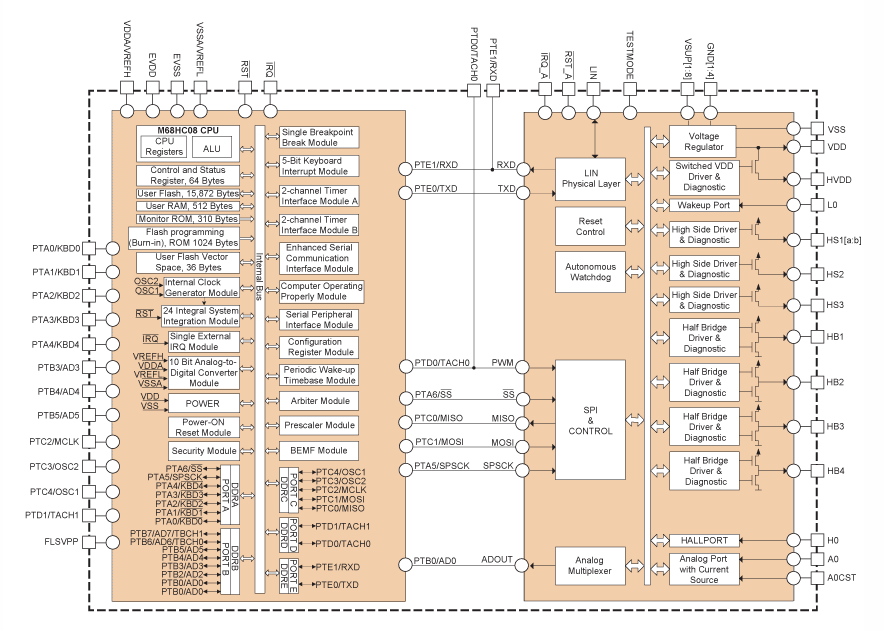

MM908E621 Block Diagram
Get diagram PDF

Features

Key Features

  • High performance M68HC908EY16 core
  • 16 KB of on-chip flash memory, 512 B of RAM
  • Two 16-bit, two-channel timers
  • LIN physical layer interface
  • Autonomous MCU watchdog / MCU supervision
  • One analog input with switchable current source
  • Four low RDS(ON) half-bridge outputs
  • Three low RDS(ON) high side outputs
  • Wake-up and 2 or 3-pin Hall effect sensor input
  • 12 microcontroller I/Os

Buy/Parametrics

1 result

Exclude 1 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Package Type

Package Termination Count

MM908E621ACPEK
Data Sheet

End of Life

1K @ US$5.08

HSOP54

54
