8-Bit MCU with Integrated Vreg, Stepper, LIN Phy

MM908E626 Active

The NXP® MM908E626 is an integrated single package solution that includes a high performance HC08 MCU with a SMARTMOS® analog control IC.

  • The HC08 includes flash memory, a timer, enhanced serial communications interface, an ADC, internal SPI, and an internal clock generator module
  • The analog control die provides fully protected H-Bridge outputs, voltage regulator, autonomous watchdog, and local interconnect network (LIN) physical layer
  • The single package solution, together with LIN, provides optimal application performance adjustments and space-saving PCB design
  • Ideal for the control of automotive stepper applications like climate control and light-leveling

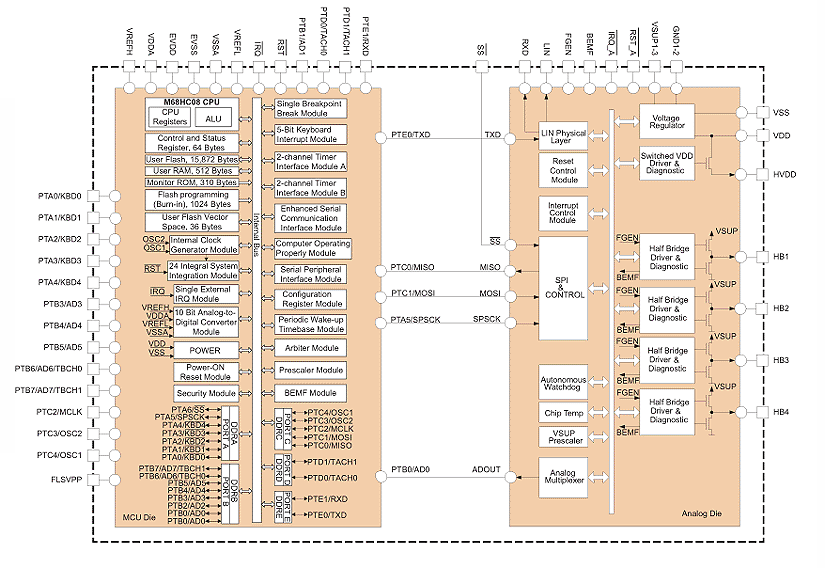

Block Diagram

MM908E626

MM908E626 Block Diagram
Get diagram PDF

Product Longevity Program

Features

Key Features

  • High performance M68HC08EY16 core
  • 16 KB of on-chip flash memory
  • 512 B of RAM
  • Internal clock generation module
  • Two 16-bit, two-channel timers
  • 10-bit analog-to-digital converter
  • Four low RDS(ON) half-bridge outputs
  • 13 microcontroller I/Os

Product Longevity Program
