MCX N23x Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security
Package

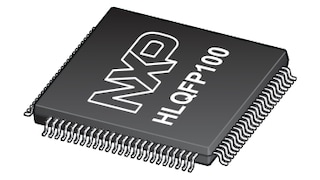

HLQFP100: HLQFP100, plastic, thermal enhanced low profile quad flat package; 100 terminals; 0.5 mm pitch; 14 mm x 14 mm x 1.5 mm body
Buy Options
MCXN236VKLT
Active
12NC: 935464706557
Details
Order
Operating Features
| Parameter | Value |
|---|---|
Number of pins | 100 |
Package Style | HLQFP |
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | RHF Indicator | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|---|
MCXN236VKLT(935464706557) | Yes | Yes Certificate Of Analysis (CoA) | Yes |  | REACH SVHC | 661.2058 |
Quality
| Part/12NC | Safe Assure Functional Safety | Moisture Sensitivity Level (MSL) | Peak Package Body Temperature (PPT) (C°) | Maximum Time at Peak Temperatures (s) | |||
|---|---|---|---|---|---|---|---|
| Lead Free Soldering | Lead Free Soldering | Lead Free Soldering | |||||
MCXN236VKLT (935464706557) | No | 3 | 260 | 40 | |||
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) |
|---|---|---|
MCXN236VKLT (935464706557) | 854231 | 5A992C |
More about MCX-N23X
The MCX N23x is based on a high-performance Arm® Cortex®-M33 running up to 150 MHz, with 1MB of Flash, 352 KB ECC RAM and SmartDMA. The MCX N23x is optimized for cost, memory and system performance and offers a single core option with efficient distribution of workloads to the analog and digital peripherals.
The EdgeLock Secure Enclave on the MCX N23x is a self-contained, on-die hardware security subsystem that has its own dedicated security core, internal ROM, secure RAM and it supports state-of-the-art side-channel attack-resilient symmetric and asymmetric crypto accelerators and hashing functions for security services.
The MCX N23x devices are supported by the MCUXpresso Developer Experience to optimize, ease and help accelerate embedded system development.
